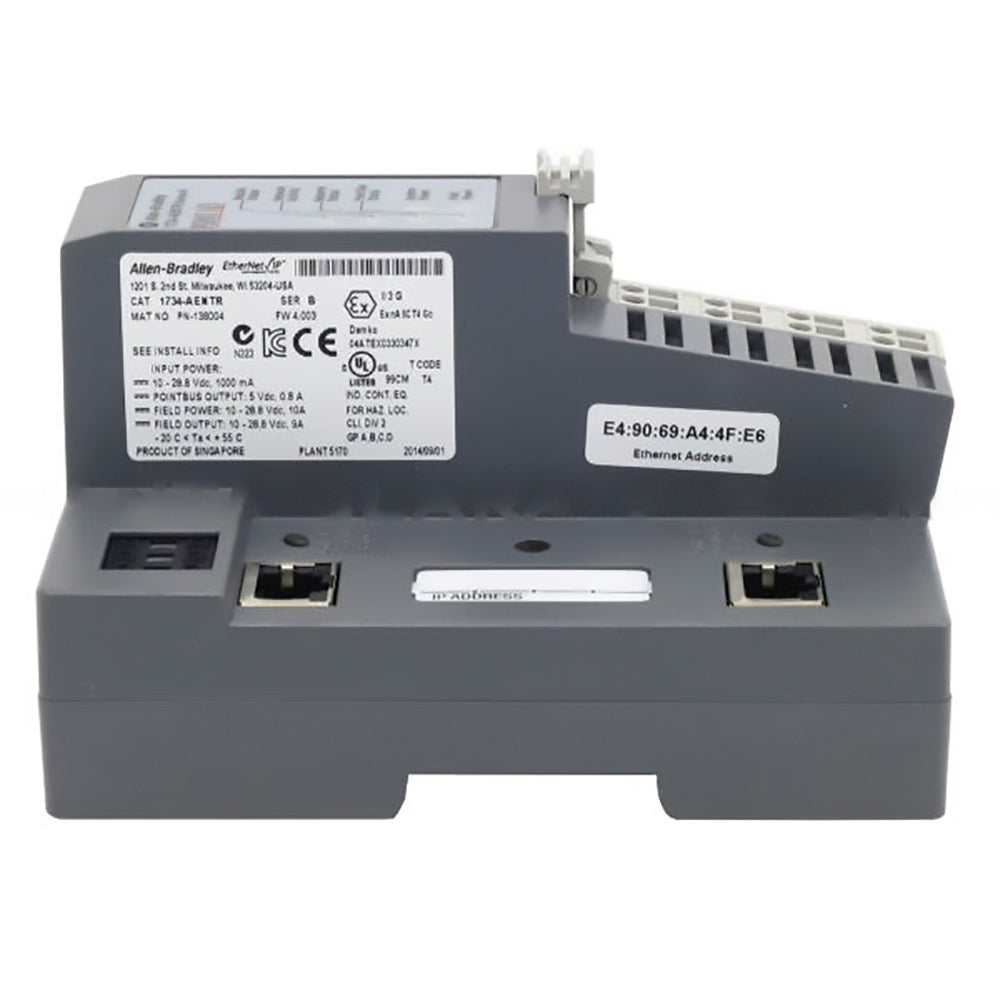

1734-AENTR Allen Bradley Ethernet Adapter Module
1734-AENTR Allen Bradley Ethernet Adapter Module
1734-AENTR Allen Bradley Ethernet Adapter Module
1734-AENTR Allen Bradley Ethernet Adapter Module
1734-AENTR Allen Bradley Ethernet Adapter Module
1734-AENTR Allen Bradley Ethernet Adapter Module
1734-AENTR Allen Bradley Ethernet Adapter Module
$344.47
Quantity
ADD TO CART
BUY NOW

Checkout Securely with

30 days free return

Quick Details

  • Part Number1734-AENTR
  • Enclosure type rating: None (open-style)
  • Input voltage rating: 24V DC nom 10?28.8V DC range
  • Field side power requirements: 24V DC @ 400 mA nom, 12V DC @ 800 mA nom, 10?28.8V DC, 1000 mA max
  • Inrush current: 6 A max for 10 ms
  • Input overvoltage protection: Reverse polarity protected
  • PointBus output current: 0.8A max @ 5V DC
  • Interruption: Output voltage stays within specifications when input drops out for 10 ms at 10V with max load
  • Power consumption: 10.4 W max @ 28.8V DC
  • Power dissipation: 6.3 W max @ 28.8V DC
  • Thermal dissipation: 21.5 BTU/hr max @ 28.8V DC
  • Isolation voltage: 50V (continuous)
  • Field power supply: 10?28.8V DC, 10A max
  • Field power output: 10?28.8V DC, 9A max
  • Module input: 10?28.8V DC, 1000 mA
  • PointBus output: 5V DC, 0.8A max

Packaging & Delivery

  • Selling Units: Single item
  • Single package size: 76.2 x 73.0 x 133.4 cm
  • Single gross weight: 0.280 kg
  • Package Type: Carton
  • Lead Time:
Quantity(Units) 1 - 10 >10
Est. Time(days) 3-5 To be negotiated

Quick Details

  • Part Number1734-AENTR
  • Enclosure type rating: None (open-style)
  • Input voltage rating: 24V DC nom 10?28.8V DC range
  • Field side power requirements: 24V DC @ 400 mA nom, 12V DC @ 800 mA nom, 10?28.8V DC, 1000 mA max
  • Inrush current: 6 A max for 10 ms
  • Input overvoltage protection: Reverse polarity protected
  • PointBus output current: 0.8A max @ 5V DC
  • Interruption: Output voltage stays within specifications when input drops out for 10 ms at 10V with max load
  • Power consumption: 10.4 W max @ 28.8V DC
  • Power dissipation: 6.3 W max @ 28.8V DC
  • Thermal dissipation: 21.5 BTU/hr max @ 28.8V DC
  • Isolation voltage: 50V (continuous)
  • Field power supply: 10?28.8V DC, 10A max
  • Field power output: 10?28.8V DC, 9A max
  • Module input: 10?28.8V DC, 1000 mA
  • PointBus output: 5V DC, 0.8A max

Packaging & Delivery

  • Selling Units: Single item
  • Single package size: 76.2 x 73.0 x 133.4 cm
  • Single gross weight: 0.280 kg
  • Package Type: Carton
  • Lead Time:
Quantity(Units) 1 - 10 >10
Est. Time(days) 3-5 To be negotiated
