Manufacturer |
Rockwell Automation |
Module Location |
1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assembly |
Keyswitch position |
3 |
Enclosure type rating |
None (open-style) |
Dimensions |
56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.) |
Power Dissipation |
0.6 W @ 28.8V DC |
Current Draw |
75 mA @5V dc |
Input update rate per module |
120 ms @ Notch = 50 Hz 100 ms @ Notch = 60 Hz (default) 24 ms @ Notch = 250 Hz 12 ms @ Notch = 500 Hz |
Input step response (per channel) |
80 ms @ Notch = 50 Hz 70 ms @ Notch = 60 Hz (default) 16 ms @ Notch = 250 Hz 8 ms @ Notch = 500 Hz |
Absolute Accuracy |
0.1% Full Scale @ 25 Deg. Celsius |
Output signal |
0-20 mA; 4-20 mA |
No. of outputs |
Two (2) Single-ended, non-isolated channels |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

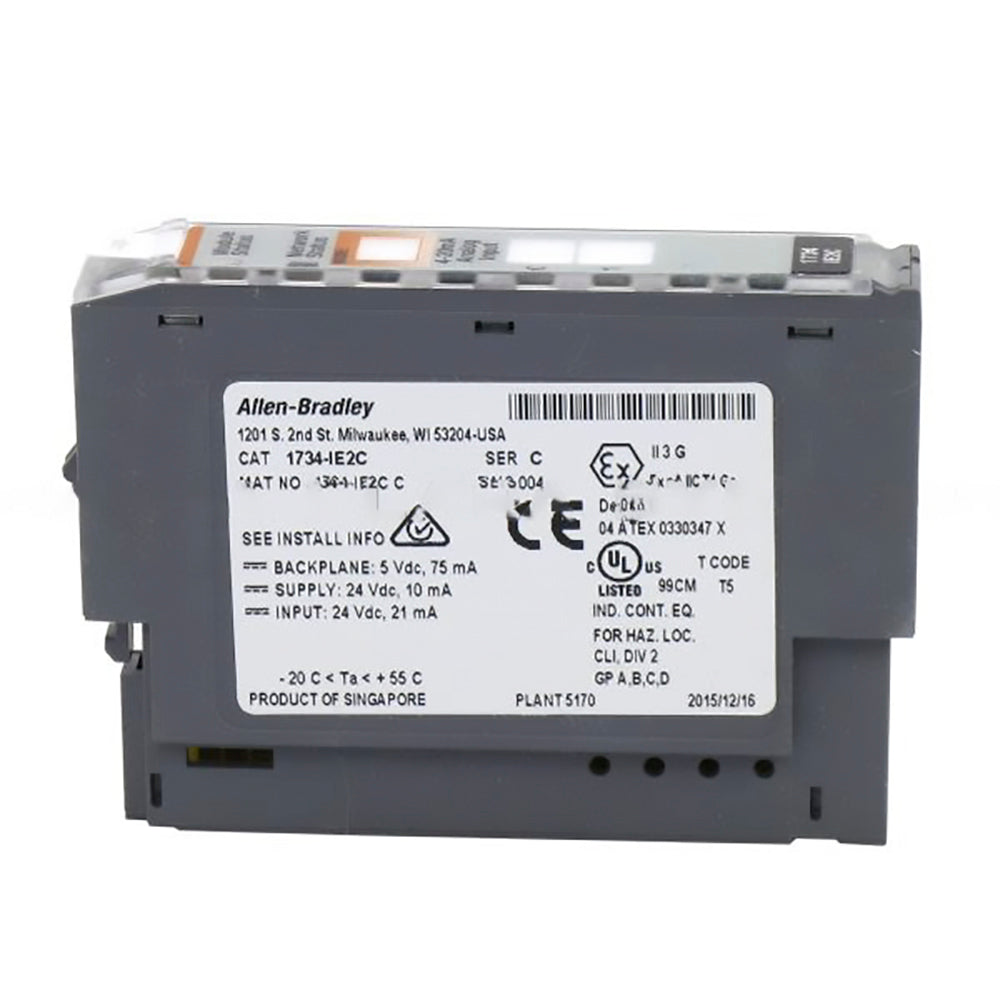

1734-IE2C |
Series |
POINT I/O |
Module Type |
Analog Input Module |
Resolution |
16 bits – over 0...21 mA 0.32 μA/cnt |
Inputs |
2-Point |
Conversion Type |
Delta Sigma |
Calibration |
Factory Calibrated |
Max Overload |
Fault Protected 28.8 Volts DC |
Enclosure Type |
Open |
Data Format |
Signed Integer |
Voltage |
10 to 28.8 Volts DC |
Current |
10 mA |
UPC |
10612598205230 |
