| Manufacturer | Rockwell Automation |
| Module Location | 1734-TB or 1734-TBS wiring base assembly |
| Keyswitch position | 1 |
| Enclosure type rating | None (open-style) |
| Weight, approx. | 35.4 g (1.25 oz) |
| Dimensions | 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.) |
| Output Signal delay | 0.1 ms |
| Output Current per module, max. | 3:00 AM |
| Output Current per channel, nom. | 1:00 AM |
| Output Voltage range | 10-28.8VDC |
| No. of outputs | 8; Sourcing output |
| Module Status indicators | 2 green/red, module / network status |
| Brand | Allen-Bradley |
| Input status indicators | 8 yellow, logic side |

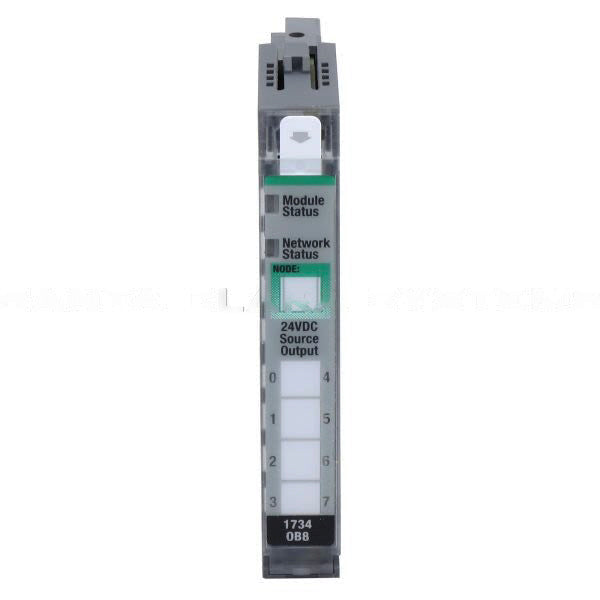

| Part Number/Catalog No. | 1734-OB8 |
| Series | POINT I/O |
| Module Type | Digital DC Sourcing Output |
| Output Voltage | 24 Volts DC |
| POINTBus Current | 75 mA |
| Power Dissipation | 2.0 Watt/6.8 BTU/hour |
| Outputs | 8 |
| Electronically Protected | Yes |
| Output Current | 3 amps/module |
| Thermal Dissipation | 6.8 BTU/hour |
| UPC | 10612598310279 |
