Manufacturer |
Rockwell Automation |
Brand |
Allen-Bradley |
Part Number/Catalog No. |
1756-CN2R |
Brand: |
Allen-Bradley |
Product Description: |

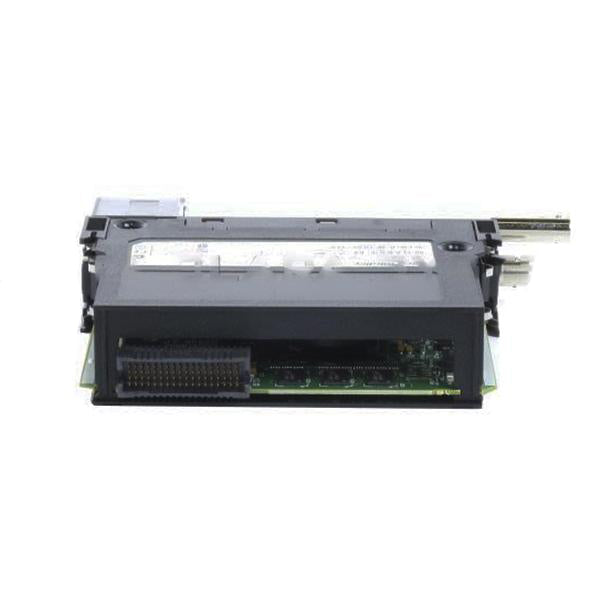

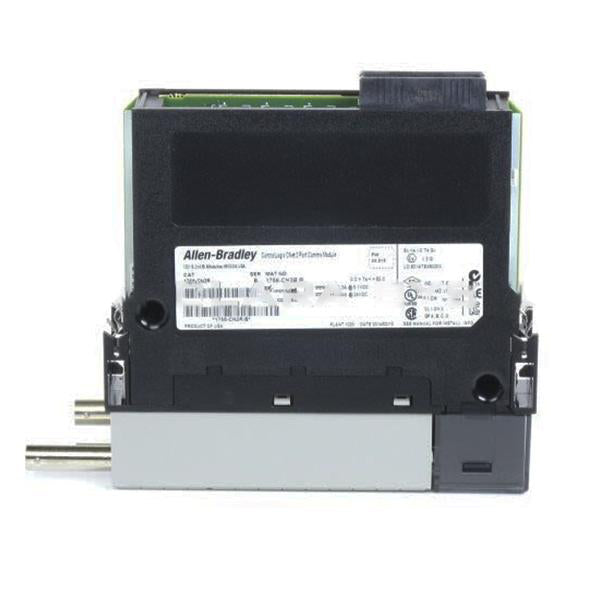

ControlNet communication module |
Module Type |
Bridge Module |
1756-CN2R |
Series |
Maximum Nodes |
99 |
Part Number: |
1756-CN2R |
ControlLogix |
Module Type |
Maximum Connections |
131 |
ControlNet communication module |
Location |
Chassis |
Backplane Current (5.1 Volts DC) |
Communication Port: |
Two (2) ControlNet; One (1) USB |
ControlNet Communication Rate |
5 megabits-second |
1300 mA |
Backplane Current (24 Volts DC) |
ControlNet Data Transfer speed: |
5 Mbps |
Configuration |
Redundant |
Input Current |
1300 milliamps at 5.1 Volts DC, 3 milliamps at 24 Volts DC |
3 mA |
Isolation Voltage |
USB Data Transfer rate: |
12 Mbps |
30 Volts Continuous |
Power Dissipation (Max) |
Mounting: |
Any 1756 Chassis |
Thermal Dissipation |
22.9 BTU per Hour |
Compatible Power Supply (Standard): |
1756-PA72/C, 1756-PA75/B, 1756-PB72/C, 1756-PB75/B, 1756-PC75/B, 1756-PH75/B |
6.7 Watts |
Enclosure |
Power Dissipation |
6.7 Watts |
Open Type |
Thermal Dissipation |
Compatible Power Supply (Redundant): |
1756-PA75R, 1756-PB75R, 1756-PSCA2 |
Slot width |
1 |
22.9 BTU/hr |
Communication Cable |
Weight |
0.64 pounds (0.293 kilograms) |
Compatible Chassis: |
1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 |
1786-RG6 quad shield RG6 coaxial cable |
Dimensions |
UPC |
10612598324436 |
