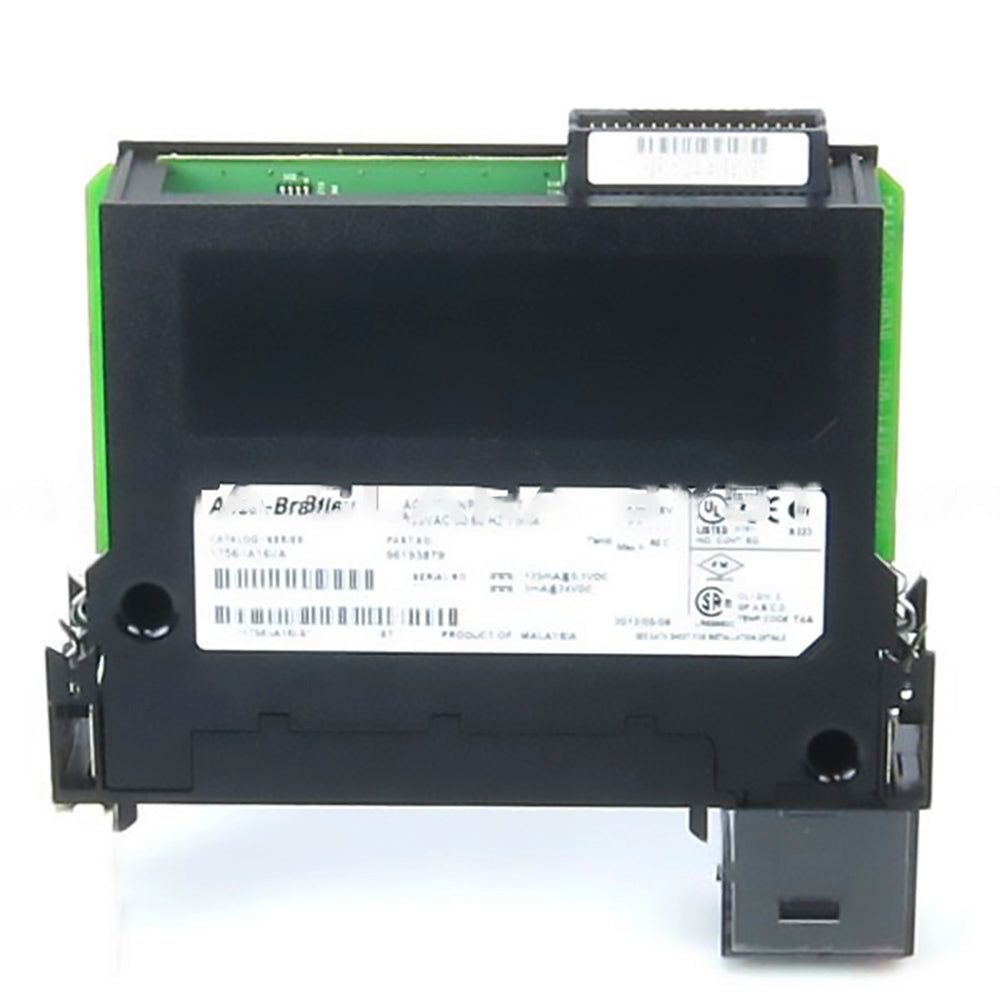

1756-IA16I Allen Bradley Input Module ControlLogix
$402.28
Quantity
ADD TO CART
BUY NOW

Checkout Securely with

30 days free return

1756-IA16I Allen Bradley Input Module ControlLogix

Enclosure type: None (open-style)

Inputs: 16 individually isolated

Voltage category: 120V AC 50/60 Hz

Operating voltage range: 79?132V AC, 47?63 Hz

Current draw @ 5.1V: 125 mA

Current draw @ 24V: 3 mA

Total backplane power: 0.71 W

Power dissipation, max: 4.9 W @ 60 C (140 F)

Thermal dissipation: 16.71 BTU/hr

Off-state voltage, max: 20V

Off-state current, max: 2.5 mA

On-state current, min: 5 mA @ 79V AC, 47?63 Hz

On-state current, max: 15 mA @ 132V AC, 47?63 Hz

Inrush current, max: 250 mA

Isolation voltage: 125V (continuous), basic insulation type, inputs-to-backplane, and input-to-input

1756-IA16I Allen Bradley Input Module ControlLogix

Enclosure type: None (open-style)

Inputs: 16 individually isolated

Voltage category: 120V AC 50/60 Hz

Operating voltage range: 79?132V AC, 47?63 Hz

Current draw @ 5.1V: 125 mA

Current draw @ 24V: 3 mA

Total backplane power: 0.71 W

Power dissipation, max: 4.9 W @ 60 C (140 F)

Thermal dissipation: 16.71 BTU/hr

Off-state voltage, max: 20V

Off-state current, max: 2.5 mA

On-state current, min: 5 mA @ 79V AC, 47?63 Hz

On-state current, max: 15 mA @ 132V AC, 47?63 Hz

Inrush current, max: 250 mA

Isolation voltage: 125V (continuous), basic insulation type, inputs-to-backplane, and input-to-input
