Manufacturer |
Rockwell Automation |
Backplane Current, 5.1VDC |
200 mA |
Removable Terminal Block |
1756-TBCH; 1756-TBS6H |
Module HART scan time |
Estimate 1 s if all channels are HART enabled |
Module input scan time, min |
11…328 ms (filter dependent) |
Data Format: |
Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
Conversion method: |
Successive approximation |
Analog signals |
0-20 mA and 4-20 mA |
No. of Inputs |
16 Differential input; Dedicated HART modem per channel |
Product Family: |
PanelView Plus / PanelView Plus CE Operator Terminals |
Backplane Current, 24VDC |
125 mA |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

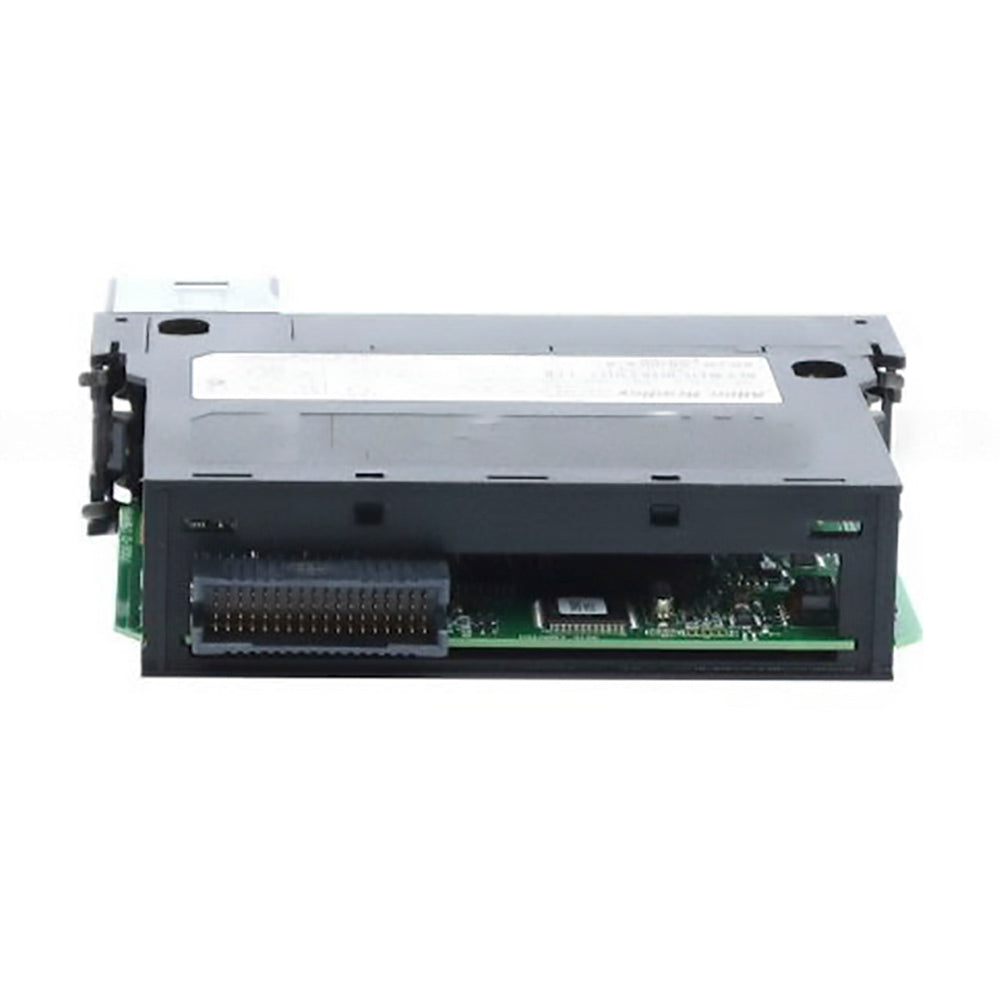

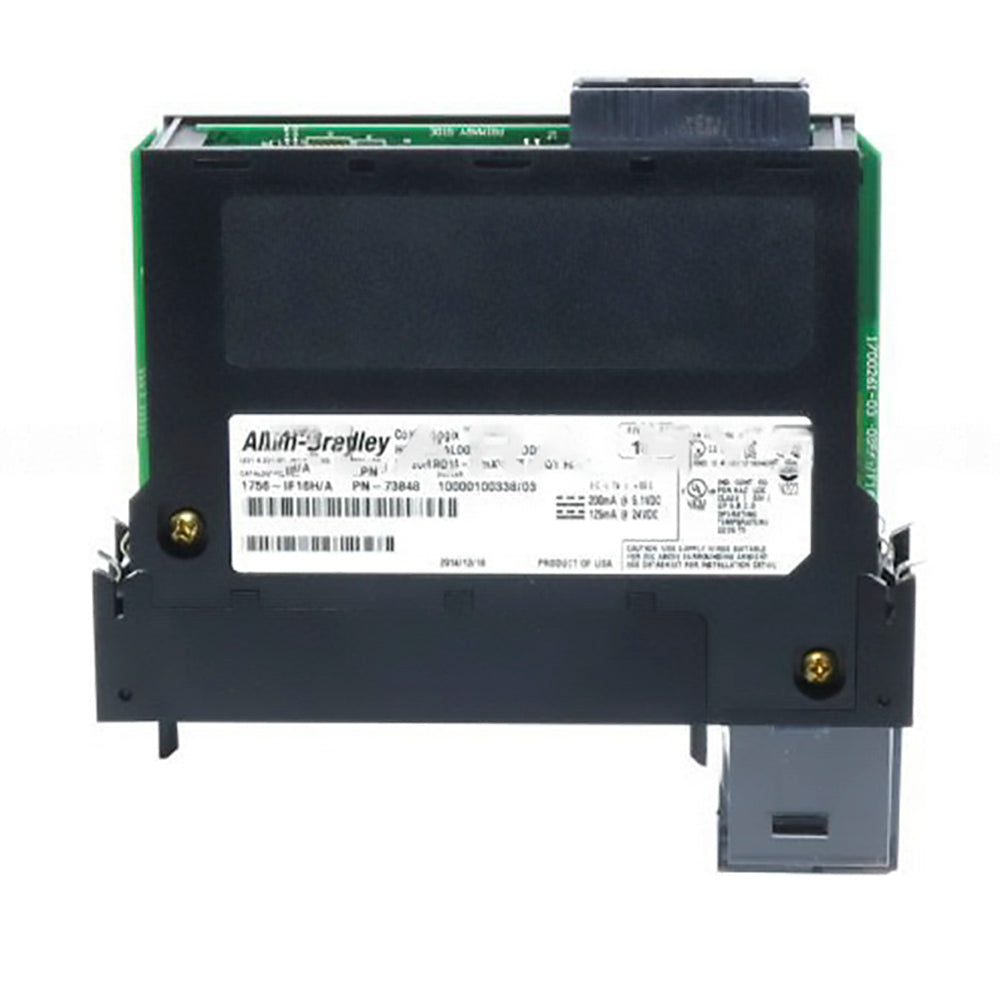

1756-IF16H |
Module Type |
Analog Input module with HART protocol |
Resolution |
16-21 Bits |
Total Backplane power |
4.02 W |
Series |
ControlLogix |
Inputs |
16 Differential |
Input Voltage Range |
0-20 or 4-20 milliamps |
Overvoltage Protection |
8 Volts DC |
Isolation Voltage |
50 Volts Continuous |
Enclosure |
Open |
Removeable Terminal Blocks |
1756-TBCH, 1756-TBS6H |
UPC |
10885630003419 |
