Manufacturer |
Rockwell Automation |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

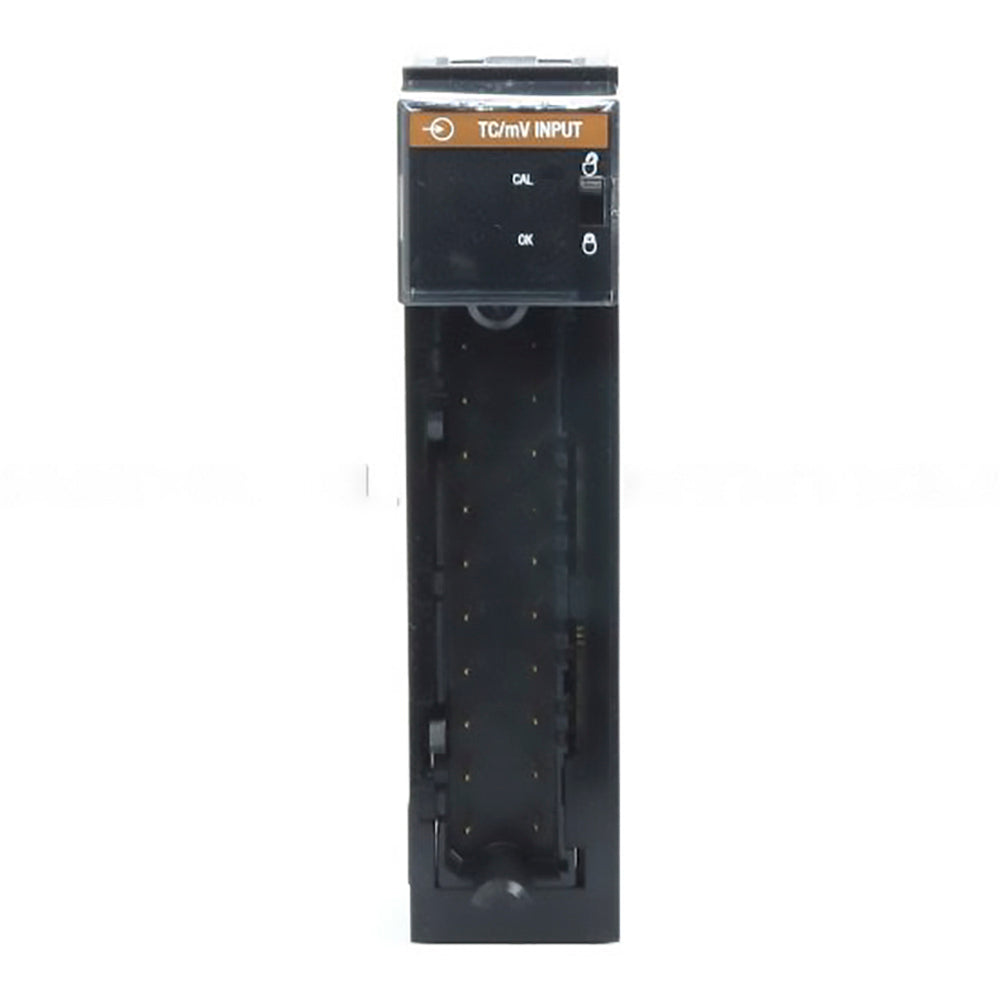

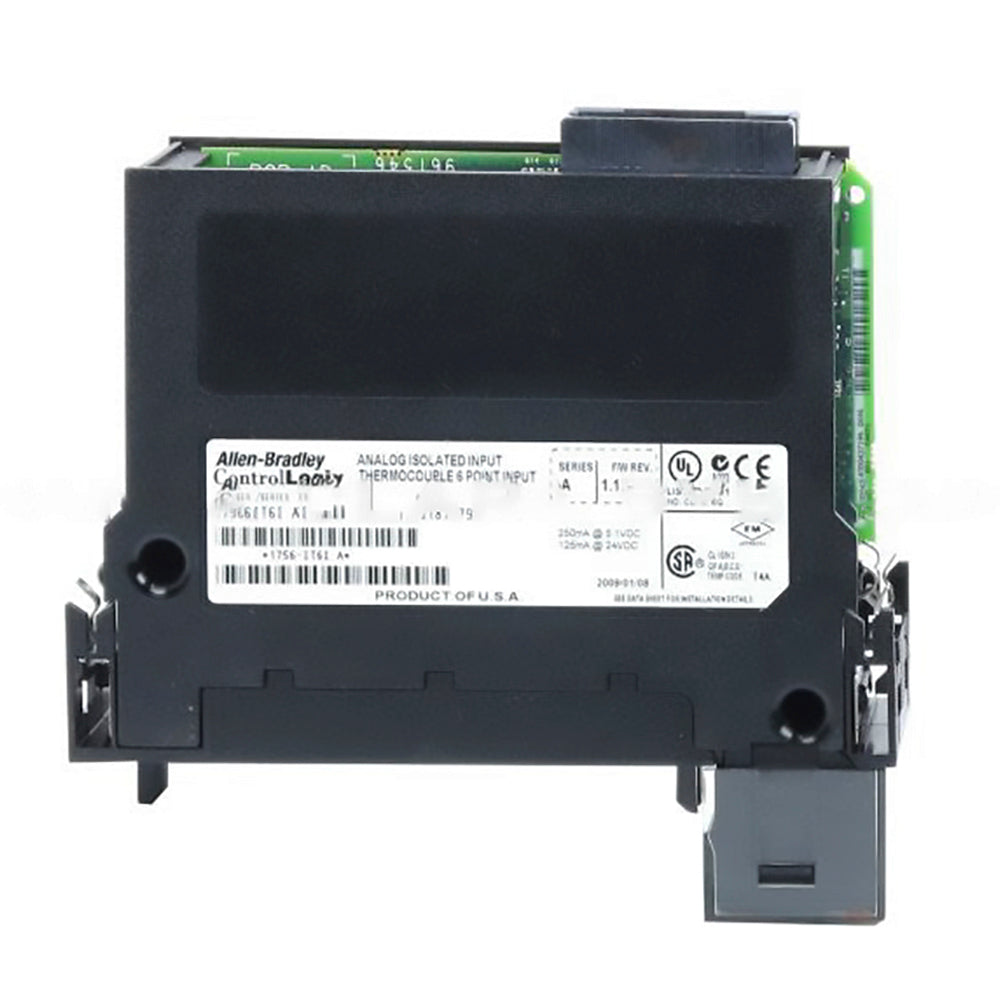

1756-IT6I |
Series |
ControlLogix |
Module Type |
Analog Thermocouple Module |
Inputs |
6 Isolated Thermocouple, 1 CJC |
No. of Inputs |
Six (6) Point Isolated Thermocouple Inputs |
Input Resolution |
16 bits -12…78 mV: 1.4 ?V/bit (typical) -12…30 mV: 0.7 ?V/bit (high resolution range)Input Range |
Module Scan Time |
25 ms min floating point (millivolt) 50 ms min floating point (temperature) 10 ms min integer (millivolt)(1) |
Backplane Current (24Volts) |
125 milliamps |
Data Format |
Integer mode (left justified, 2s complement) IEEE 32-bit floating point |
Backplane Current (5Volts) |
250 milliamps |
Supported Sensors |
B, C, E, J, K, N, R, S, T |
Removeable Terminal Blocks |
1756-TBNH, 1756-TBSH |
Backplane Current at 24 Volts |
2 milliamperes |
Power Dissipation (Max) |
4.3 Watts |
UPC |
10612598172310 |
