| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Integrated Motion | • SERCOS interface • Analog options (encoder input, LDT input, SSI input) • Integrated Motion on the EtherNet/IP network |
| Redundancy | Full Support |
| Optional Communication adapters | • EtherNet/IP • ControlNet • DeviceNet • Data Highway Plus • Remote I/O • SynchLink • Third-party process and device networks |
| Built-in communication | 1 Ethernet I/P; 1 USB port |
| Event Task | All Triggers |
| Programs per task | 1000 Programs |
| No. of task | 32 |
| Maximum Analog I/O | 4000 |
| Maximum I/O | 128000 |
| Non-volatile memory | 2GB (ships with the controlelr) |
| Product Type | Programmable Automation Controller |

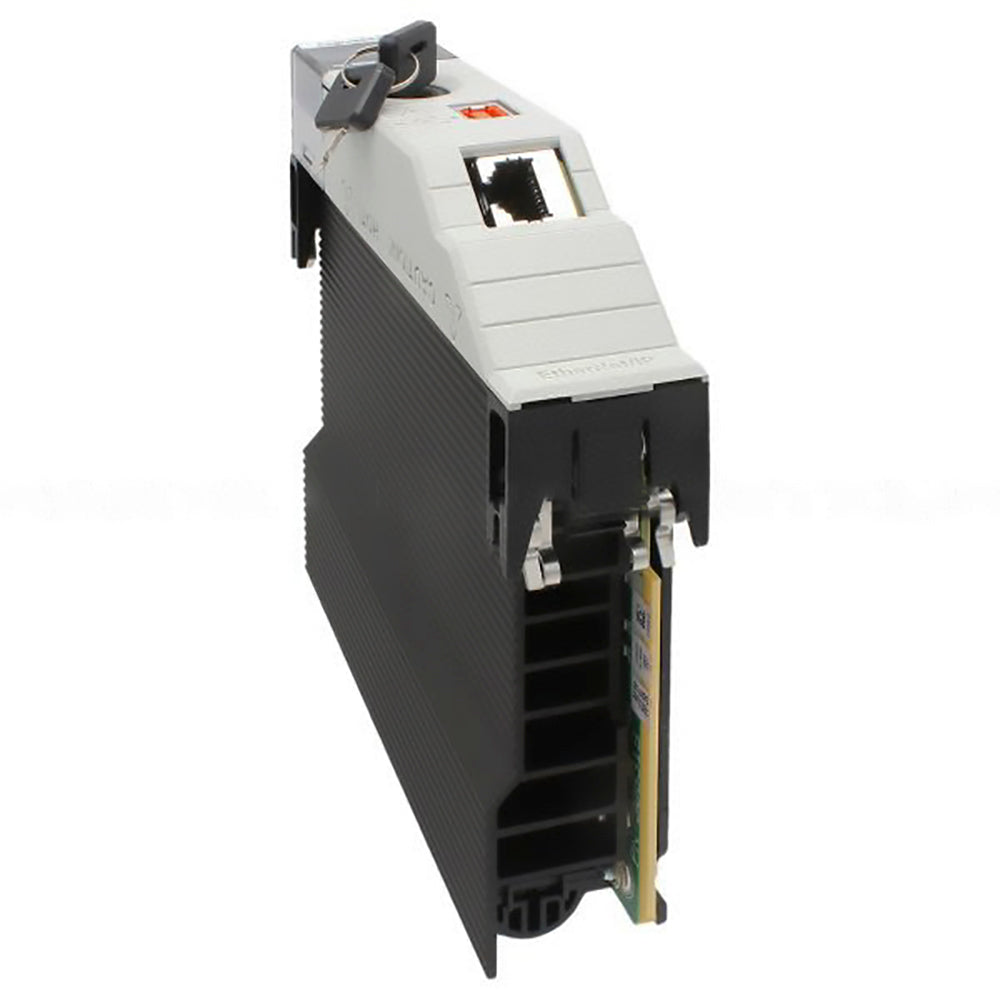

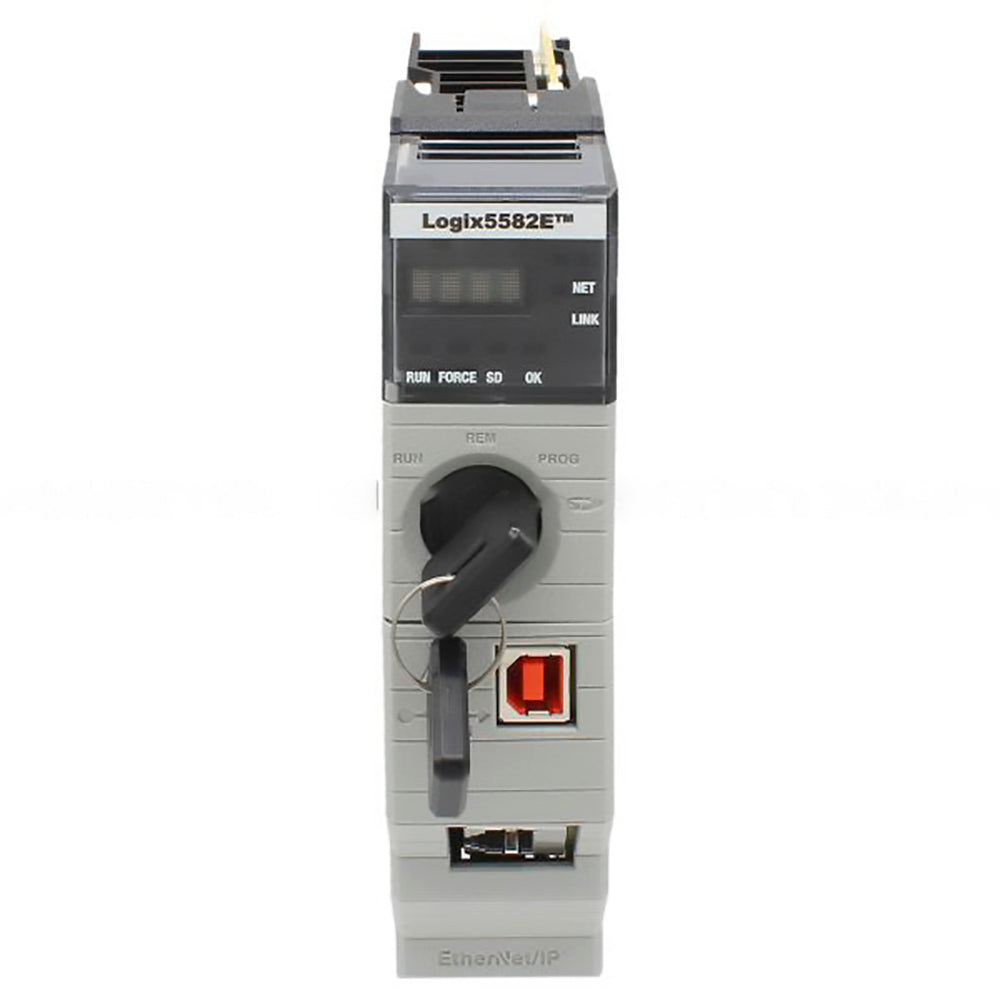

| Part Number/Catalog No. | 1756-L82E |
| Series | ControlLogix 5580 |
| Module Type | Processor Module |
| User Memory | 5 MB |
| I-O Memory | N/A |
| Maximum I-O | 128,000 |
| Maximum Analog I-O | 4,000 |
| Maximum Digital I-O | 128,000 |
| Current Draw (1.2 Volts DC) | 5.0 Miliamperes |
| Current Draw (5.1 Volts) | 1.20 Miliamperes |
| Power Dissipation | 6.2 Watts |
| Thermal Dissipation | 21.2 BTU per hour |
| Isolation Voltage | 50 Volts Continuous |
| Enclosure | None (Open-Style) |
| UNSPSC | 32151705 |
