Manufacturer |
Rockwell Automation |
Power Dissipation |
3.5 W |
Power supply standard |
1756-PA50, 1756-PA72, 1756-PA75, 1756-PB50, 1756- PB72, 1756-PB75 |
Chassis |
1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 |
Slot Width |
2 (primary and partner modules needed; each is one slot) |
Thermal Dissipation |
11.9 BTU/Hr. |
Current draw @ 24VDC |
14 mA |
Current draw @ 5.1 VDC |
1200 mA |
Replacement battery |
1756-BA2 (0.50 g lithium) |
Safety Memory |
Depending on the installed primary controller |
Compatible Primary controllers |
1756-L61S, -L62S, L63S |
Product Type |
Programmable Automation Controller |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

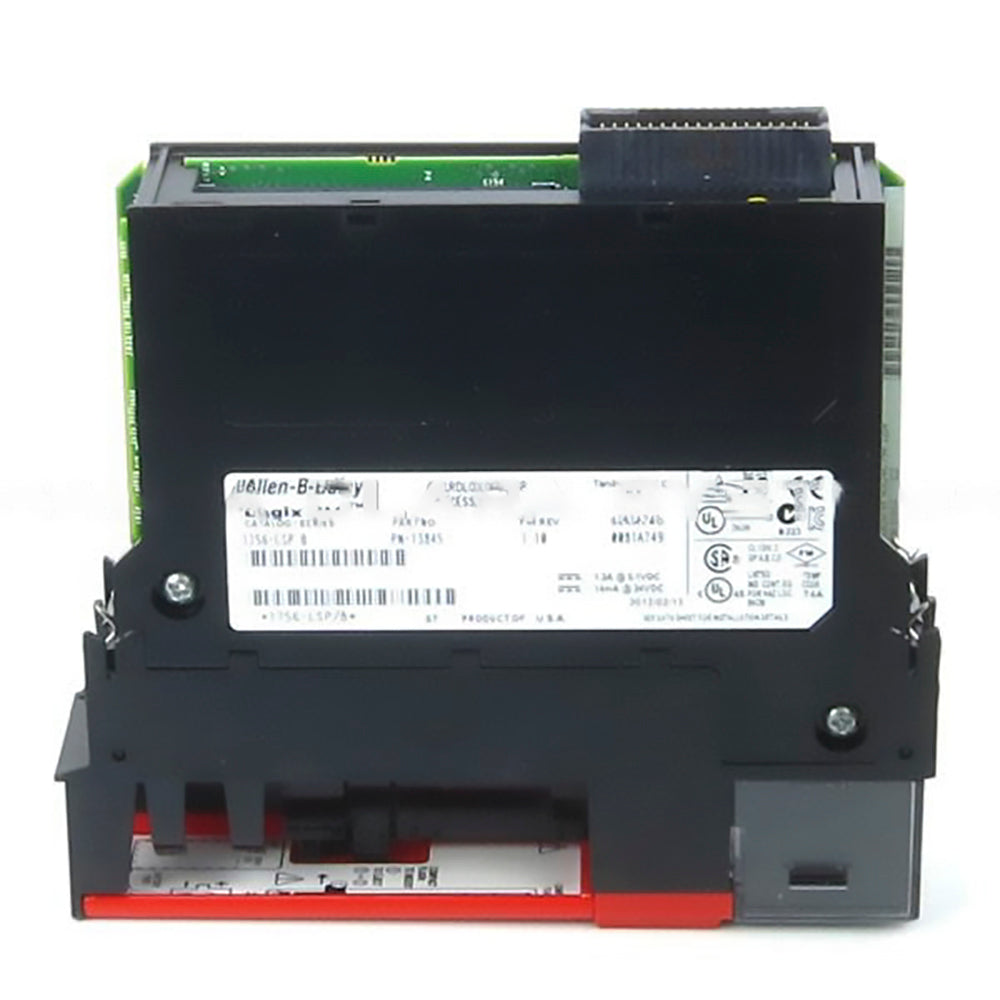

1756-LSP |
Series |
GuardLogix 5560 |
Module Type |
Safety Partner module |
I-O Memory |
N/A |
User Memory |
N/A |
Maximum I-O |
N/A |
Maximum Analog I-O |
N/A |
Maximum Digital I-O |
N/A |
Current Draw (5.1 Volts DC) |
1200 Miliamperes |
Current Draw (24 Volts DC) |
14 Miliamperes |
Thermal Dissipation |
11.9 BTU per hour |
Isolation Voltage |
30 Volts Continuous |
Enclosure |
None (Open-Style) |
UPC |
10612598321732 |
