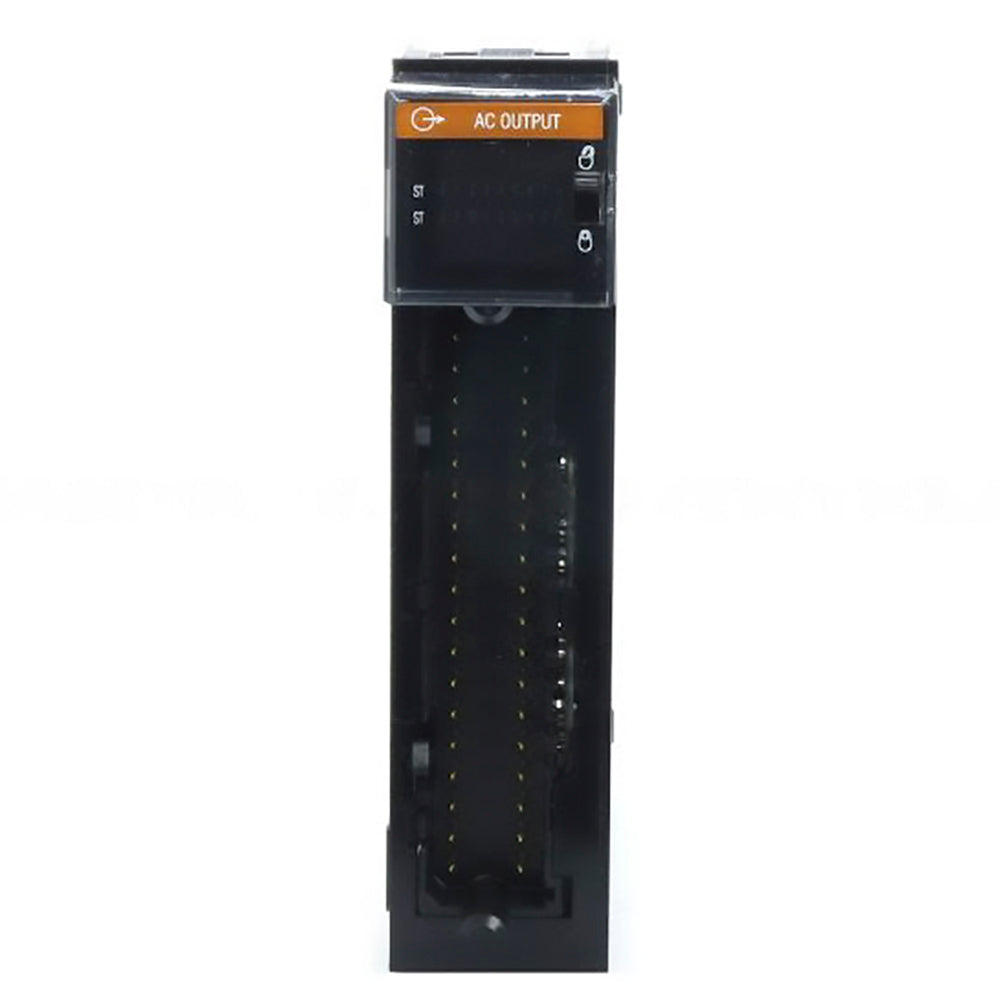

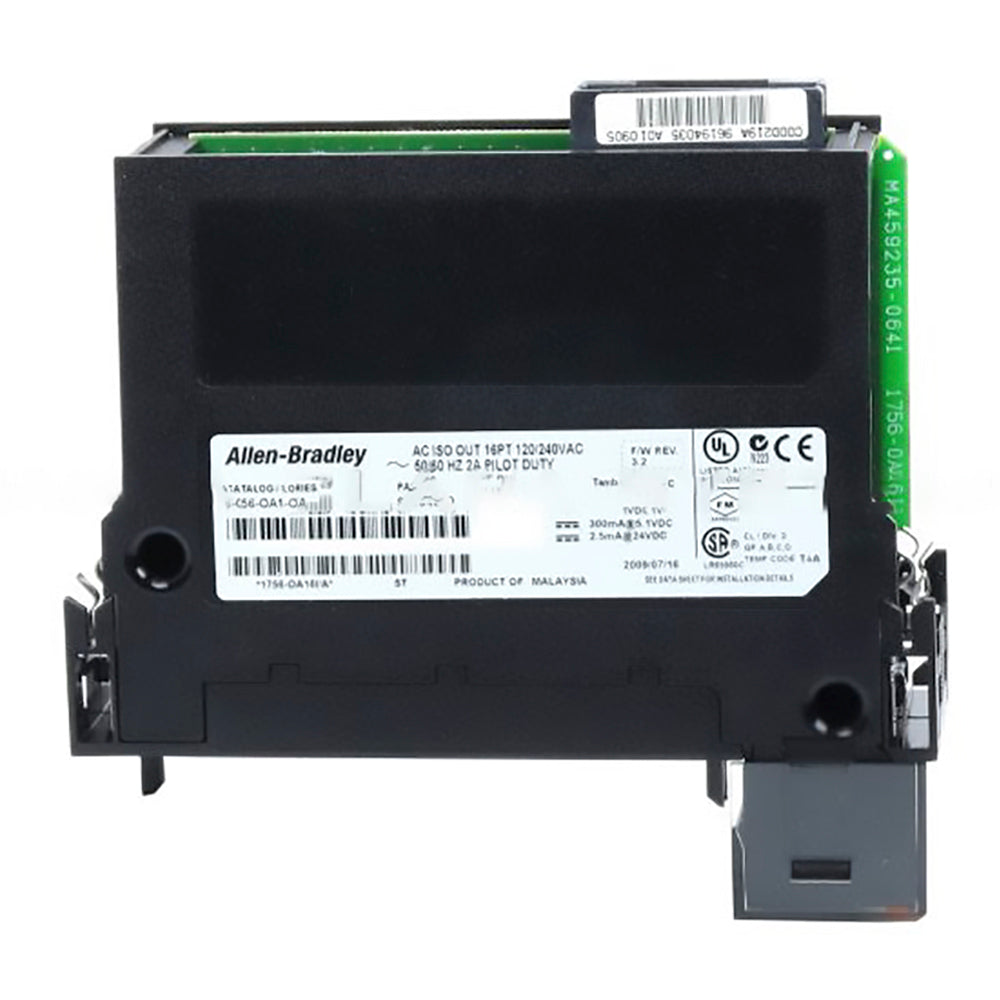

Manufacturer |
Rockwell Automation |
Part Number/Catalog No. |
1756-OA16I |
Continuous current per module, max |
5 A @ 30 °C (86 °F) linear derating; 4 A @ 60 °C (140 °F) linear derating |
Continuous current per point |
2 A @ 30 °C (86 °F) linear derating; 1 A @ 60 °C (140 °F) linear derating |
Backplane Current at 5.1 Volts |
225 mA |
OFF state leakage current |
3 mA per point |
Output Delay Time, OFF to ON |
9.3 ms @ 60 Hz; 11 ms @ 50 Hz |
Output Voltage |
120/240 VAC output |
No. of Outputs |
Sixteen (16) isolated outputs |
Brand |
Allen-Bradley |
Series |
1756 ControlLogix |
Module Type |
Digital AC Output Module |
Operating Voltage Range |
74-265 VAC |
Outputs |
16 Points Individually Isolated |
Voltage |
120-240 Volts AC |
Maximum Output Current Rating-Point |
2 Amps at 30 degrees Celsius, 1 Amp at 60 degrees Celsius |
Maximum Output Current Rating-Module |
5 Amps at 30 degrees Celsius, 4 Amps at 60 degrees Celsius |
Power Dissipation (Max) |
5.5 Watts at 60 degrees Celsius |
Backplane Current at 5 Volts |
300 milliamps |
Backplane Current at 24 Volts |
3 milliamps |
Removeable Terminal Block(s) |
1756-TBCH, 1756-TBS6H |
Isolation Voltage |
50 Volts Continuous |
Enclosure |
None |
UPC |
10612598164513 |
