Manufacturer |
Rockwell Automation |
Removable Terminal Block(s) |
1756-TBNH; 1756-TBSH |
Thermal Dissipation |
13.98 BTU/hr @ 60 °C (140 °F) |
Backplane Current at 5.1 Volts |
250 milliamperes |
Backplane Current at 24 Volts |
2 milliamperes |
Output Delay Time, ON to OFF |
360 µs nom/1 ms max |
Output Delay Time, OFF to ON |
70 µs nom/1 ms max |
Slot Width |
1 |
RTB Keying |
User-defined mechanical |
Module Keying |
Electronic |
Nominal output voltage |
24VDC |
Output Voltage range |
10-31.2 VDC |
No. of outputs |
Sixteen (16) |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

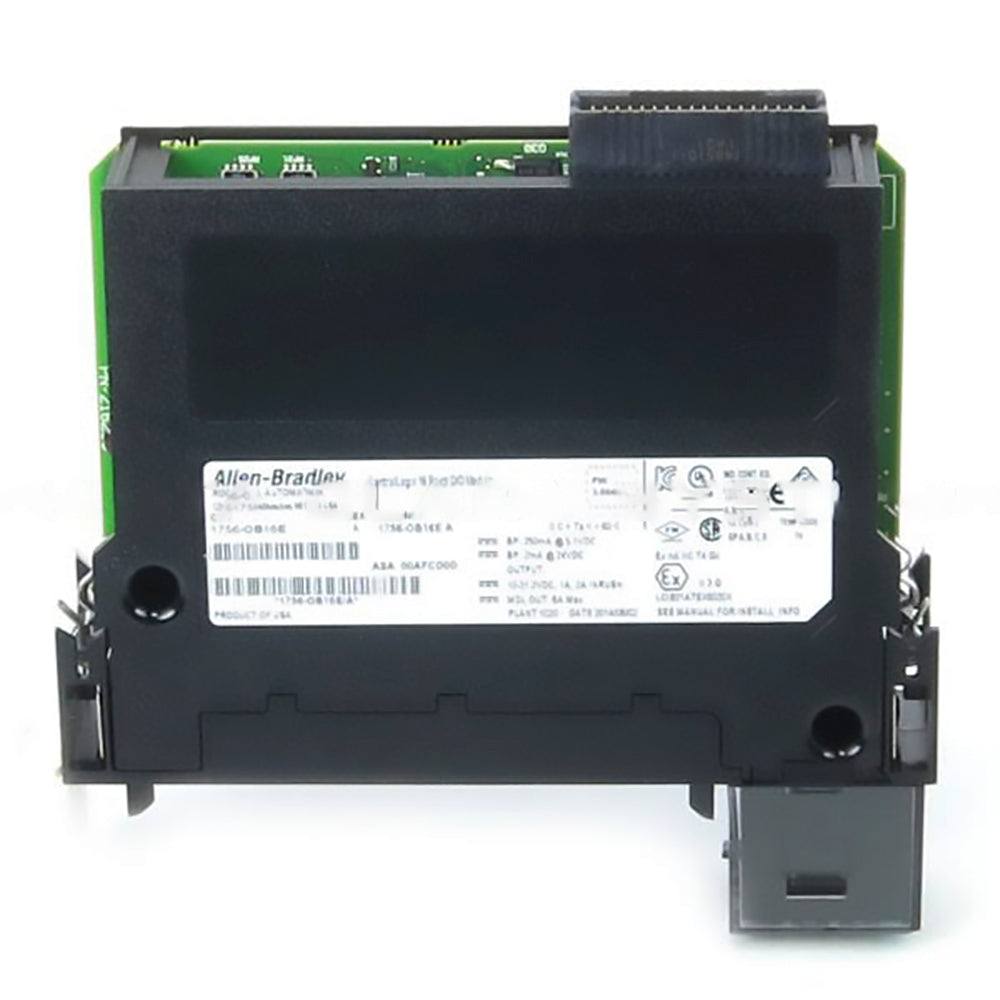

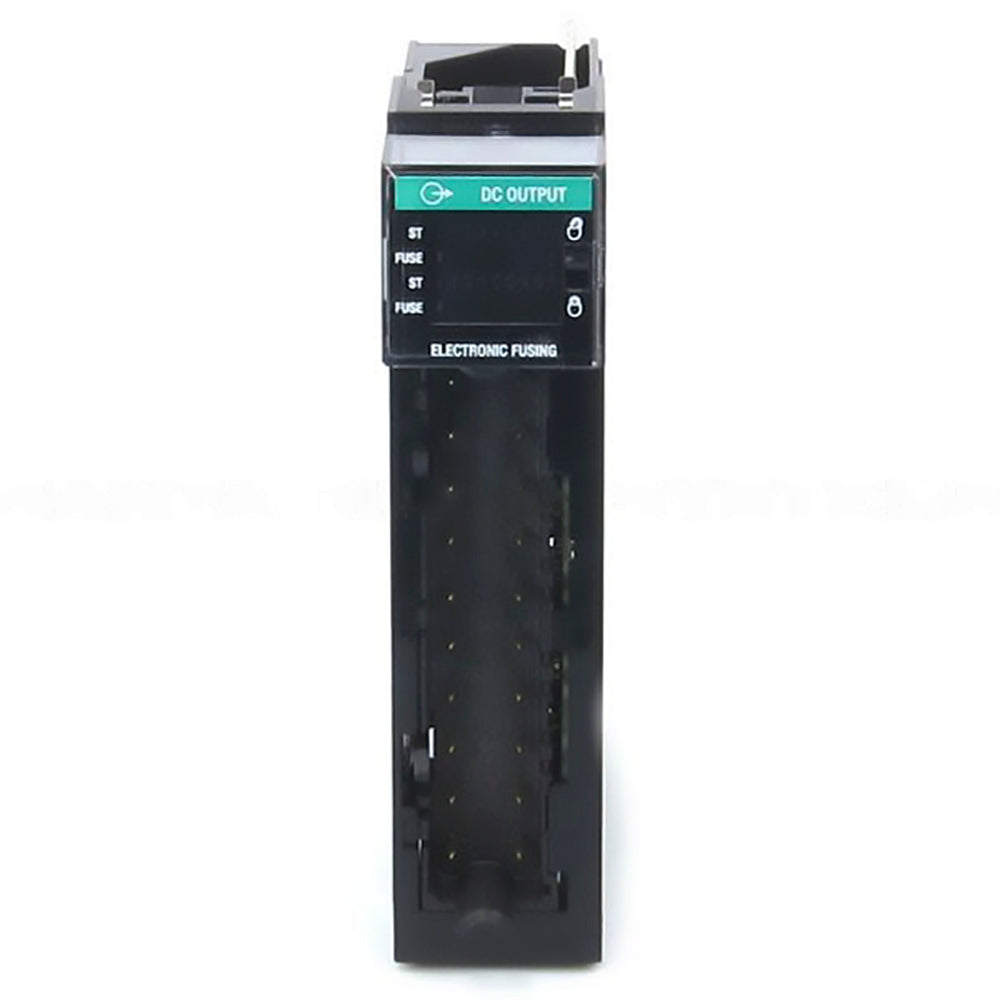

1756-OB16E |
Series |
ControlLogix |
Module Type |
Digital DC output Module |
Power Dissipation (Max) |
4.1 W @ 60 °C (140 °F) |
Outputs |
16-Point Electronically Fused |
Voltage |
12-24 Volts DC |
Operating Voltage Range |
10-30 Volts DC |
Maximum Output Current Rating-Point |
1 Amp at 60 Celsius |
Maximum Output Current Rating-Module |
8 Amps at 60 degrees Celsius |
Backplane Current at 5 Volts |
250 milliamps |
Removeable Terminal Block(s) |
1756-TBNH, 1756-TBSH |
Isolation Voltage |
50 Volts Continuous |
Enclosure |
None |
UPC |
10612598180810 |
UNSPSC |
32151705 |
