Manufacturer |
Rockwell Automation |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

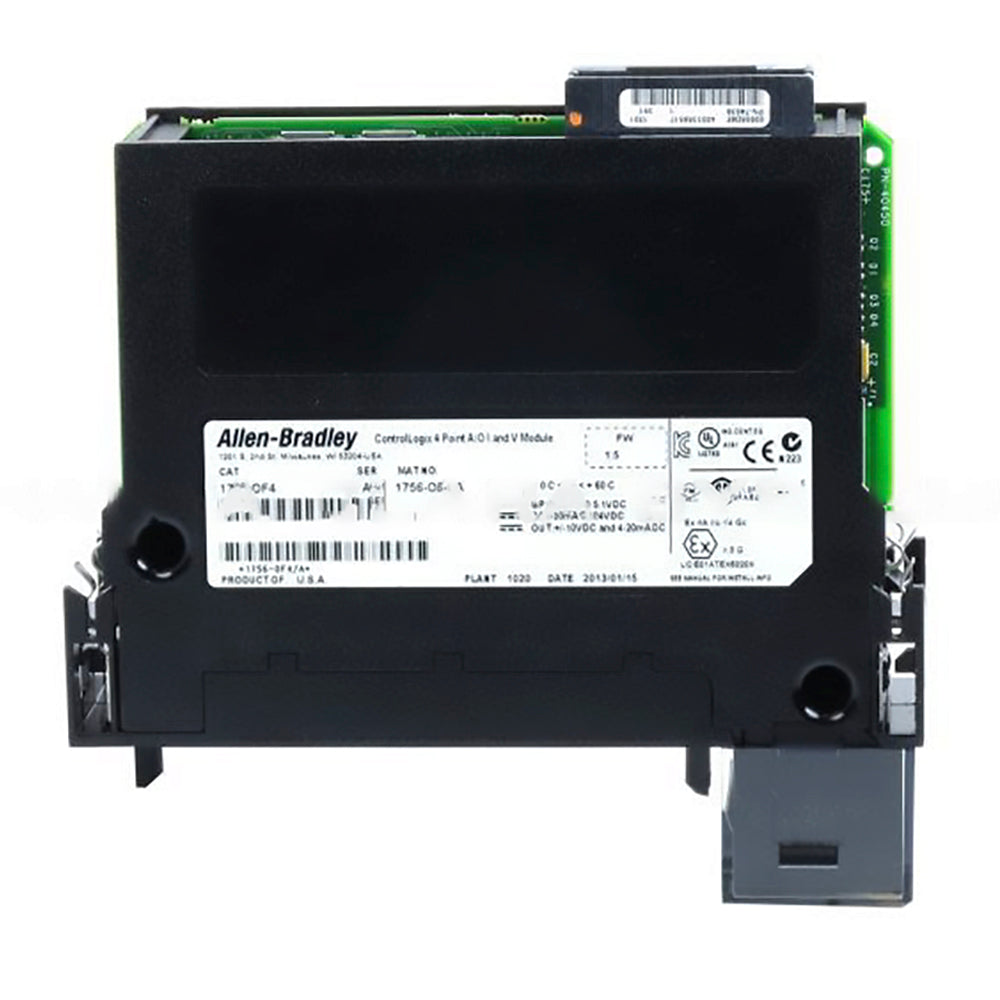

1756-OF4 |
Series |
ControlLogix |
Outputs |
4 Current-Voltage |
Module Type |
Analog Output Module |
Output Voltage Range |
±10V |
Output Current Range |
4…20 mA |
Output Voltage Resolution |
15 bits across 10.5V, 320 µV/bit O |
Output Current Resolution |
15 bits across 21 mA, 650 nA/bit |
Backplane Current (5Volts) |
150 milliamps |
Backplane Current (24 Volts) |
120 milliamps |
UPC |
10612598171825 |
Power Dissipation (Max) |
4.9 Watts at 60 Celsius |
Removable Terminal Blocks |
1756-TBNH, 1756-TBSH |
Isolation Voltage |
50 Volts Continuous |
Enclosure |
None |
