Manufacturer |
Rockwell Automation |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

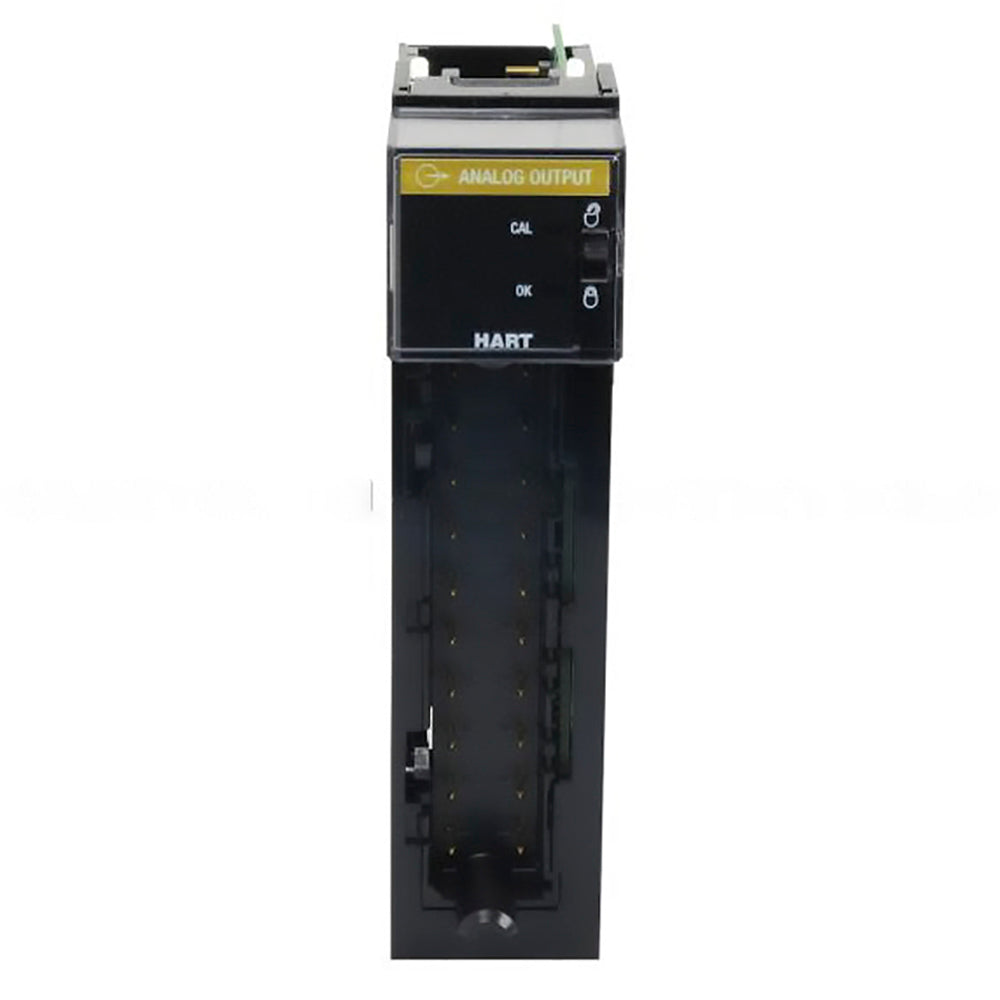

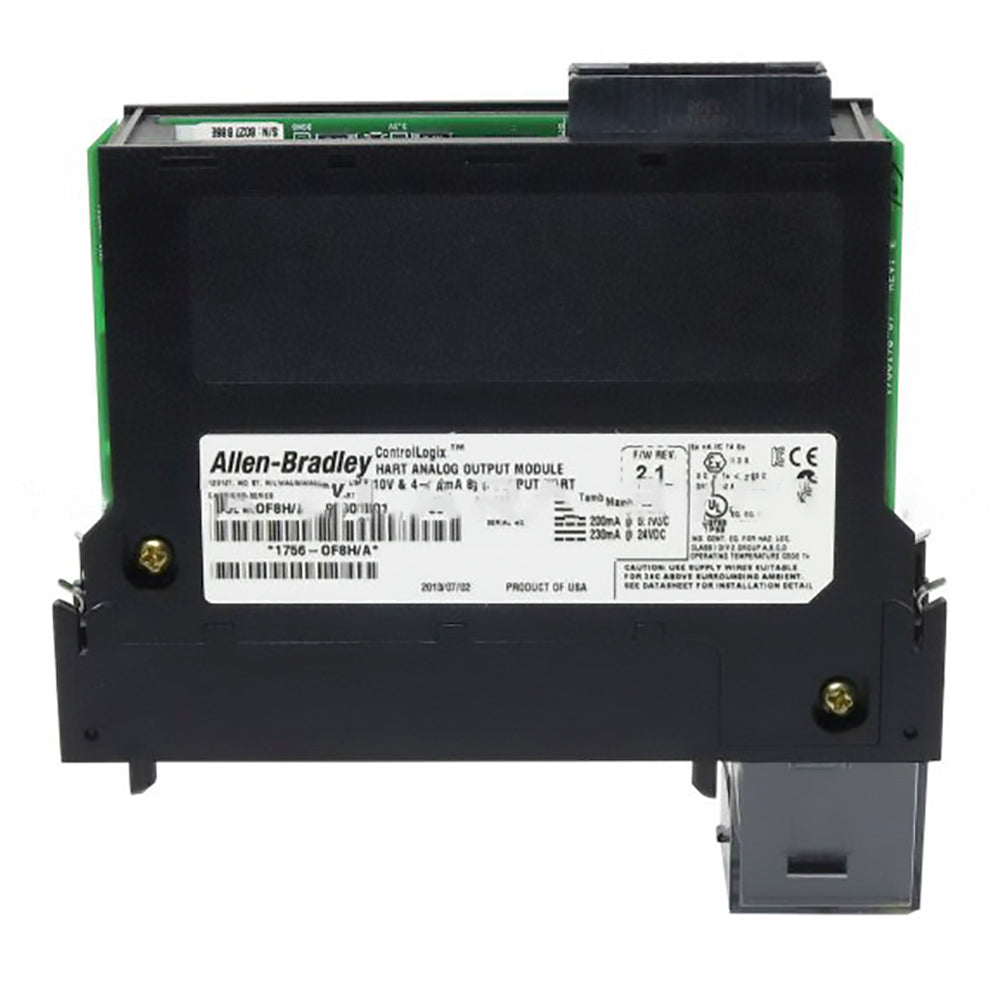

1756-OF8H |
Manufacturer |
Rockwell Automation |
Brand |
Allen-Bradley |
Series |
ControlLogix |
Series |
ControlLogix |
Module Type |
Hart Analog Output Module |
Module Type |
Analog output Module with HART capability |
Outputs |
8 Differential |
No. of Inputs |
Eight (8) output channels |
Input Current Range |
0-20 or 4-20 milliamps |
Output signal |
Current: 0-20 mA; 4-20 mA Voltage: +/-10VDC |
Isolation Voltage |
50 Volts Continuous |
Resolution |
15-16 Bits |
Overvoltage Protection |
24 Volts DC |
Accuracy |
Voltage: 0.1% of range Current: 0.5% of range |
Enclosure |
Open |
Removeable Terminal Blocks |
1756-TBNH, 1756-TBSH |
Data Format: |
Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
Input conversion method |
Successive approximation |
Output conversion method |
R-Ladder DAC, monotonicity with no missing codes |
Removable terminal block |
1756-TBCH; 1756-TBSH |
Removeable Terminal Block(s) |
1756-TBNH, 1756-TBSH |
Current Draw |
230 mA @ 5.1 VDC and 230 mA @ 24 VDC |
Isolation Voltage |
50 Volts Continuous |
Enclosure |
None |
Open circuit detection time |
Current output only (output must be set to < 0.1 mA) |
UPC |
10612598345486 |
