Manufacturer |
Rockwell Automation |
Module Type |
Redundant Power Supply bundle |
Series |
ControlLogix |
Part Number/Catalog No. |

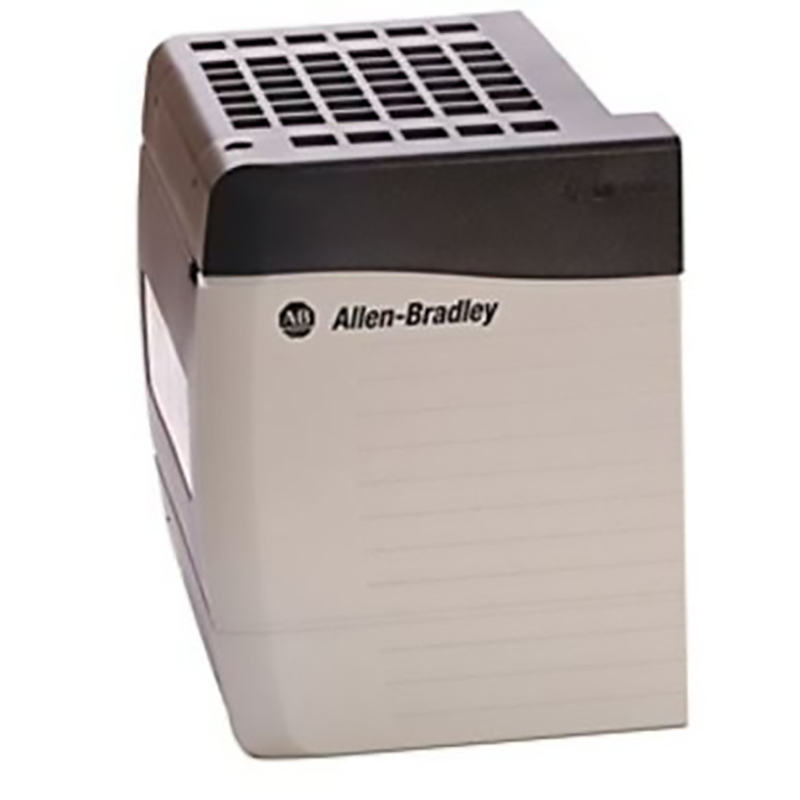

1756-PAR2 |
Assembly components |
Two (2) 1756-PA75R power supplies,; Two (2) 1756-CPR2 cables; One (1) 1756-PSCA2 Chassis adapter module |
1756-PA75R Nom Input Voltage |
120/240VAC |
Isolation Voltage |
250V (continuous), Reinforced Insulation Type, Power Input to Backplane, Power Input to Annunciator, Annunciator to Backplane Type tested at 3250V DC for 60 s |
Max Inrush Current |
20 Amperes |
Current Capacity |
1.5 A at 1.2VDC; 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC |
Output Power |
75 W @ 0…60 °C (32…140 °F) |
Annunciator Power |
240V AC 50/60 Hz, 240V DC, 50 mA, resistive only |
Hold Up time |
2 cycles @ 60 Hz; 2 cycles @ 50 Hz |
Chassis Compatibility |
1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 |
Input Voltage |
85-265 VAC |
