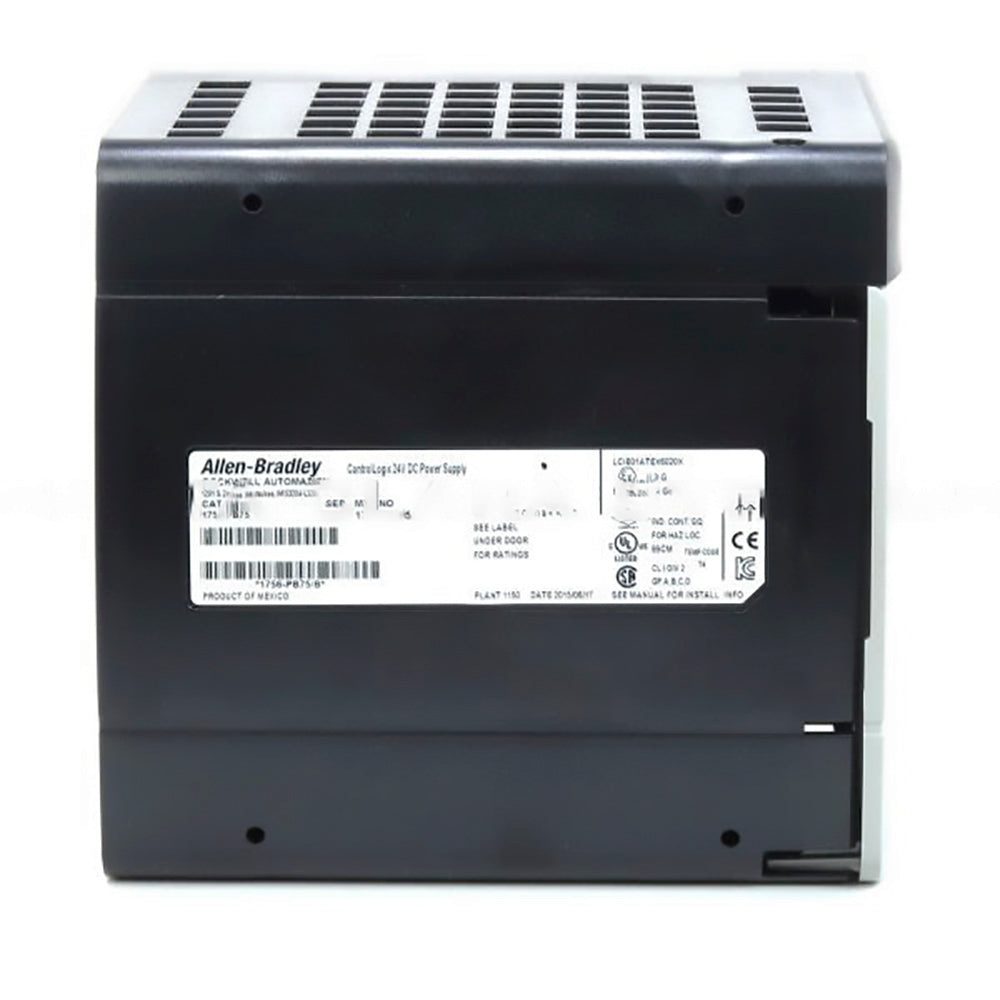

Manufacturer |
Rockwell Automation |
Part Number/Catalog No. |
1756-PB75 |
Chassis Series |
Series B; Series C |
Chassis Compatibility |
1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 |
Hold Up time |
35 ms @ 18V DC; 40 ms @ 24V DC; 40 ms @ 32V DC |
Output Power |
75 W @ 0…+60 °C (+32…+140 °F) |
Current Capacity |
1.5A at 1.2 VDC; 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC |
Max Inrush Current |
30 Amperes |
Isolation Voltage |
250V (continuous), Reinforced Insulation Type, Power Input to Backplane Type tested @ 3500V DC for 60 s |
Input Voltage Range |
18-32VDC |
Nom Input Voltage |
24VDC |
Brand |
Allen-Bradley |
Series |
ControlLogix |
Module Type |
Standard Power Supply |
Input Power |
95 W |
Location |
1756 Chassis Left Side |
Weight |
0.95 kg (2.10 lb) |
Dimensions |
14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.) |
Input Voltage |
24 Volts DC |
Voltage Range |
18-32 Volts DC |
Power Output |
75 Watts at 60 Celsius |
Chassis |
Series B |
Operating Temperature |
32-140 Fahrenheit (0-60 Celsius) |
Enclosure |
None |
UPC |
10612598206862 |
