| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |

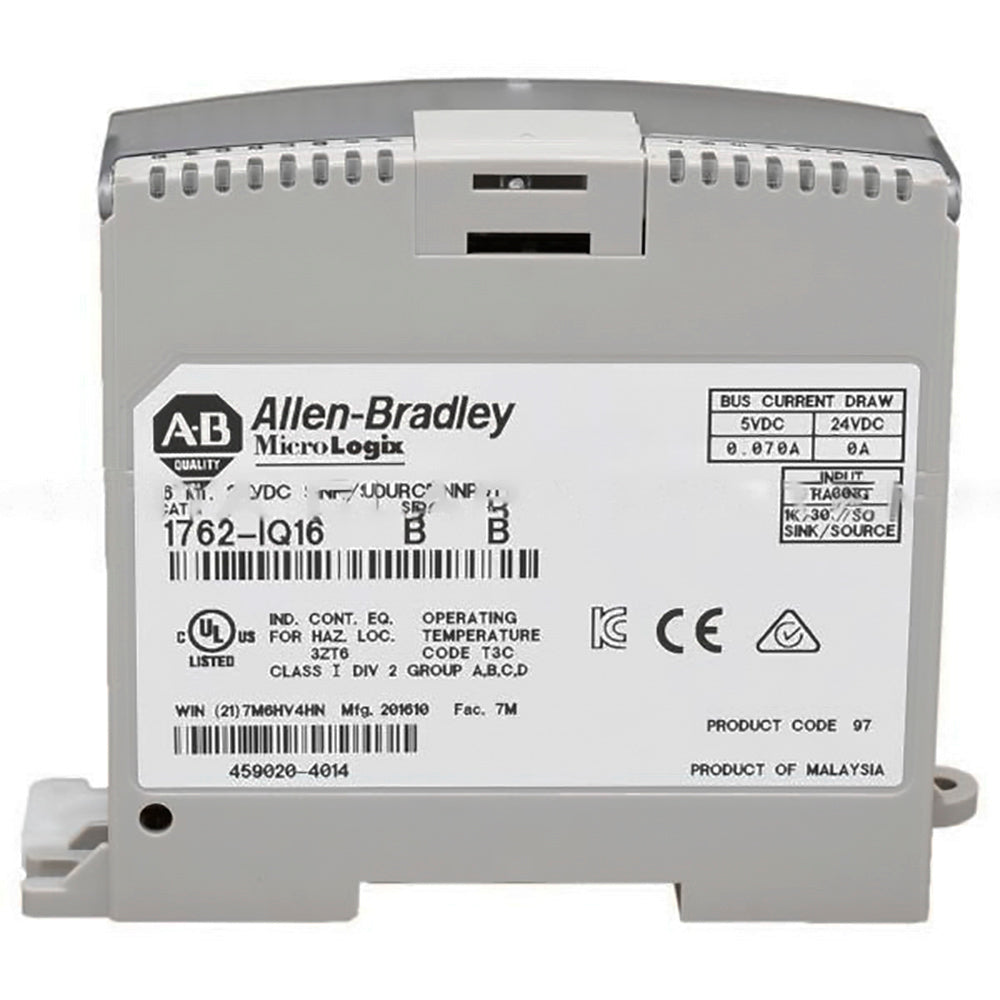

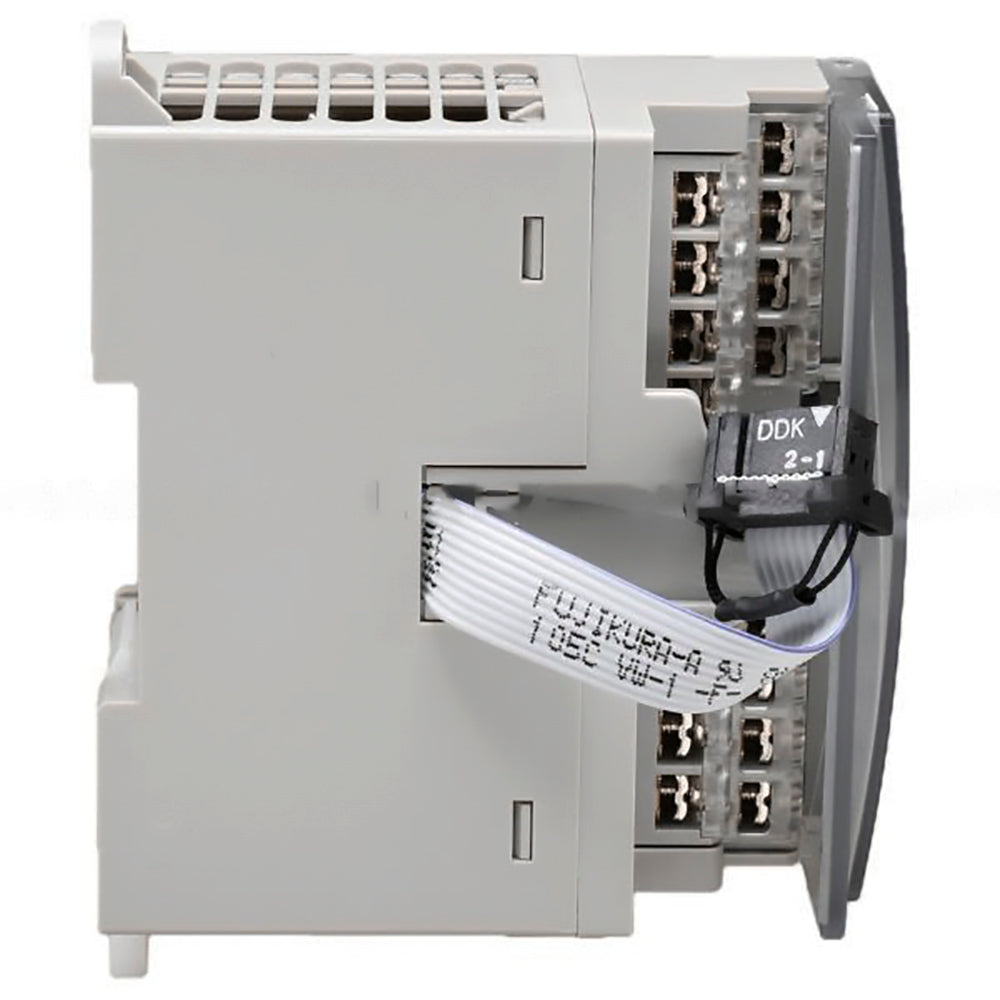

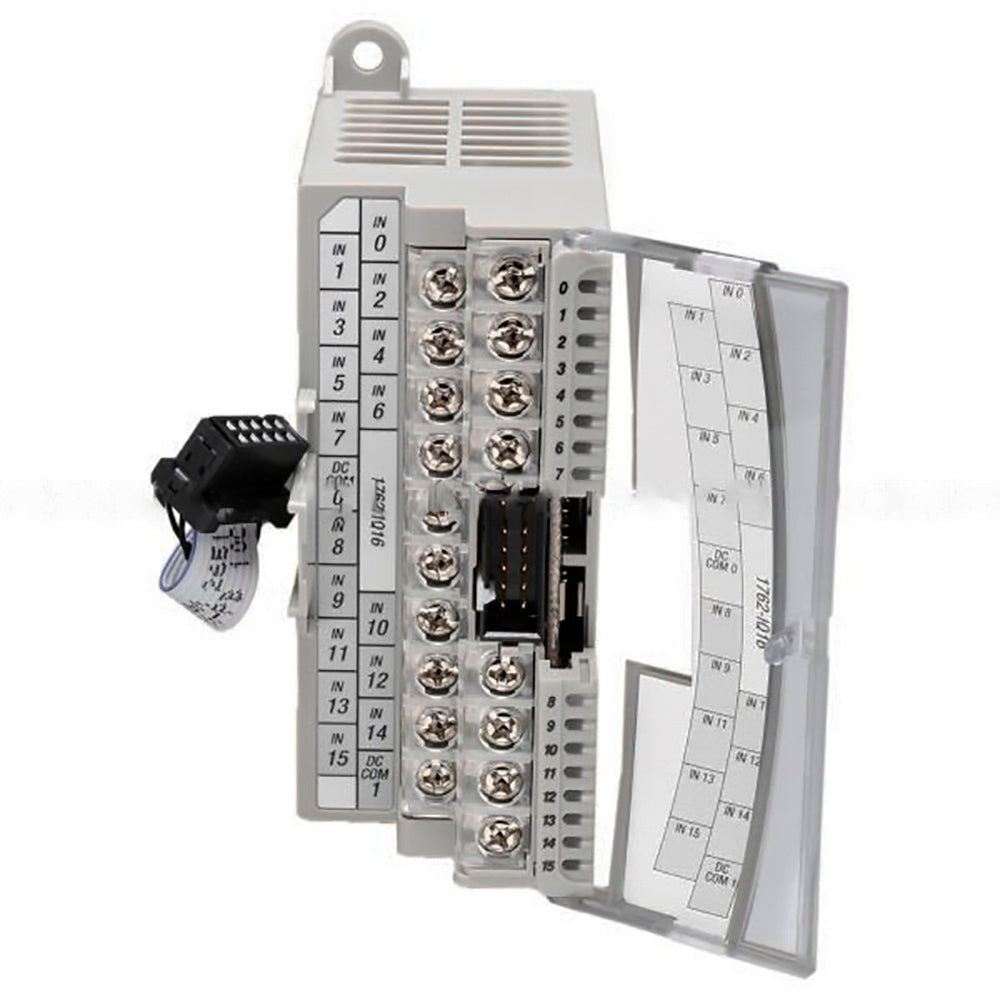

| Part Number/Catalog No. | 1762-IQ16 |
| Compatible Controllers | MicroLogix 1100, 1200 and 1400 |
| Outputs | 10 to 30 Volts DC |
| Inputs | (16) Sinking and Sourcing Inputs |
| Product Type | Discrete Input Module |
| Commons | 2 |
| Series | A and B |
| Input Power | 24 Volts DC |
| Operating Voltage Range | 10…30V DC; 10…26.4V DC |
| Signal Delay | 8.0 ms |
| Off-State voltage, max | 5V DC |
| Off-State current, max | 1.5 mA |
| UPC | 10611320152132 |
| On-State voltage, min | 10V DC |
| On-State Current, max | 2.0 mA min @ 10V DC; 8.0 mA nom @ 24V DC; 12.0 mA max @ 30V DC; |
| Dimensions | 3.54 x 1.59 x 3.43 in (HxWxD) |
| Enclosure Rating | IP20 |
