Manufacturer | Rockwell Automation |
No. of Inputs | Eight (8) inputs |
Output module rating: | 0.333333333 |
Output contact rating: | 2.5 A for 240VAC / 120VAC; 1.0 A for 125VDC and 2.0 A for 24VDC |
Output operating voltage: | 5…265V AC; 5…125V DC |
Contact form: | Normally Open (N.O.) |
No. of outputs | Six (6) relay outputs |
Input voltage range | 10-30 VDC |
Nominal input voltage | 24VDC |
Channels per group: | Four (4) channels |
No. of groups | Two (2) input groups |
Module Type | Combination I/O module |
Series | MicroLogix |
Brand | Allen-Bradley |

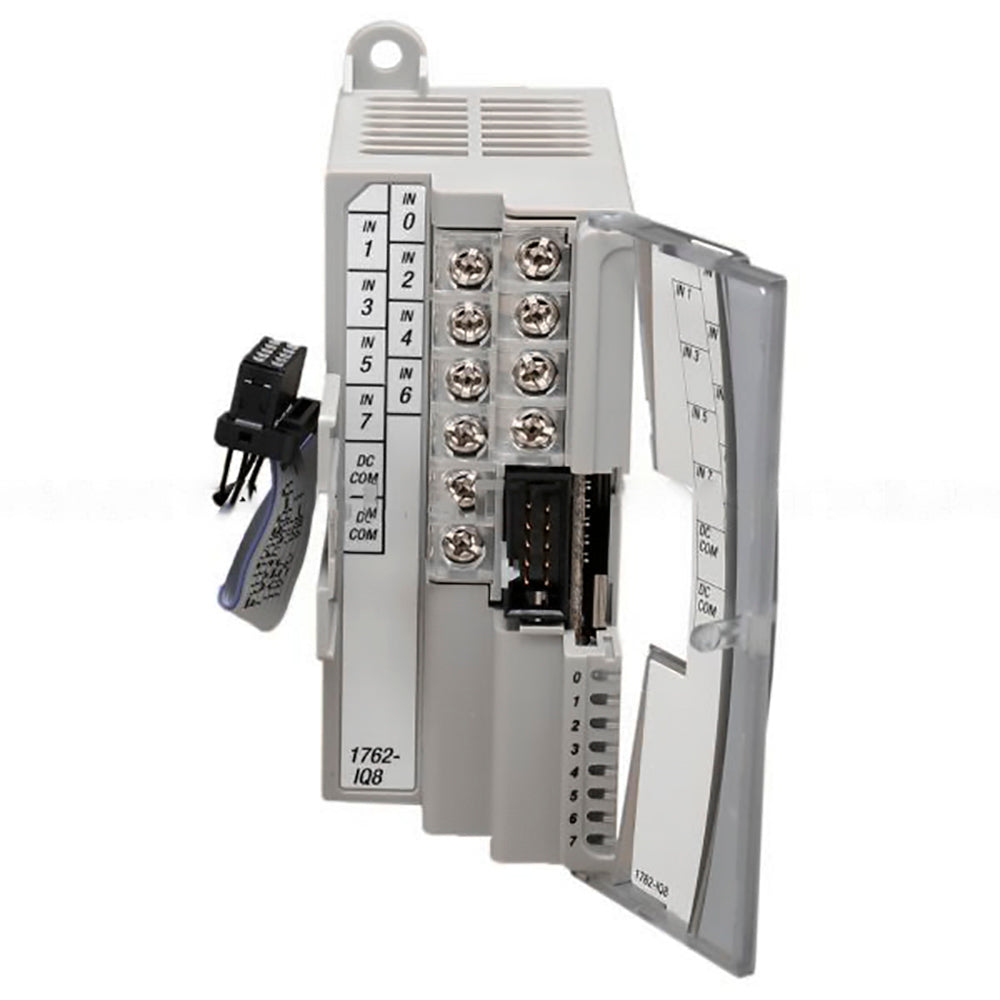

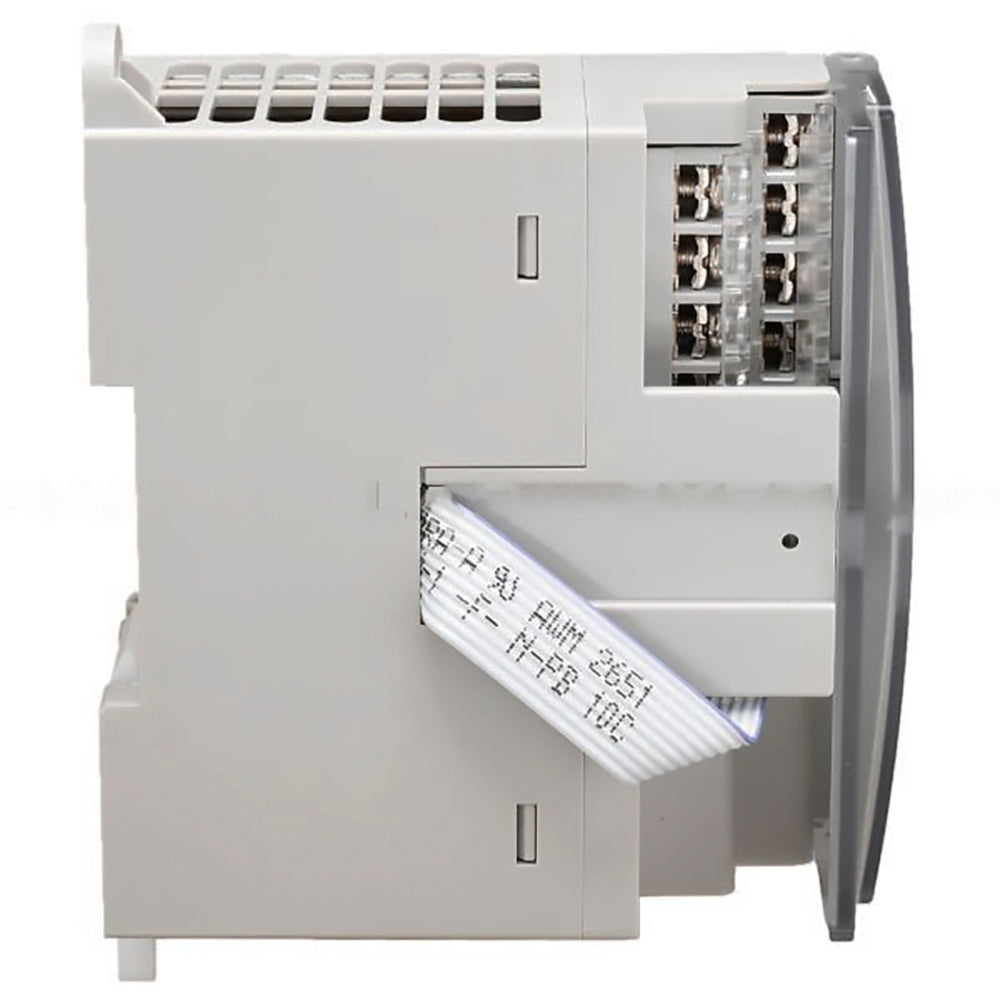

Part Number/Catalog No. | 1762-IQ8OW6 |
Input Power | 24V DC |
Inputs | (8) Sink and Source |
Operating Voltage Range | 10-30V DC |
UPC | 10662074399076 |
