| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |

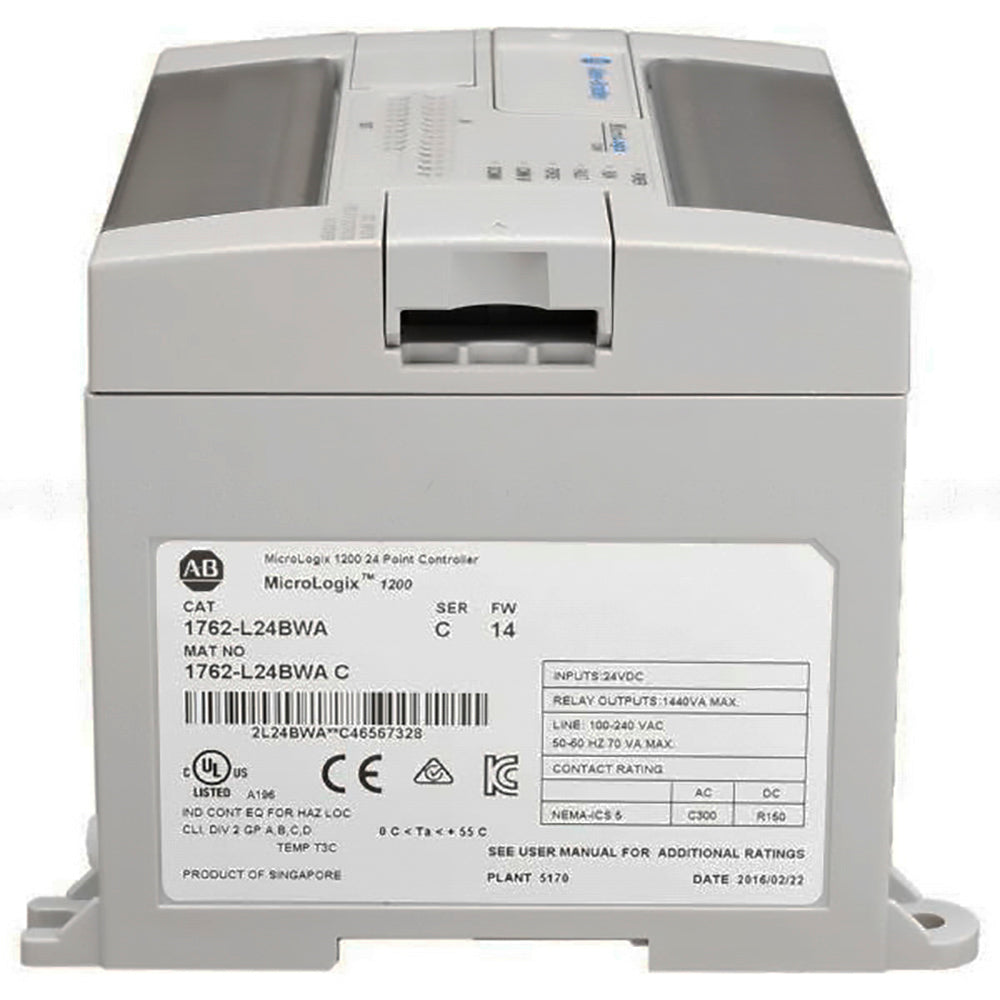

| Part Number/Catalog No. | 1762-L24BWA |
| Input Power | 120 to 240 Volts AC |
| Inputs | 10 rated at 24 Volts DC and 4 Fast rated at 24 Volts DC |
| No. of Inputs | Fourteen (14) |
| Outputs | 10 Relay |
| No. of Outputs | Ten (10) |
| Input Circuit Type | 24 Volts DC Sink/Source |
| Output Circuit Type | Relay |
| Relay Contact Rating | 24-125VDC; 120-240VAC |
| Mechanical Cycles | 20,000,000 |
| Dimensions | Height: 90 mm, 104 mm (with DIN latch open) Width: 110 mm Depth: 87 mm |
| Load Current | 10A, minimum |
| Shipping Weight | 2 pounds |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| UPC | 10612598207210 |
| UNSPSC | 32151705 |
| Heat Dissipation | 15.7 W |
| Power supply inrush current | 120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
