Manufacturer |
Rockwell Automation |
Ambient Operating Temp |
0 to 55 degrees Celsius |
Dimensions |
Height: 90 mm 104 mm (with DIN latch open); Width: 160 mm; Depth: 87 mm |
Supported Protocols |
DF1, DH-485, ASCII, MODBUS |
Communication Ports |
One (1) 8-Pin mini-DIN serial port; One (1) programming port |
Load Current |
10A, minimum |
Mechanical Cycles |
20000000 |
Relay Contact Rating |
24-125VDC; 120-240VAC |
Output Circuit Type |
Relay |
No. of Outputs |
Sixteen (16) relay |
No. of Inputs |
Twenty (20) 24V dc; Four (4) fast 24V dc |
Power Supply |
24VDC |
Shipping Weight |
2.4 pounds |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

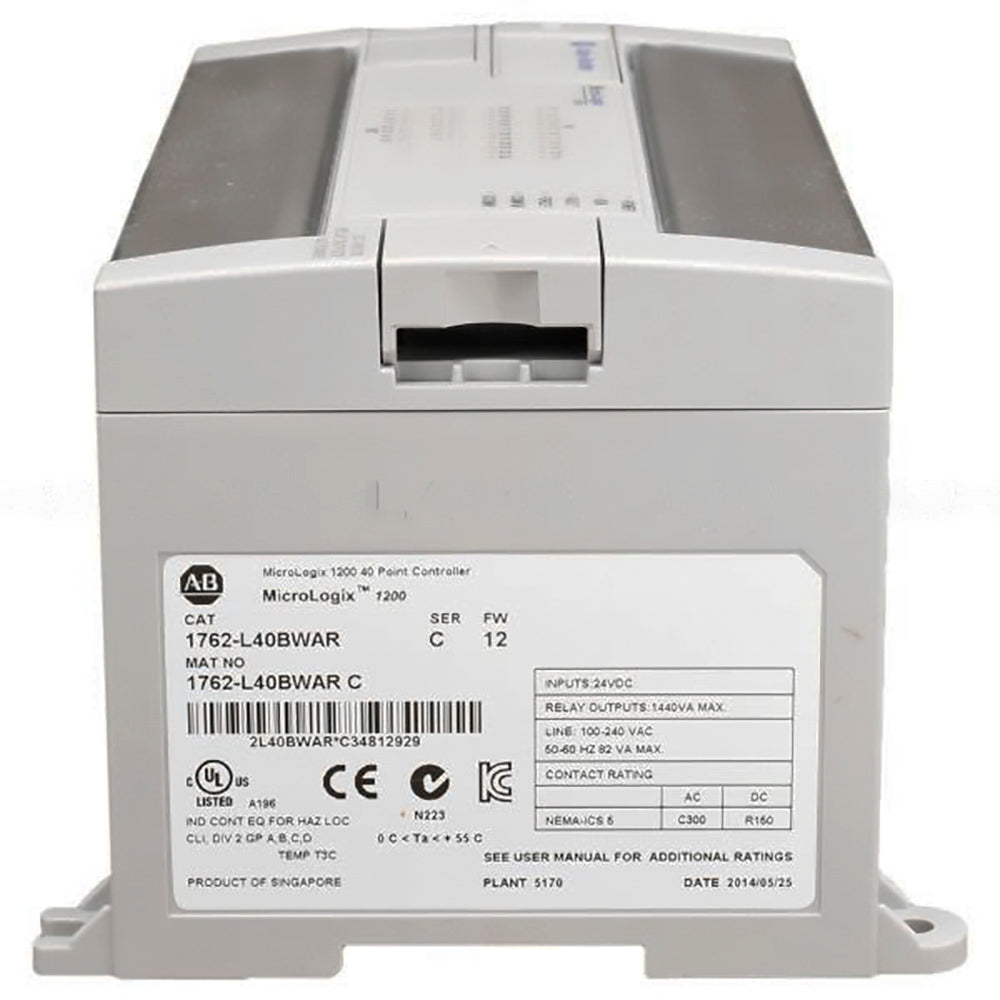

1762-L40BWAR |
Power supply inrush current |
120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
Input Circuit Type |
24 VDC sink / source |
Power Supply Usage |
82 VA |
Series |
MicroLogix 1200 |
Product Type |
Programmable Controller |
Outputs |
(16) Relay |
Input Power |
120 to 240 Volts AC |
Inputs |
(20) 24 Volt DC and (4) Fast 24 Volt DC |
Heat Dissipation |
22 Watts |
Inrush Current |
25 Amps/8 milliseconds and 40 Amps/4 milliseconds |
UPC |
10781180463874 |
UNSPSC |
32151705 |
