Manufacturer |
Rockwell Automation |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

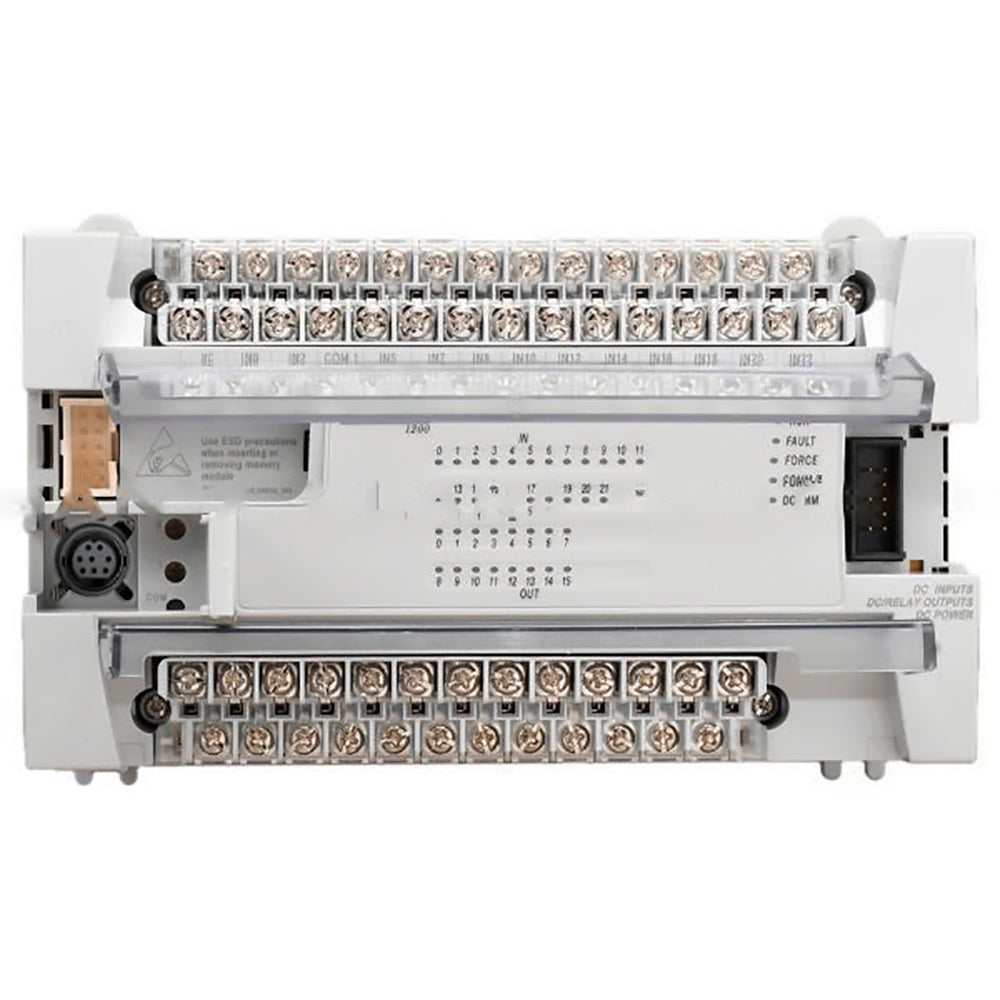

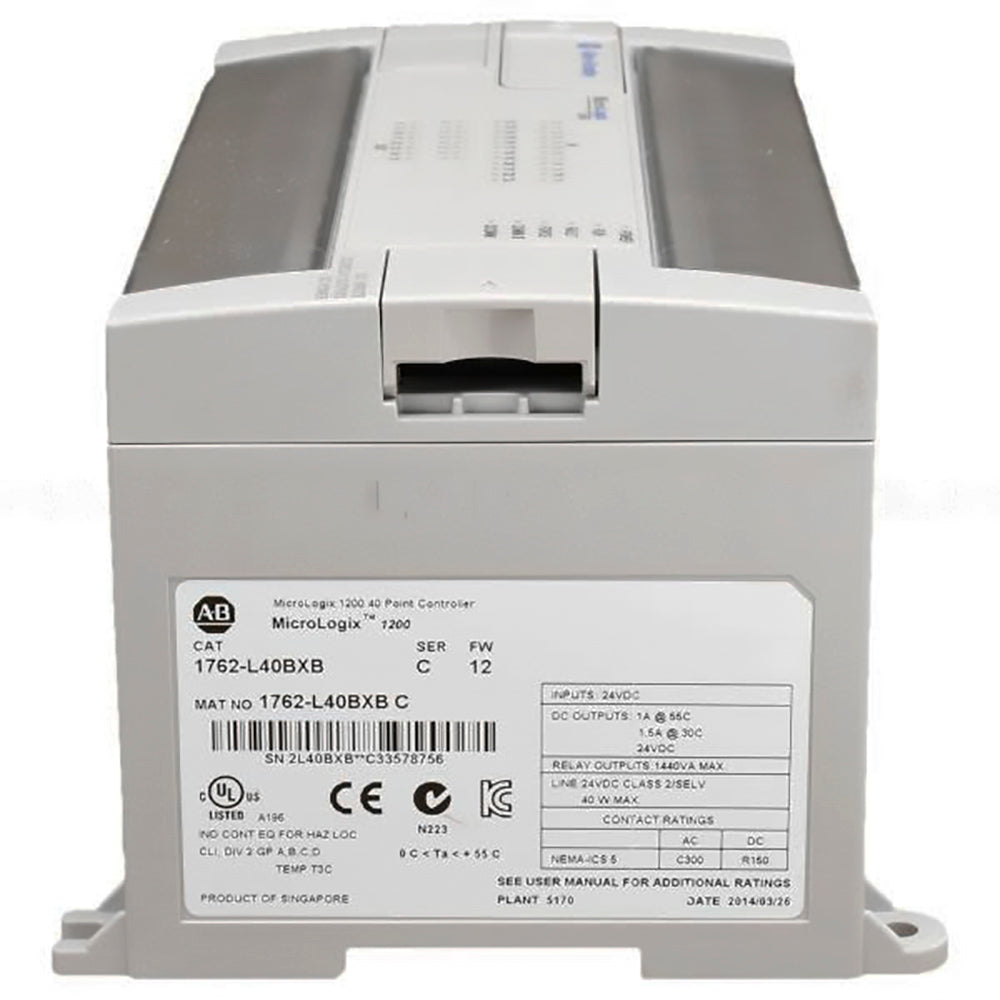

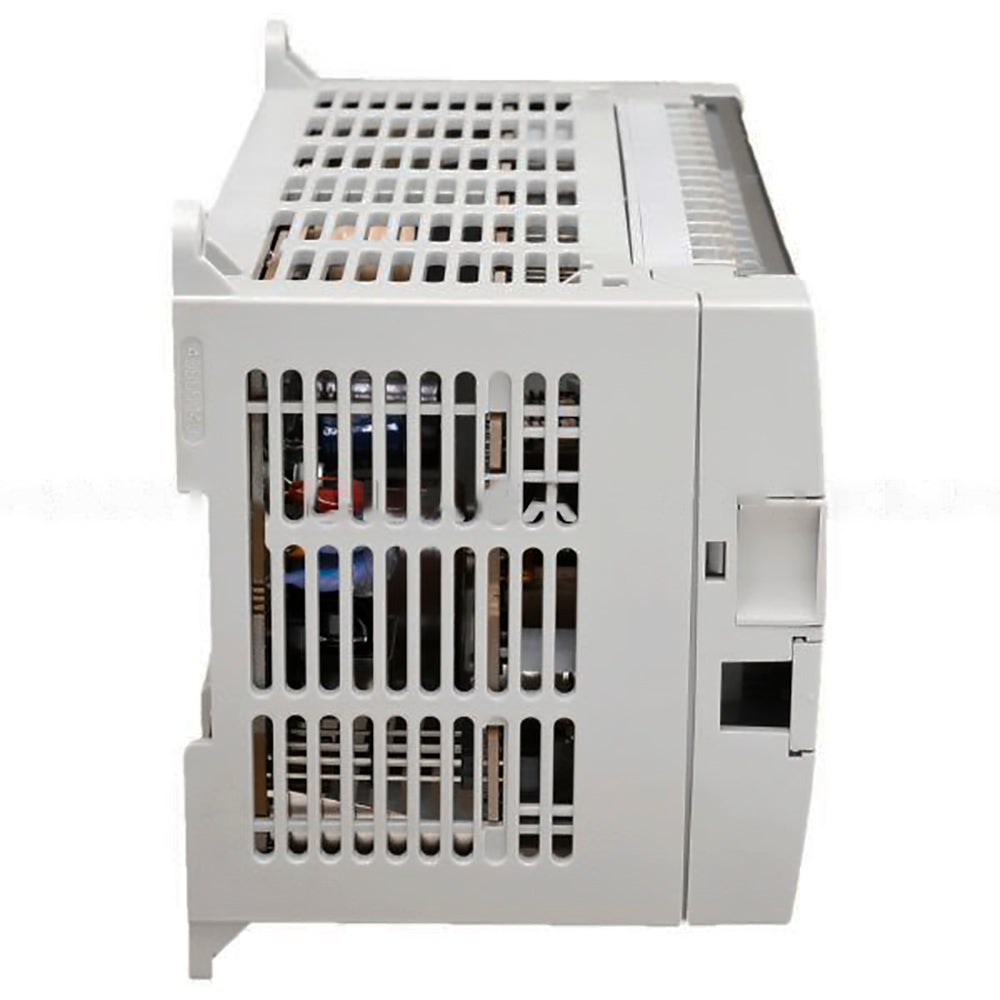

1762-L40BXB |
Series |
MicroLogix 1200 |
Product Type |
Programmable Controller |
Power Supply |
24V dc ( -15%, +10%) Class 2 SELV |
No. of Inputs |
Twenty-Four (24) |
Outputs |
(8) Relay, (7) 24 Volt DC FET, and (1) High-Speed 24 Volt DC FET |
Input Power |
24 Volts DC |
No. of Outputs |
Sixteen(16) |
Input Circuit Type |
24 Volts DC Sink/Source |
Inputs |
(20) 24 Volt DC and (4) Fast 24 Volt DC |
Power Supply Voltage |
100 to 240 Volts |
Output Circuit Type |
Relay / FET |
Weight |
2.4 pounds |
Relay Contact Rating |
24-125VDC; 120-240VAC |
Mechanical Cycles |
20,000,000 |
Heat Dissipation |
21 Watts |
Load Current |
10A, minimum |
Operating Frequency |
0 to 20 kHertz |
Dimensions |
Height: 90 mm 104 mm (with DIN latch open); Width: 160 mm; Depth: 87 mm |
Ambient Operating Temp |
0 to 55 degrees Celsius |
Power Supply Usage |
82 VA |
Power supply inrush current |
120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
