| Manufacturer | Rockwell Automation |

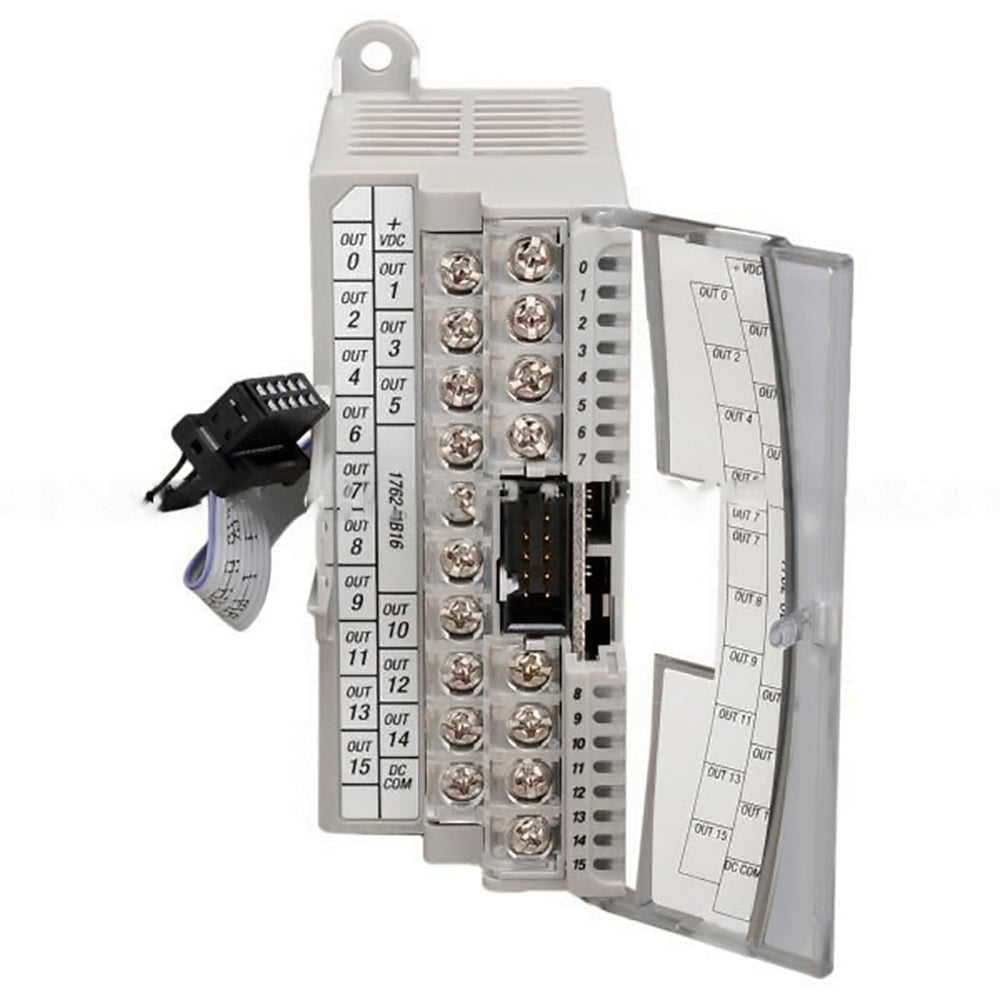

| Part Number/Catalog No. | 1762-OB16 |
| No. of installation: | Four (4) with MicroLogix 1100; Six (6) with MicroLogix 1200; Seven (7) with MicroLogix 1400. |
| Output Groups: | Group 1: Outputs 0…15 |
| No. of Groups: | 1 groups |
| No. of Inputs: | 16 |
| Voltage Category: | 24VDC |
| Output Voltage Range: | 20.4-26.4VDC |
| Brand | Allen-Bradley |
| Product Type | Discrete Output Module |
| Compatible Controllers: | MicroLogix 1100, 1200 and 1400 |
| Signal delay, On: | 0.1 ms |
| Signal Delay, Off: | 1.0 ms |
| Bus current draw, max: | 175 mA @ 5V DC (0.88W) |
| Series | MicroLogix 1200 |
| Outputs | (16) Sourcing |
| Mounting | DIN Rail |
| Input Power | 24 Volts DC |
| Operating Voltage Range | 20 to 26.4 Volts DC |
| Maximum Surge Current | 2.0 A |
| Maximum Bus Current Draw | 175 mA at 5 Volts DC |
| Maximum Operating Altitude | 2000 meters |
| UPC | 10611320320579 |
| UNSPSC | 32151601 |
