Brand |
Allen-Bradley |
Part Number/Catalog No. |

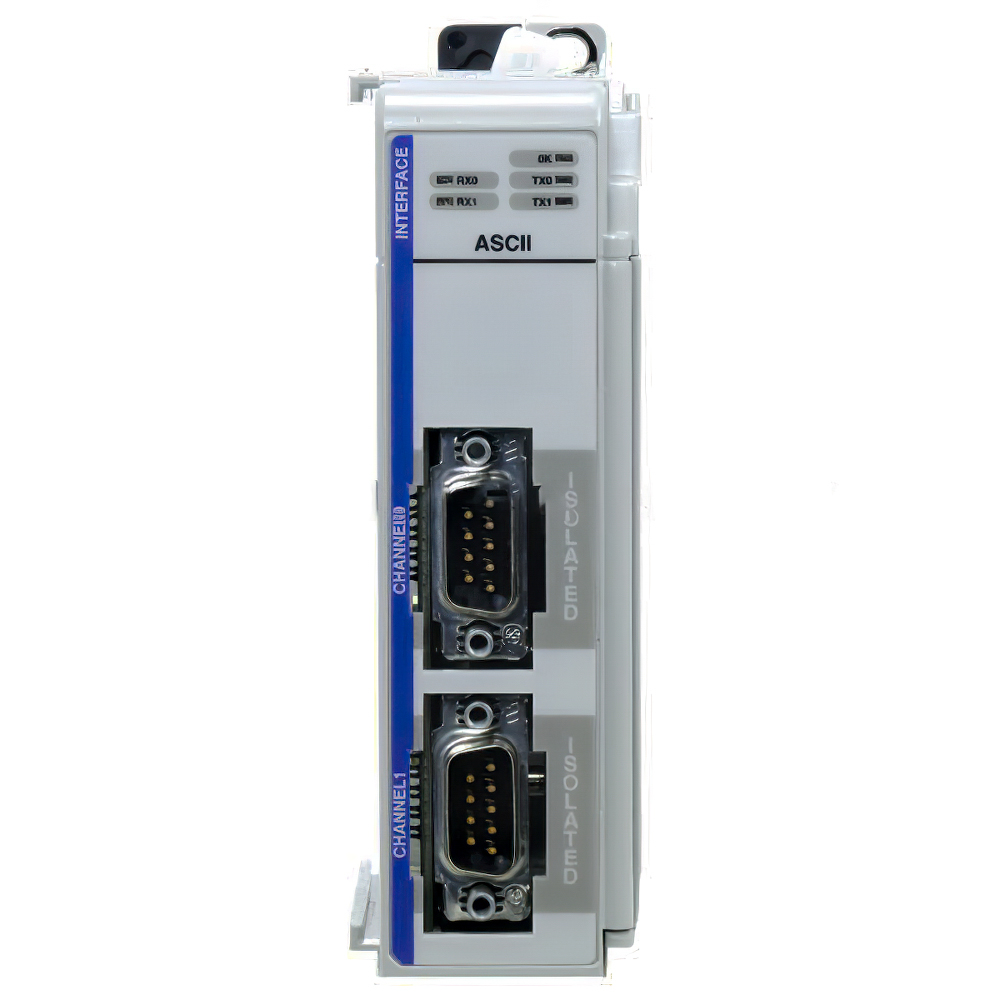

1769-ASCII |
Product Type: |
Specialty module |
Product Line |
CompactLogix |
Description: |
ASCII communication module |
Module Type |
Communication Interface Module |
Mounting: |
Chassis mount; DIN Rail or Panel |
Power Rating: |
425mA @ 5Vdc |
Shipping Weight |
2 lbs. |
CompactLogix Power Supply Distance Rating: |
4 |
Power Dissipation, Max: |
2.13 Watts |
Shipping Dimensions |
8 x 8 x 5 in. |
Thermal Dissipation: |
7.3 BTU/hr. |
Series |
A and B |
Handshaking |
RTS/CTS Hardware Handshaking Enabled |
Temperature Range: |
0-62 deg. C (32 to 140 deg. F) |
Input Words |
108 |
Isolation Voltage |
30 Volts Continuous |
Backplane Current |
1.4 Amps at 24 Volts |
Configuration Words: |
31 |
Power Consumption |
33.6 Watts |
Number of Inputs: |
2 full duplex (RS-232, RS-422) 2 half duplex (RS-485) |
Power Dissipation |
7.5 Watts |
Serial Input Voltage Signal: |
3…25V dc with respect to signal ground (SG) “0”, Asserted, ON, Space, Active -3…-25V dc with respect to signal ground (SG) “1”, Disasserted, OFF, Mark, Inactive |
Recommended cable: |
Belden 8761 (Shielded) |
UPC |
10612598314239 |
Serial Port status: |
TX FIFO overflow, RX FIFO overflow, RX parity error, handshake error, new data flag |
Transmits Transaction ID: |
0…255 |
