Manufacturer |
Rockwell Automation / Allen-Bradley |
Product Type: |
Analog Input Module |
No. of Inputs: |
16 Single Ended Inputs |
Power Supply Distance rating: |
8 |
Input current range: |
0-21 mA |
Current signal normal ranges: |
0-20mA; 4-20 mA |
Current signal full range: |
0-21 mA; 3.2 - 21 mA |
Compatible Controllers: |
MicroLogix 1500; CompactLogix |
Resolution: |
16 bits (unipolar) 15 bits plus sign (bipolar) |
Channel Diagnostics: |
Over- or under-range by bit reporting, process alarms |
Slot width: |
1 |
Recommended cable: |
Belden™ 8761 (shielded) |
Dimension: |
118 mm (height) x 87 mm (depth) x 35 mm (width) [52.5 mm (width) for 1769-IF8] Height including mounting tabs is 138 mm 4.65 in (height) x 3.43 in (depth) x 1.38 in (width) [2.07 in (width) for 1769-IF8] Height including mounting tabs is 5.43 in |
Brand |
Allen-Bradley |
Part Number/Catalog No. |
1769-IF16C |
Product Line |
CompactLogix |
Module Type |

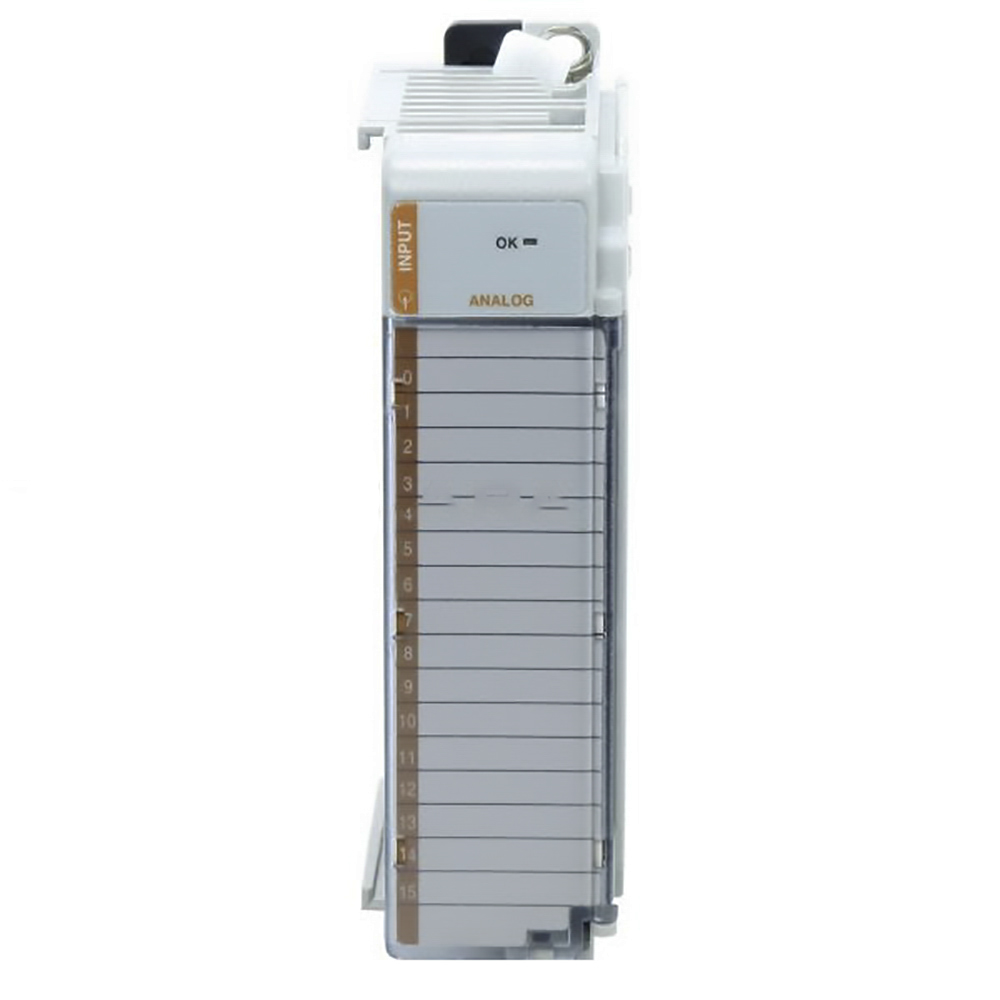

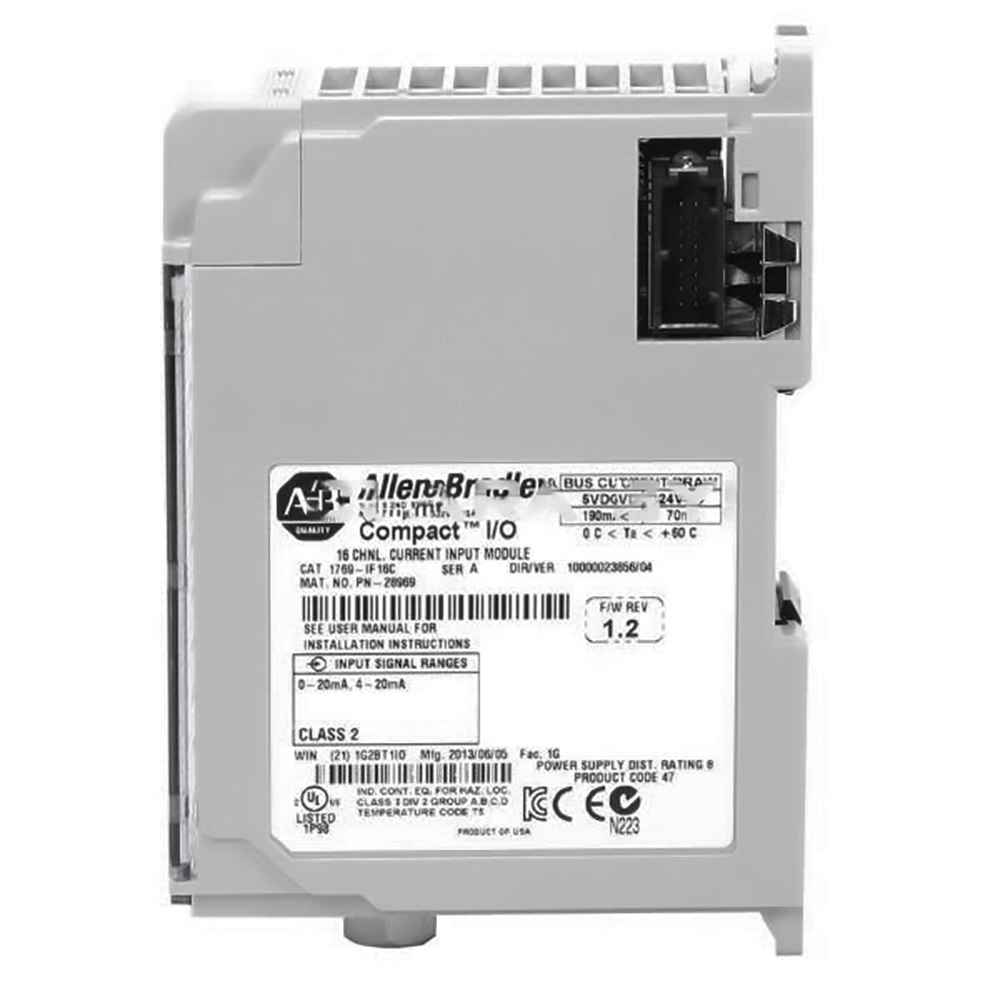

16 Point Analog Current Input Module |
Input Type |
Analog Input |
Shipping Weight |
2 pounds |
Shipping Dimensions |
8 x 8 x 5 inches |
Series |
A and B |
Enclosure Type |
Open |
Backplane Current |
1.4 Amps at 24 Volts |
Power Consumption |
33.6 Watts |
Power Dissipation |
7.5 Watts |
Isolation Voltage |
30 Volts DC |
UPC |
10612598626783 |
