Manufacturer |
Rockwell Automation |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

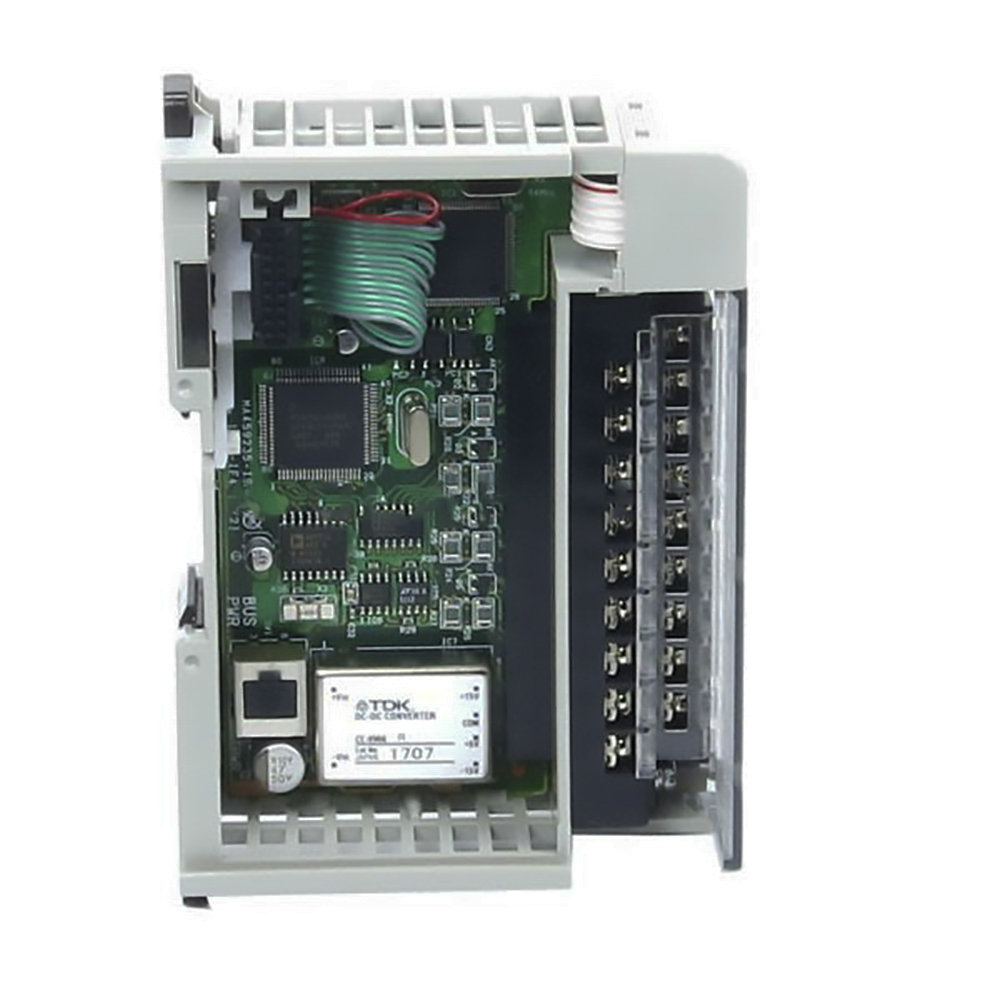

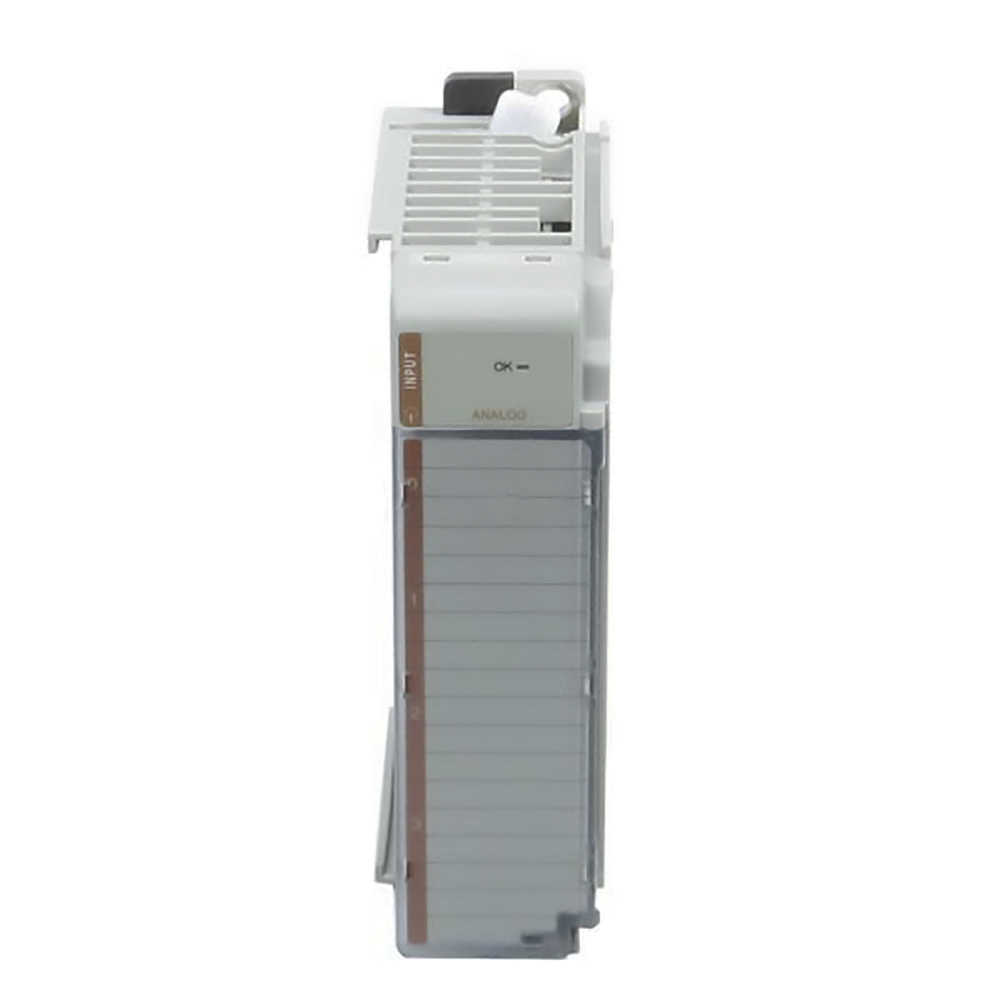

1769-IF4 |
Product Line |
CompactLogix |
Module Type |
4 Channel Analog Input Module |
Product Type |
Analog Input Module |
Input Type |
Analog Input |
Compatible Controllers: |
MicroLogix 1500; 1769 CompactLogix |
No. of Inputs: |
4 Differential and Single Ended Inputs |
Communication Cable |
4 Point |
Shipping Weight |
2 lbs. |
Power Supply Distance rating: |
8 |
Shipping Dimensions |
8X8X5 in. |
Input current range: |
0-21 mA |
Current signal normal ranges: |
0-20mA; 4-20 mA |
Series |
A and B |
Converter Type |
Delta Sigma |
Current signal full range: |
0-21 mA; 3.2 - 21 mA. |
Backplane Current |
1.4 Amps at 24 Volts |
Input voltage range: |
0-10.5VDC |
Power Consumption |
33.6 Watts |
Voltage signal normal ranges: |
±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC |
External Power Switch |
24 VDC |
Voltage signal full range: |
±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC |
Power Dissipation |
7.5 Watts |
Resolution: |
14 bits (unipolar) 14 bits plus sign (bipolar) |
UPC |
10662468992937 |
Rated working voltage: |
30VAC; 30VDC |
