Brand |
Allen-Bradley |
Part Number/Catalog No. |

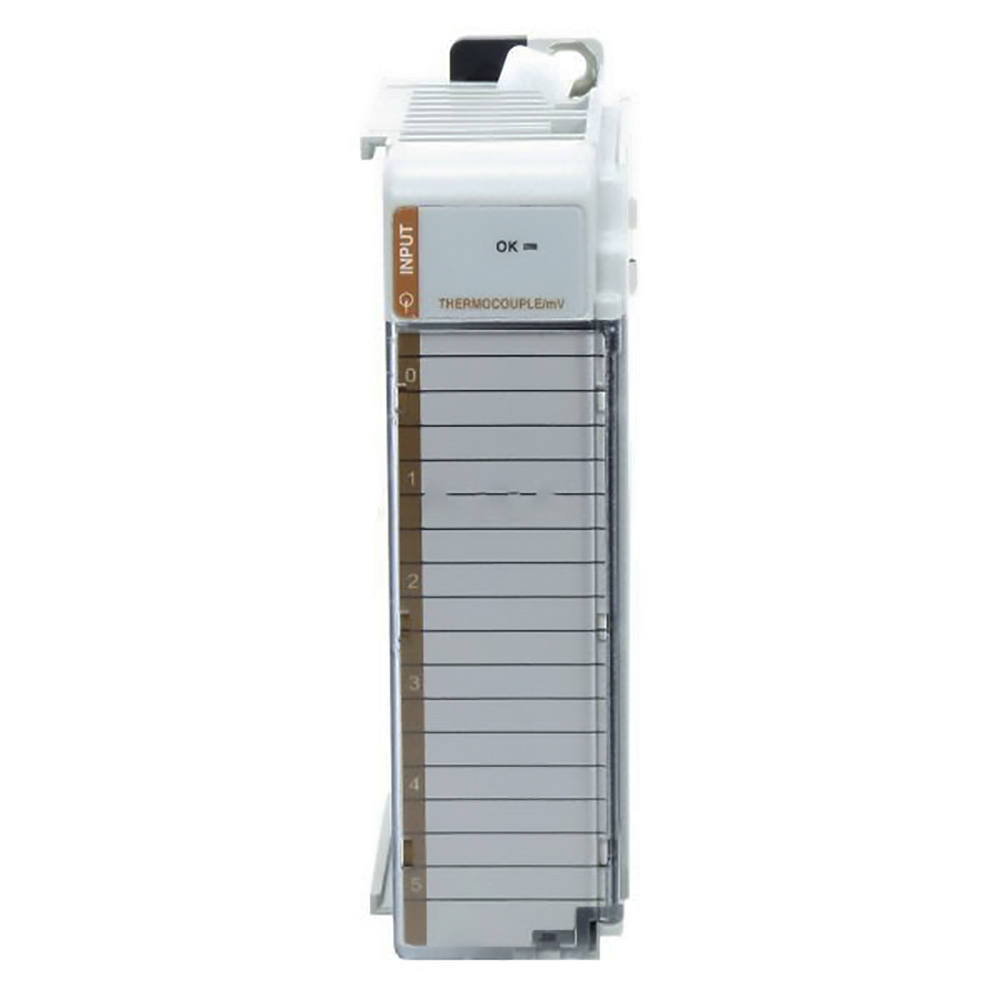

1769-IT6 |
Product Line |
CompactLogix |
Module Type |
Thermocouple Module |
Input Type |
Thermocouple |
Communication Cable |
6 Point |
Shipping Weight |
2 lbs. |
Shipping Dimensions |
8 x 8 x 5 in. |
Series |
A and B |
Converter Type |
Delta Sigma |
Replacement Door Label Part Number |
1769-RL2 series B |
Replacement Terminal Block Part Number |
1769-RTBN18 |
Wire Type |
Copper-90 degrees Celsius |
Wire Size (Solid) |
22-14 AWG |
UPC |
10611320314424 |
Product Family: |
Compact I/O Modules |
Power Supply Distance Rating: |
8 modules |
CJC accuracy: |
±1.0 °C (±1.8 °F) |
CJC sensor accuracy: |
±0.3 °C (±0.54 °F) |
Calibration: |
Performed during power-up; programmable |
Nonlinearity: |
±0.03% |
Heat dissipation, max: |
1.5W |
Current draw @ 24V: |
40 mA |
Current draw @ 5.1V: |
100 mA |
millivolt signal: |
+/- 50mV and +/-10mV |
Sensors supported: |
J, K, T, E, R, N, S, B, N, C, CJC, |
Compatible Adapters: |
1769-ADN (DeviceNet); 1769-AENTR (Ethernet) |
No. of Inputs: |
6 |
Part Number: |
1769- IT6 |
Product Type: |
Thermocouple / milivolt Input Module |
