Product Family: |
Compact I/O modules |
Slot width: |
1 |
Overall accuracy: |
±0.5% full scale @ 25 °C (77 °F) |
Calibration: |
None required (guaranteed by hardware design) |
Conversion rate: |
5 ms |
Bus Current Draw (max.): |
5V DC, 145 mA 24V DC, 135 mA |
Analog data format: |
Raw / Proportional data, Engineering unit, Scaled for PID and Percent full range. |
Full scale analog ranges: |
± 10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc |
Analog Ranges: |
± 10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc |
Power Supply Distance rating: |
8 |
Compatible Controllers: |
MicroLogix 1500; CompactLogix |
No. of Outputs: |
Eight (8) Single Ended |
Product Type: |

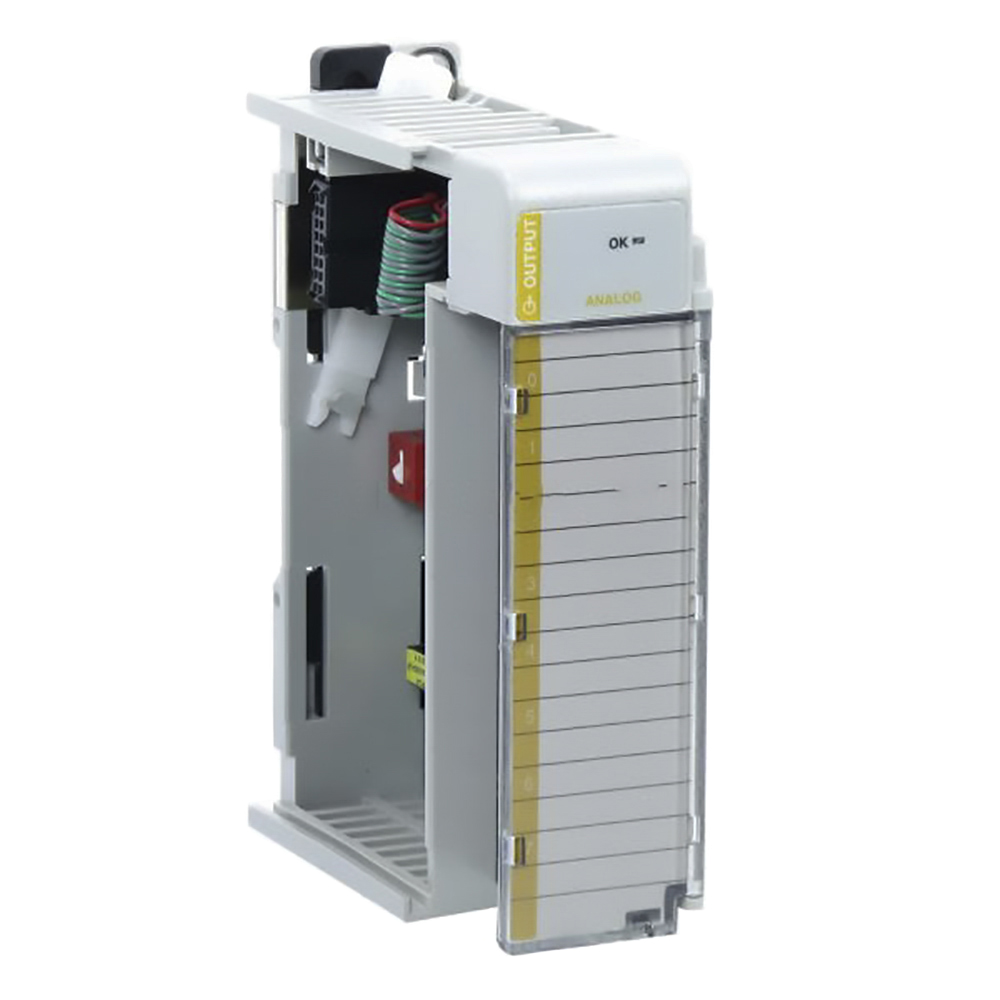

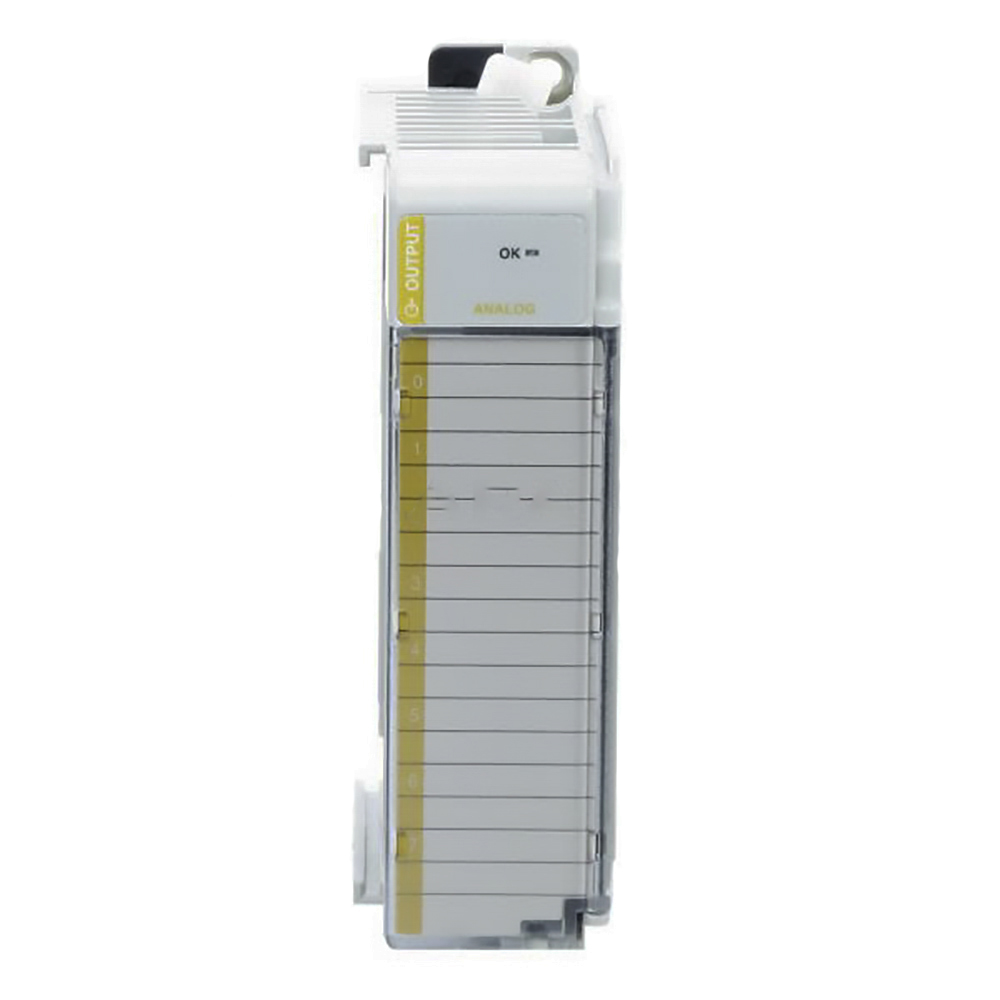

Analog Output Module |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

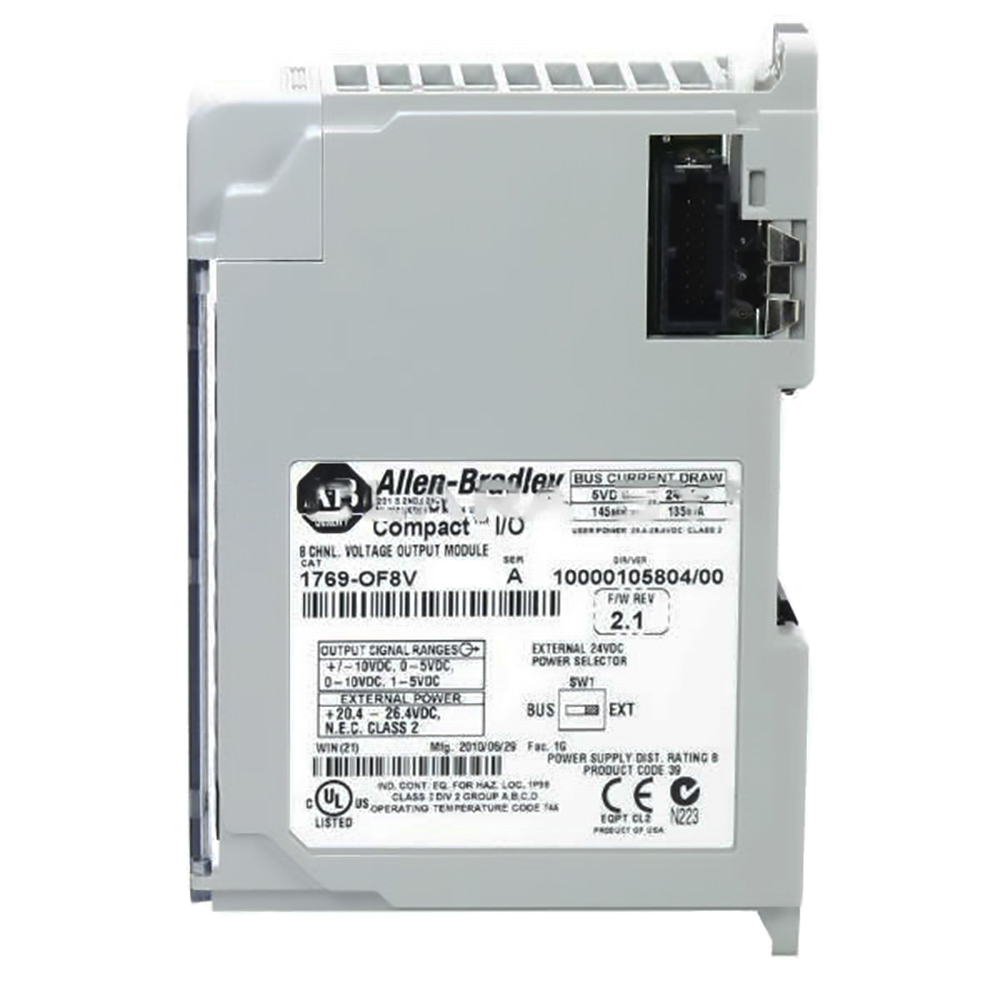

1769-OF8V |
Product Line |
CompactLogix |
Module Type |
Analog Voltage Output Module |
Input Type |
Output Voltage |
Communication Cable |
8 Point |
Shipping Weight |
2 lbs. |
Shipping Dimensions |
8 x 8 x 5 in. |
Series |
A and B |
Outputs |
8 Single-Ended |
Output Range |
0-10 Volts |
Enclosure |
Open |
Wire Type |
Copper-90? |
Solid Wire Size |
22?14 AWG |
Stranded Wire Size |
22?16 AWG |
UPC |
10662468861387 |
