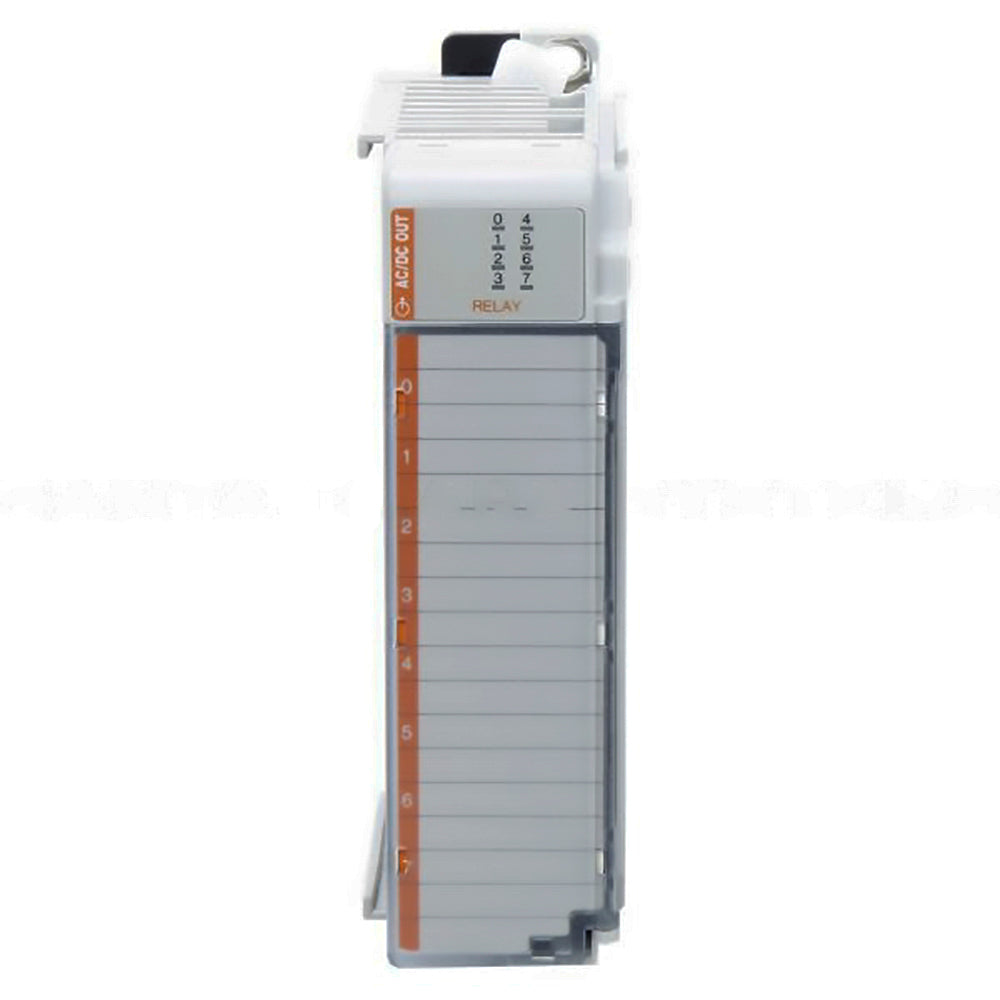

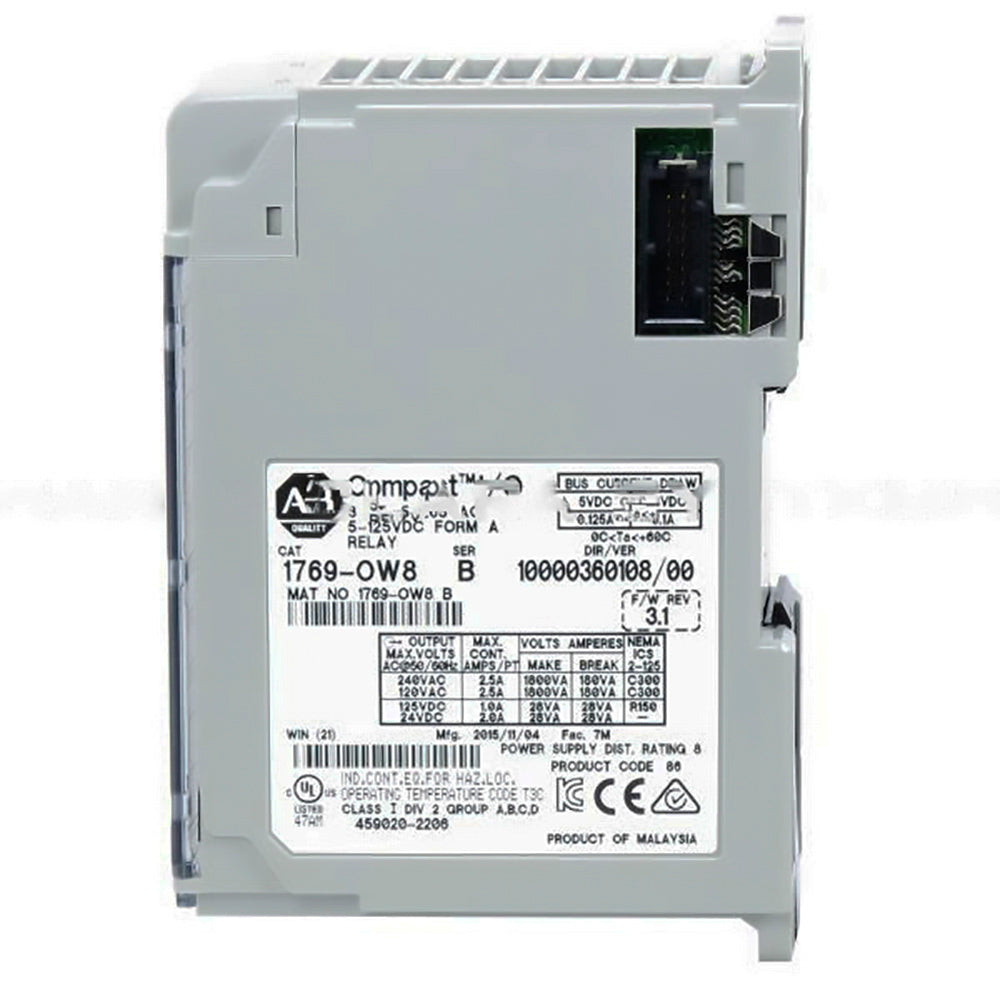

Manufacturer |
Rockwell Automation / Allen-Bradley |
Brand |
Allen-Bradley |
Product Family: |
Compact I/O |
Part Number/Catalog No. |
1769-OW8 |
Product Type: |
Discrete Output Module |
Product Line |
CompactLogix |
Module Type |
Relay Output Module |
No. of outputs: |
Eight (8) |
Input Type |
Relay Output |
Power Supply Distance rating: |
8 |
Communication Cable |
8 Point |
Shipping Weight |
2 pounds |
Compatible controllers: |
MicroLogix 1500; CompactLogix controllers |
Shipping Dimensions |
8 x 8 x 5 inches |
Voltage Category: |
AC/DC normally open relay |
Series |
A and B |
Operating Voltage range: |
5 to 265V ac 5 to 125V dc |
Signal delay, On: |
10 ms |
Wire Size (Solid) |
22 to 14 AWG |
Wire Size (Stranded) |
22 to 16 AWG |
Bus Current draw, 5.1 V: |
125 mA |
Bus Current draw, 24 V: |
100 mA |
Wire Type |
Copper-90 degrees |
Wire Type |
Copper-90 degrees |
Heat Dissipation: |
2.83 Watts |
Solid Wire Size |
22 to 14 AWG |
Stranded Wire Size |
22 to 16 AWG |
Slot width: |
1 |
UPC |
10662468992890 |
Mounting: |
DIN Rail or Panel Mount |
Dimensions: |
118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.) |
Power Supply: |
1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
Wire Size: |
(22…14 AWG) solid (22…16 AWG) stranded |
