Manufacturer |
Rockwell Automation / Allen-Bradley |
Brand |
Allen-Bradley |
Part Number/Catalog No. |

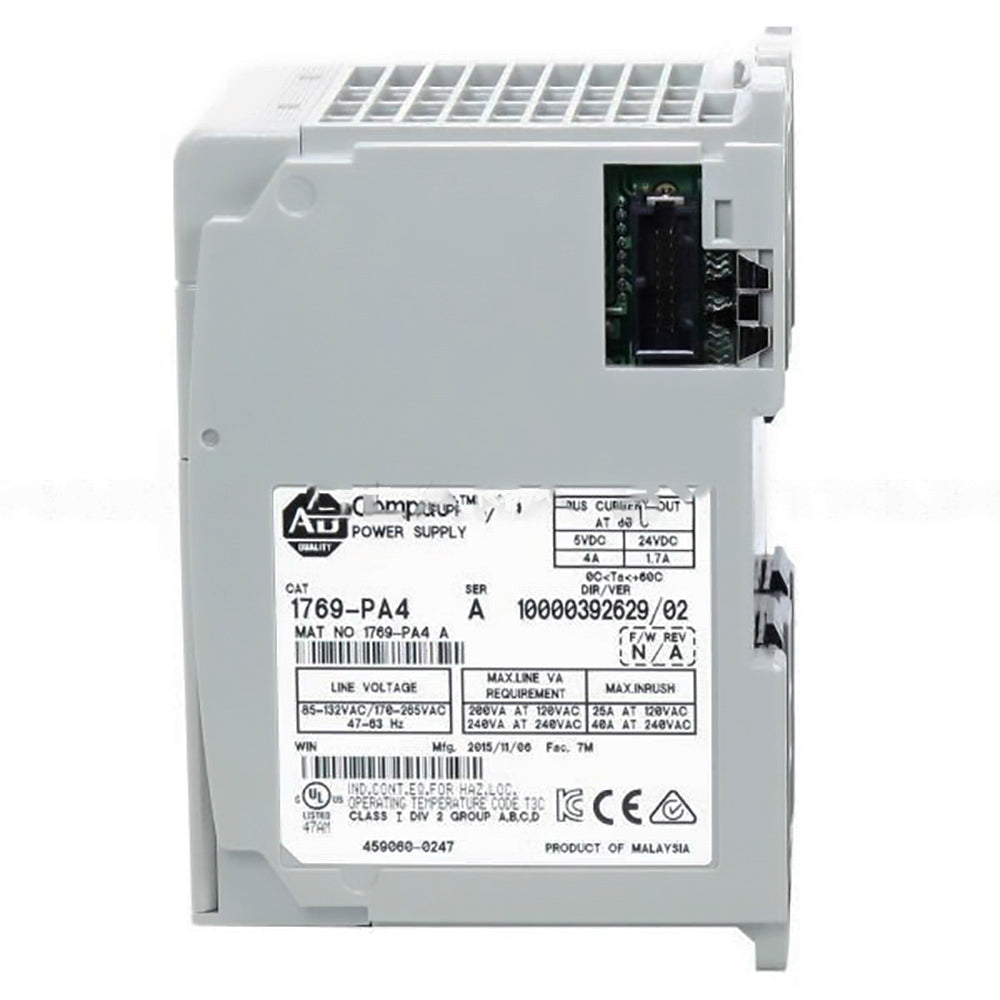

1769-PA4 |
Product Line |
CompactLogix |
Product Type: |
I/O Power Supply |
Module Type |
AC Power Supply Module |
Input Power |
120 Volts AC |
Input Voltage range: |
85…265V AC or 170...265V AC, switch selectable |
Input frequency range: |
47…63 Hz |
Shipping Dimensions |
8 x 8 x 5 inches |
Power consumption: |
200 VA @ 120V AC 240 VA @ 240V AC |
Enclosure Type |
None (Open Style) |
Power dissipation: |
8 W @ 60 °C (140 °F) |
Series |
A and B |
Current capacity @ 5V DC: |
4.0 A |
Current capacity @ 24V DC: |
2.0 A |
Warranty |
1 year |
Inrush current, max: |
25 A @ 132V AC |
Wire Type |
Copper wire withstanding 90 degrees Celsius |
Fuse type: |
Littelfuse 02153.15MXP; Wickmann 19195-3.15A |
Solid Wire Size |
22 to 14 AWG |
Input Frequency |
47 to 63 Hertz |
Stranded Wire Size |
22 to 16 AWG |
Weight: |
525 g (1.16 lb) |
UPC |
10612598276889 |
Certifications: |
c-UL-us; CE; C-Tick |
