Brand |
Allen-Bradley |
Manufacturer |
Rockwell Automation |
Product Description: |

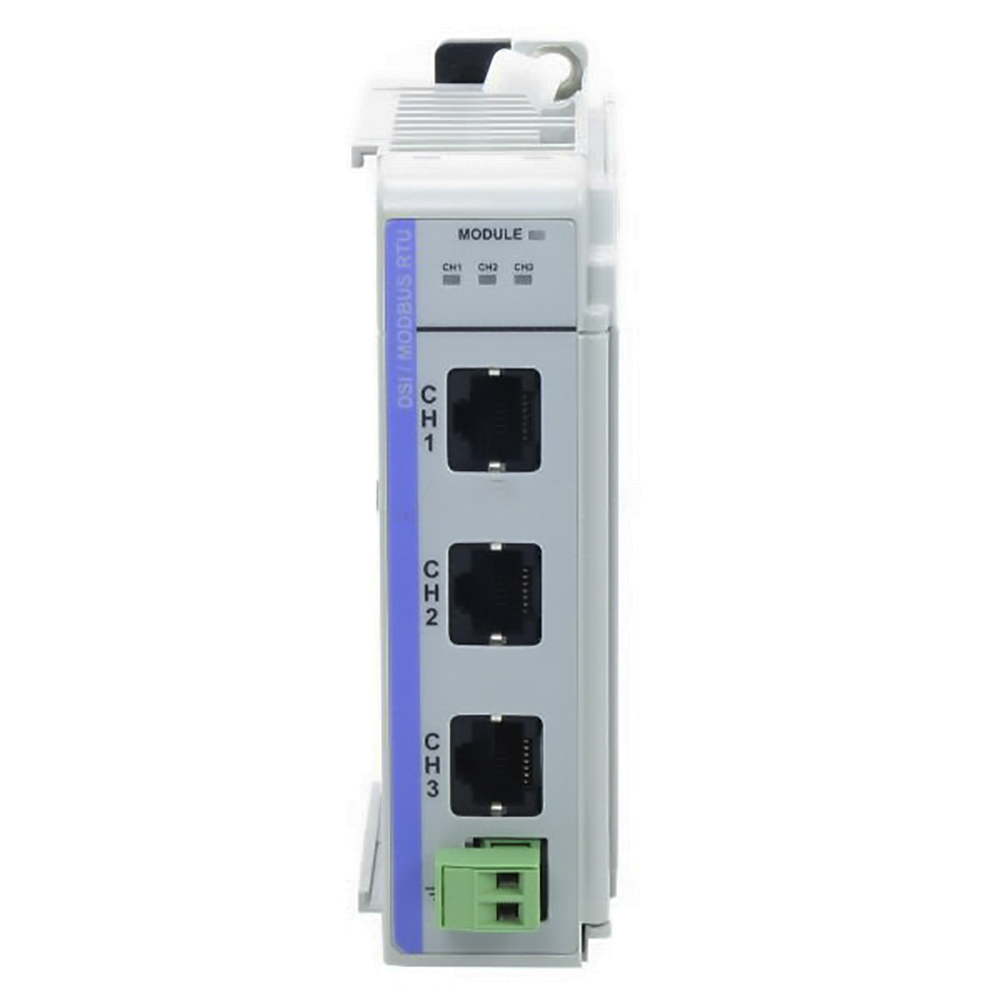

Compact I/O DSI / MOODBUS communication module |
Module Width |
Single Slot |
Compatible controllers: |
CompactLogix; MicroLogix 1500 |
Compatible PowerFlex drive: |
PowerFlex 4 and PowerFlex 7 class drives |
Supported protocols: |
Drive Serial Interface (DSI); MODBUS RTU |
DSI Data Transfer speed: |
19200 bps |
MODBUS Transfer speed: |
300, 600, 1200, 2400, 4800, 9600, 19200, or 38400 bps |
Current draw: |
350 mA @ 5Vdc and; 0 mA @ 24Vdc supplied by the Compact I/O Power Supply |
Mounting: |
DIN Rail; Panel Mounting |
Operating Temperature: |
-10…50 °C (14…122 °F) |
Storage Temperature: |
-40…85 °C (-40…185 °F) |
Vibration: |
5g, 10 to 500 Hz |
Operating Shock: |
30g, 11 ms |
Part Number/Catalog No. |
1769-SM2 |
Product Line |
CompactLogix |
Module Type |
DSI/Modbus Module |
Shipping Weight |
2 lbs. |
Shipping Dimensions |
8X8X5 in. |
Series |
A and B |
Power Supply Distance Rating |
8 Modules |
Wire Type |
Copper-90? |
Solid Wire Size |
22?14 AWG |
Stranded Wire Size |
22?16 AWG |
UPC |
820919134630 |
