Manufacturer |
Rockwell Automation |
Indicators: |
1 green/red power/status indicator |
Input type: |
0 to 20 mA; 4 to 20 mA; +/- 10VDC; 0 to 10 VDC |
Conversion Type: |
Successive Approximation |
Data Format: |
16 bit 2’s complement, left justified |
Resolution: |
12 bits unipolar; Voltage: 11 bits plus sign bipolar 2.56mV/cnt unipolar; Current: 5.13mV/cnt bipolar 5.13?A/cnt |
Absolute Accuracy: |
0.20% full scale @ 25 °C |
Accuracy Drift with Temperature: |
Voltage Terminal - 0.00428% Full Scale/°C Current Terminal - 0.00407% Full Scale/°C |
Terminal base: |
1794-TB2, 1794-TB3, and 1794-TB3S, 1794-TB3T, 1794- TB3TS |
No. of inputs: |
Eight (8) Single Ended |
External DC supply, nom: |
24V DC |
External DC supply range: |
10.0…31.2V DC (includes 5% AC ripple) |
Mounting: |
DIN Rail |
Wire Size: |
Determined by installed terminal base |
Operating Temperature: |
0 to 55 C (32 to 131 F) |
Storage Temperature: |
–40…85 °C (–40…185 °F) |
Vibration: |
5g @ 10 to 500 Hz |
Product Description: |

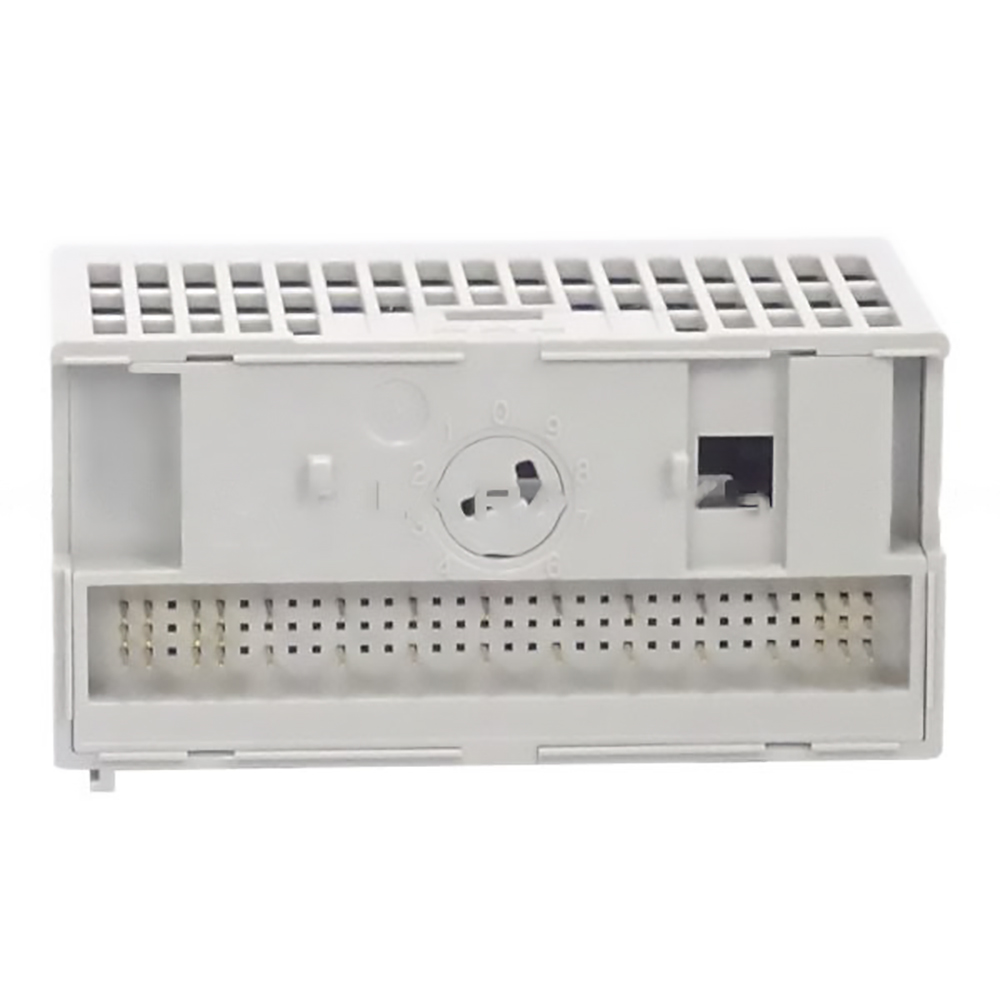

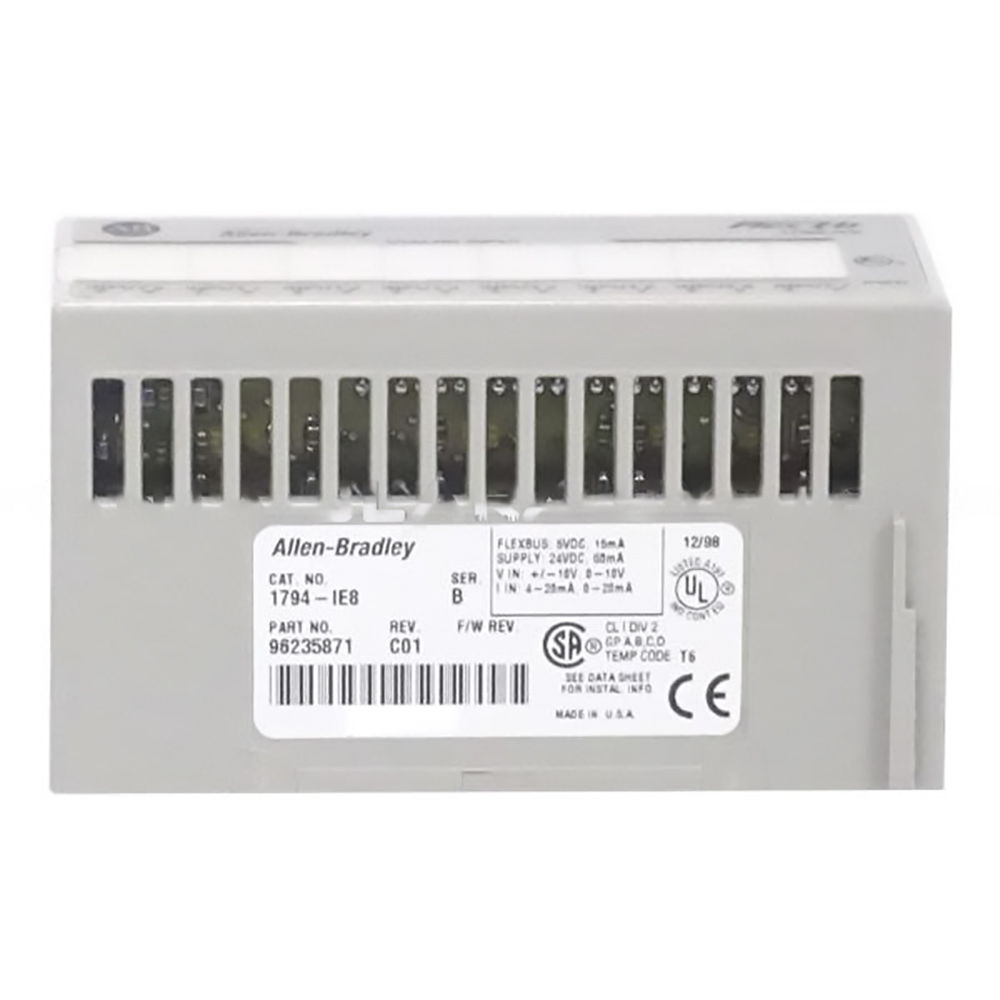

Flex IO High Density Analog Input Module |
Brand |
Allen-Bradley |
Part Number/Catalog No. |
1794-IE8 |
Product Type |
Flex I/O High-Density Analog Module |
Inputs |
8 Single-ended |
Resolution Voltage Current |
5.13 Amps/cnt |
Conversion Rate |
256 seconds |
Input Current Terminal |
4 to 20 mA |
Input Voltage Terminal |
+/- 10 Volts |
External DC Power Supply |
60 mA at 24 Volts DC |
Isolation Voltage |
50 Volts Continuous |
Power Dissipation |
3.0W at 31.2 Volts DC |
Thermal Dissipation |
10.2 BTU/hour at 31.2 Volts DC |
