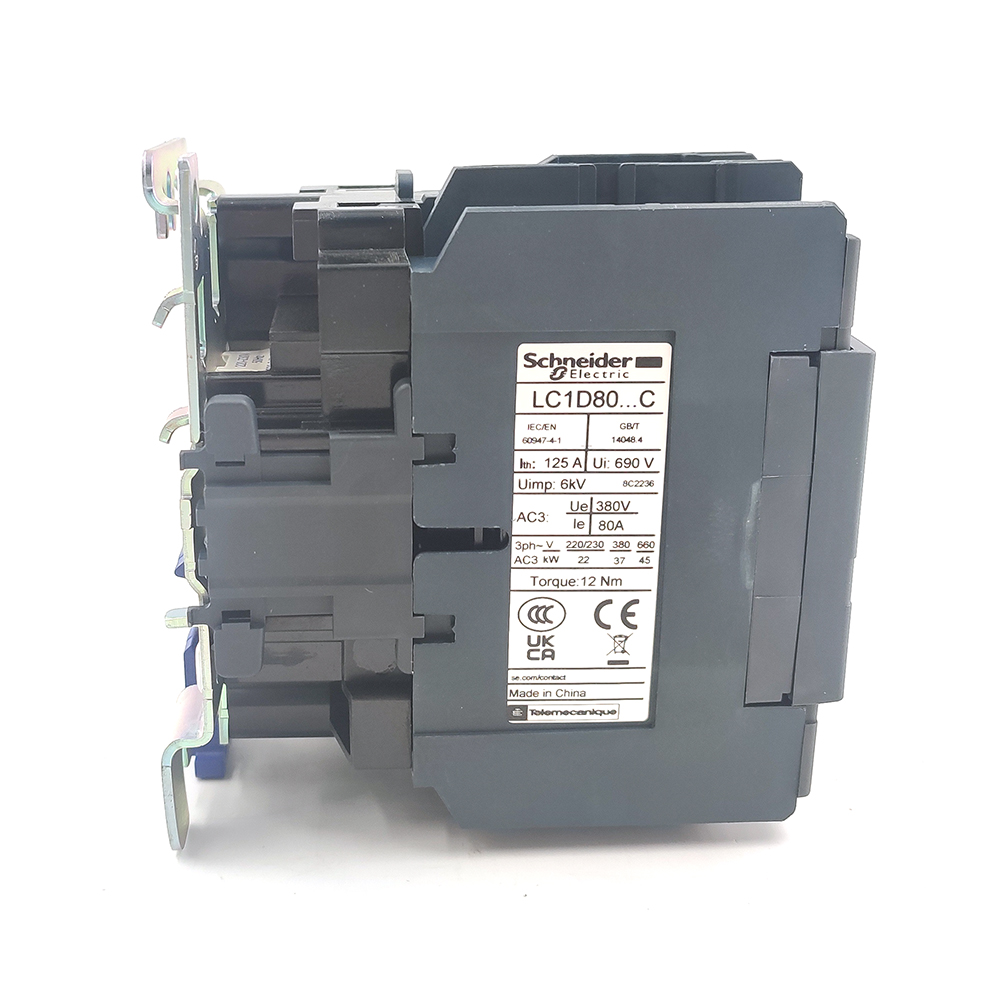

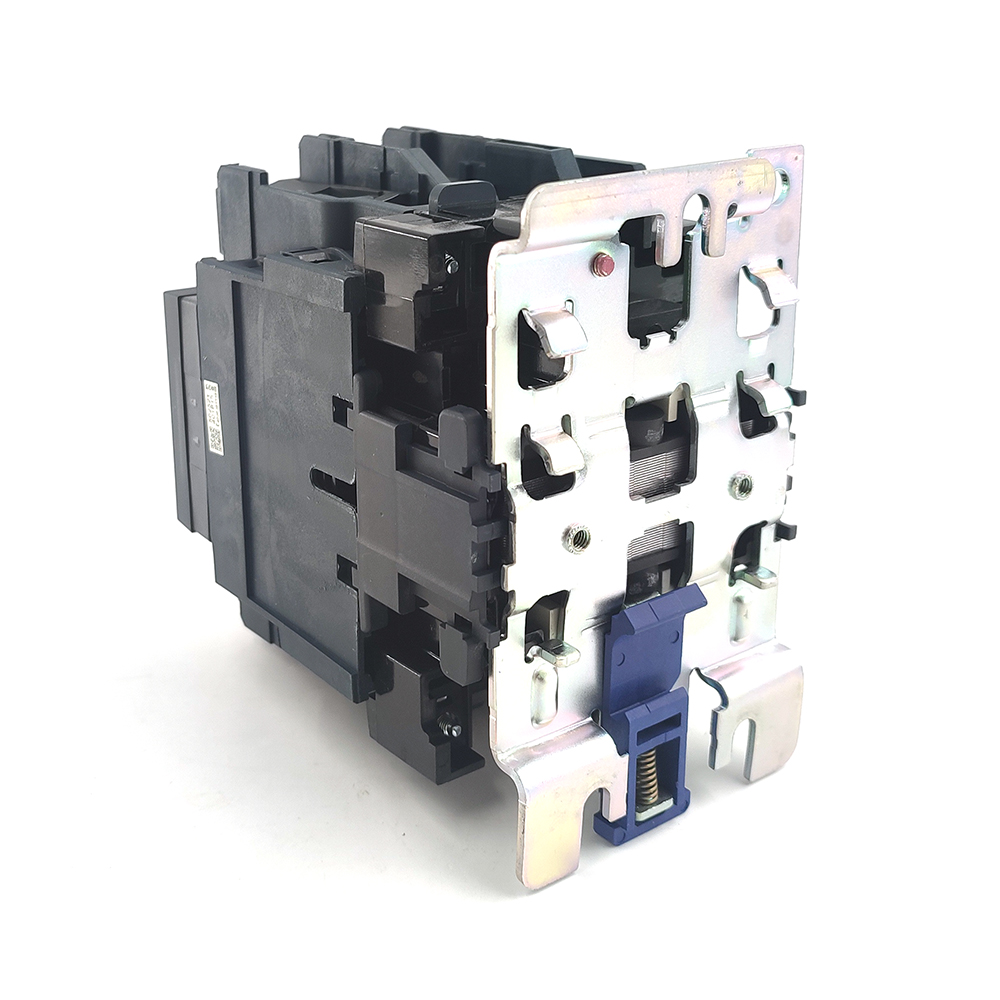

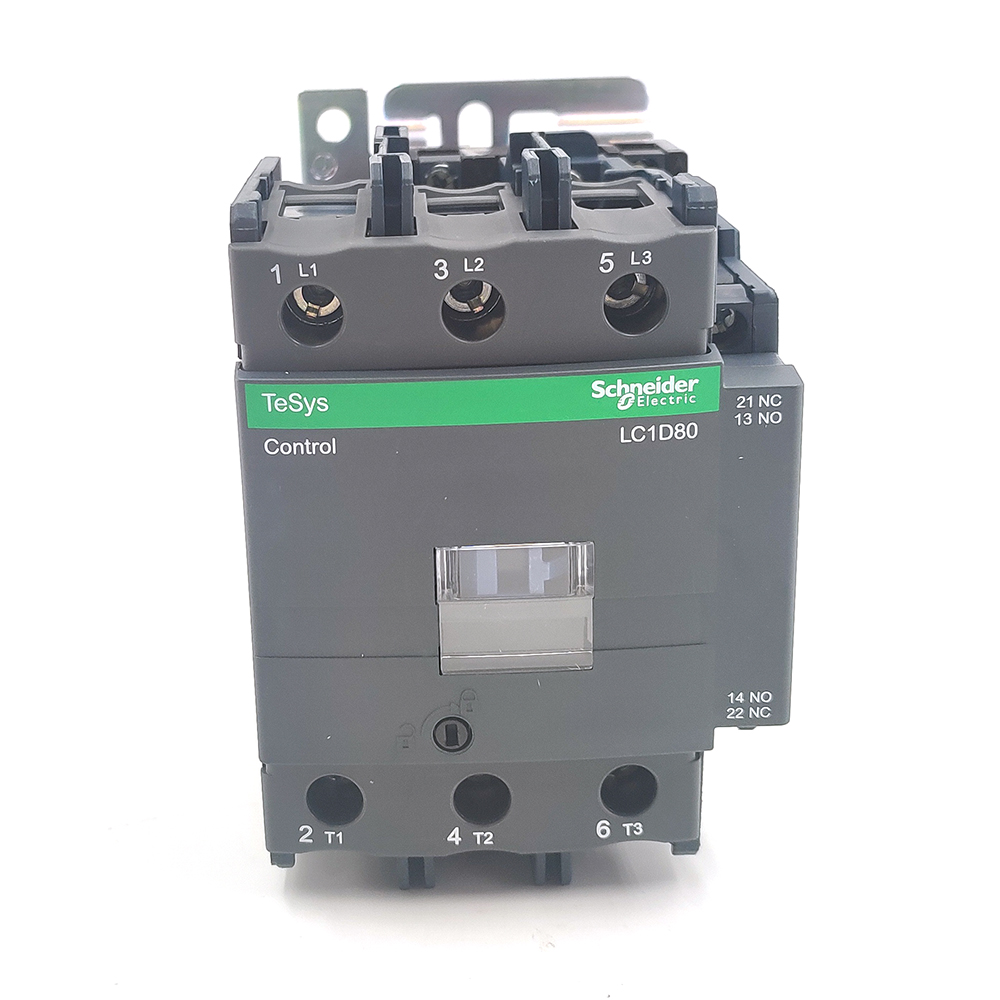

LC1D80M7C TeSys Deca contactor 3P 220V AC 50/60 Hz coil

$65.32

$0.00

Add to cart
Sold Out
LC1D80M7C TeSys Deca contactor 3P 220V AC 50/60 Hz coil
LC1D80M7C TeSys Deca contactor 3P 220V AC 50/60 Hz coil

LC1D80M7C TeSys Deca contactor 3P 220V AC 50/60 Hz coil

In stock, ship within 3-5 days
$6532
$000
Global low-cost shipping
Free returns
Carbon neutral
Secure payments
Quantity
Only 503 left

Checkout Securely with

30 days free return

range TeSys
product name TeSys D
TeSys Deca
product or component type Contactor
device short name LC1D
contactor application Motor control
Resistive load
utilisation category AC-1
AC-4
AC-3
AC-3e
poles description 3P
power pole contact composition 3 NO
[Ue] rated operational voltage Power circuit: <= 300 V DC 25...400 Hz
Power circuit: <= 690 V AC
[Ie] rated operational current 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
control circuit type AC at 50/60 Hz
[Uc] control circuit voltage 220 V AC 50/60 Hz
auxiliary contact composition 1 NO + 1 NC
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
overvoltage category III
[Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit
125 A (at 60 °C) for power circuit
Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
1100 A at 440 V for power circuit conforming to IEC 60947
rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1
200 A gG at <= 690 V coordination type 1 for power circuit
160 A gG at <= 690 V coordination type 2 for power circuit
average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
1.5 Mcycles 80 A AC-3 at Ue <= 440 V
1.5 Mcycles 80 A AC-3e at Ue <= 440 V
power dissipation per pole 5.1 W AC-3
12.5 W AC-1
5.1 W AC-3e
Front cover With
mounting support Plate
Rail
operating time 20...35 ms closing
6...20 ms opening
safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
mechanical durability 4 Mcycles
maximum operating rate 3600 cyc/h 60 °C
delivery time In stock, ship within 3-5 days
