range | TeSys TeSys Deca |
---|---|
range of product | TeSys D TeSys Deca |

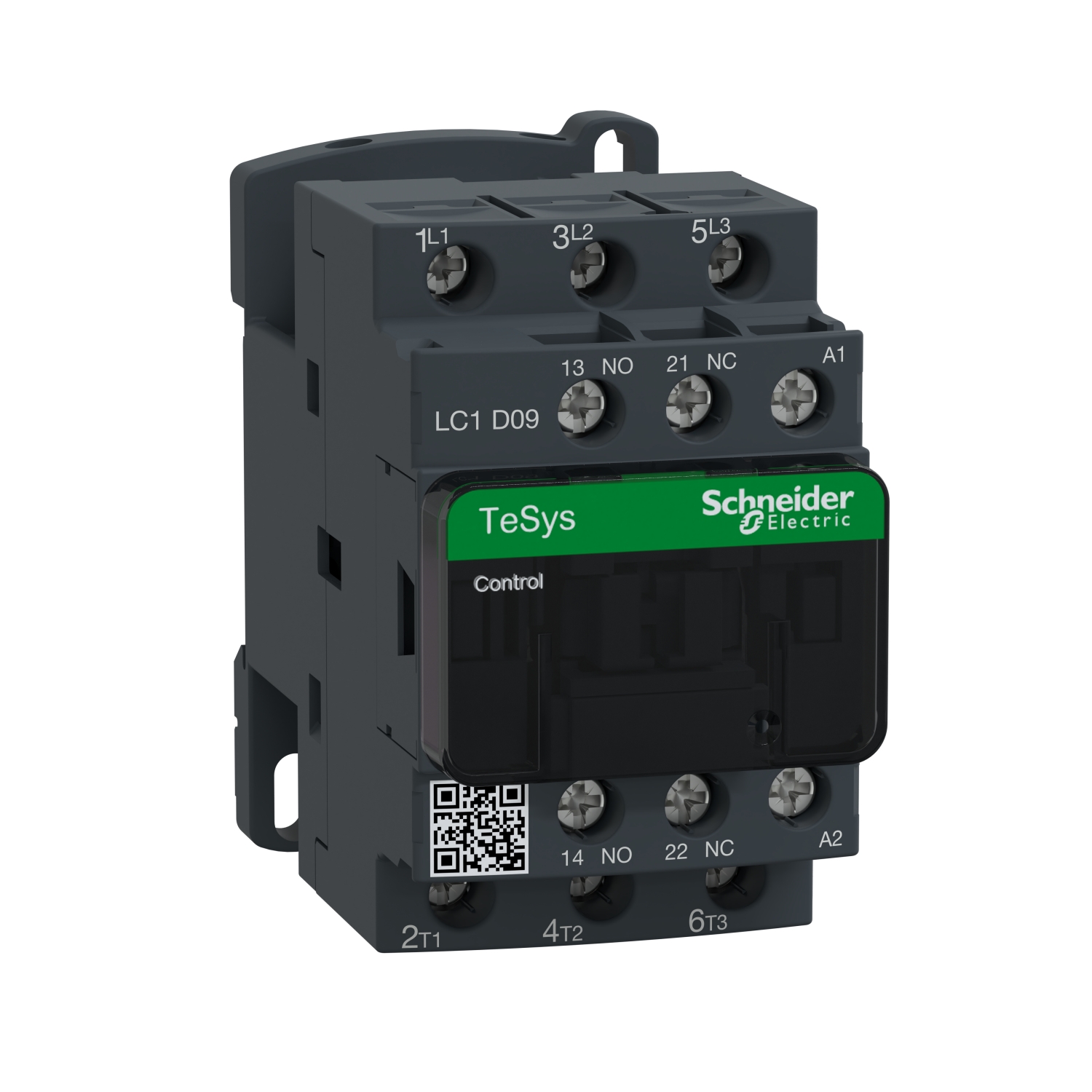

product or component type | Contactor |
device short name | LC1D |
contactor application | Motor control Resistive load |
poles description | 3P |
[Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC |
[Ie] rated operational current | 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
pole contact composition | 3 NO |
contact compatibility | M2 |
protective cover | With |
auxiliary contact composition | 1 NO + 1 NC |
[Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
overvoltage category | III |
rated breaking capacity | 250 A at 440 V for power circuit conforming to IEC 60947 |
control circuit type | AC at 50/60 Hz |
coil technology | Without built-in suppressor module |
