Allen Bradley PowerFlex 40P Drives Product Selection
Oct 17,2022 | simplybuy industrial
PowerFlex 40P Drives
| Drive Ratings | IP20/NEMA Type Open | IP20 Flange Mount(1) |
Plate Drive | ||||
| Input Voltage | kW | HP | Output Current |
Catalog Number | Frame Size |
Catalog Number | Catalog Number |
| 240V 50/60 Hz 3-Phase No Filter |
0.4 | 0.5 | 2.3A | 22D-B2P3N104 | B | 22D-B2P3F104 | 22D-B2P3H204 |
| 0.75 | 1.0 | 5.0A | 22D-B5P0N104 | B | 22D-B5P0F104 | 22D-B5P0H204 | |
| 1.5 | 2.0 | 8.0A | 22D-B8P0N104 | B | 22D-B8P0F104 | 22D-B8P0H204 | |
| 2.2 | 3.0 | 12.0A | 22D-B012N104 | B | 22D-B012F104 | 22D-B012H204 | |
| 3.7 | 5.0 | 17.5A | 22D-B017N104 | B | 22D-B017F104 | 22D-B017H204 | |
| 5.5 | 7.5 | 24.0A | 22D-B024N104 | C | 22D-B024F104 | 22D-B024H204 | |
| 7.5 | 10.0 | 33.0A | 22D-B033N104 | C | 22D-B033F104 | 22D-B033H204 | |
| 480V 50/60 Hz 3-Phase No Filter |
0.4 | 0.5 | 1.4A | 22D-D1P4N104 | B | 22D-D1P4F104 | 22D-D1P4H204 |
| 0.75 | 1.0 | 2.3A | 22D-D2P3N104 | B | 22D-D2P3F104 | 22D-D2P3H204 | |
| 1.5 | 2.0 | 4.0A | 22D-D4P0N104 | B | 22D-D4P0F104 | 22D-D4P0H204 | |
| 2.2 | 3.0 | 6.0A | 22D-D6P0N104 | B | 22D-D6P0F104 | 22D-D6P0H204 | |
| 4.0 | 5.0 | 10.5A | 22D-D010N104 | B | 22D-D010F104 | 22D-D010H204 | |
| 5.5 | 7.5 | 12.0A | 22D-D012N104 | C | 22D-D012F104 | 22D-D012H204 | |
| 7.5 | 10.0 | 17.0A | 22D-D017N104 | C | 22D-D017F104 | 22D-D017H204 | |
| 11.0 | 15.0 | 24.0A | 22D-D024N104 | C | 22D-D024F104 (2) | 22D-D024H204 (2) | |
| 600V 50/60 Hz 3-Phase No Filter |
0.75 | 1.0 | 1.7A | 22D-E1P7N104 | B | 22D-E1P7F104 | 22D-E1P7H204 |
| 1.5 | 2.0 | 3.0A | 22D-E3P0N104 | B | 22D-E3P0F104 | 22D-E3P0H204 | |
| 2.2 | 3.0 | 4.2A | 22D-E4P2N104 | B | 22D-E4P2F104 | 22D-E4P2H204 | |
| 4.0 | 5.0 | 6.6A | 22D-E6P6N104 | B | 22D-E6P6F104 | 22D-E6P6H204 | |
| 5.5 | 7.5 | 9.9A | 22D-E9P9N104 | C | 22D-E9P9F104 | 22D-E9P9H204 | |
| 7.5 | 10.0 | 12.0A | 22D-E012N104 | C | 22D-E012F104 | 22D-E012H204 | |
| 11.0 | 15.0 | 19.0A | 22D-E019N104 | C | 22D-E019F104 | 22D-E019H204 | |
| (1) Meets IP40/54/65 (NEMA 1/12/4/4X) when installed in an enclosure of like rating. (2) Requires use of external DC Bus Inductor or AC Line Reactor. |
|||||||

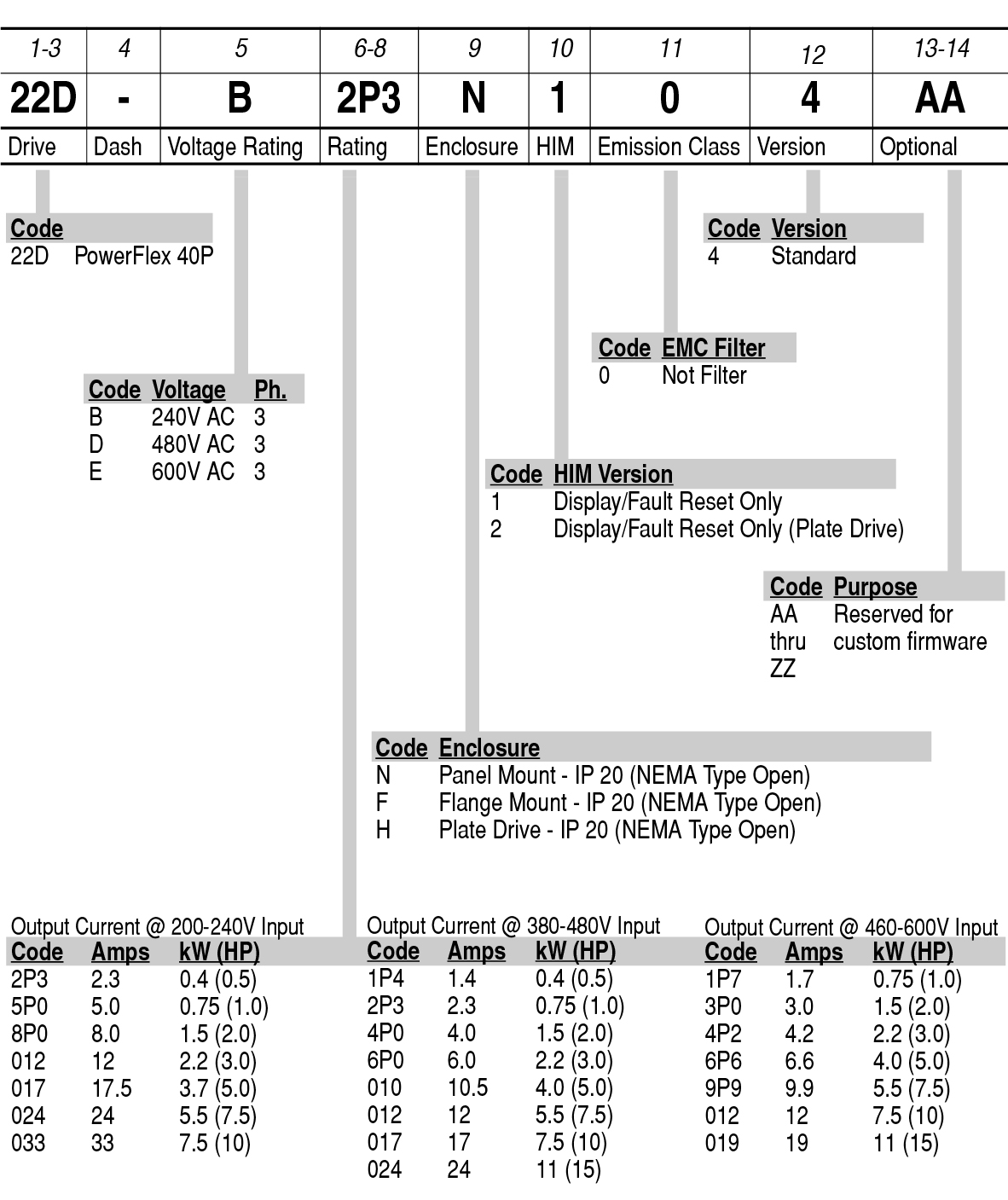

Catalog Number Description
