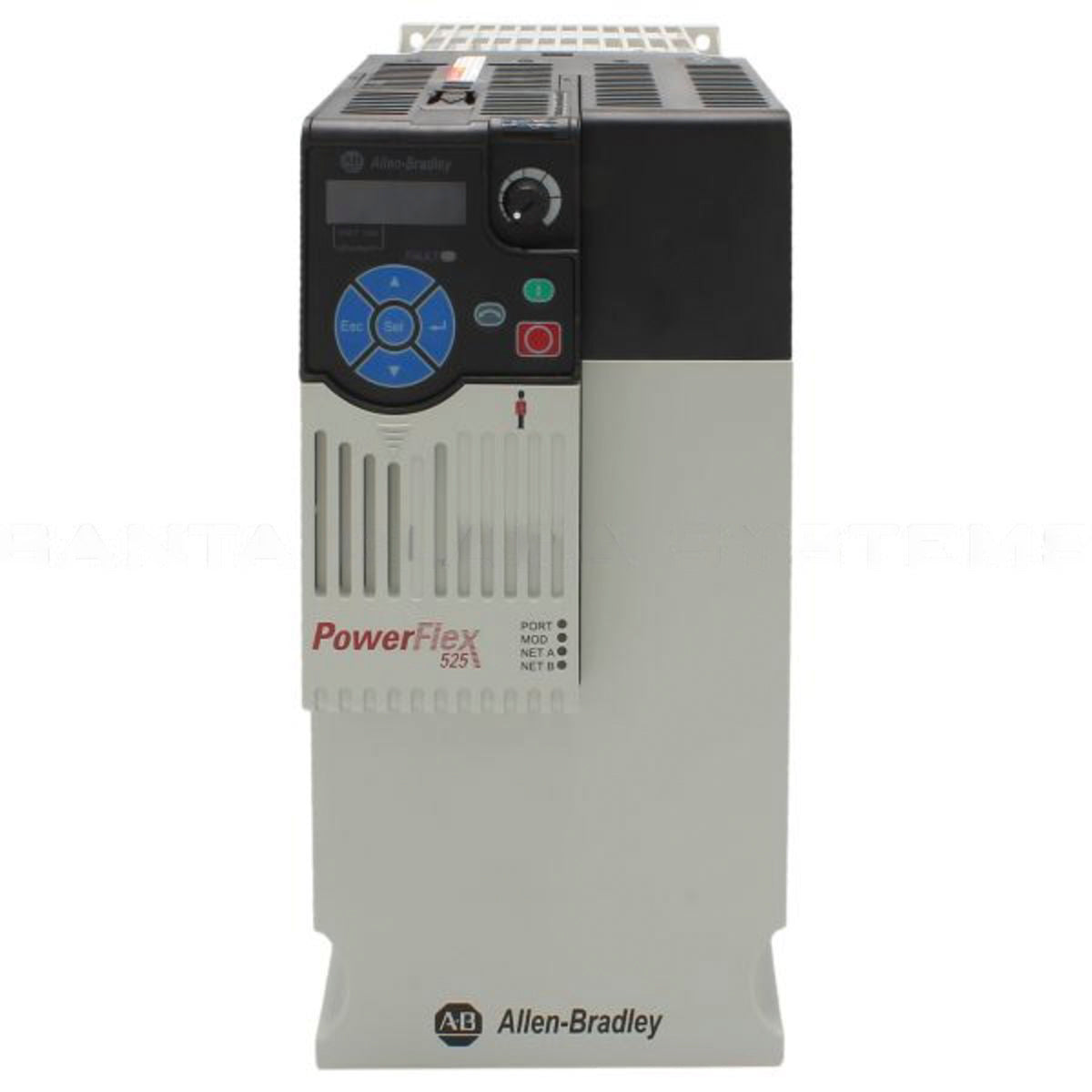

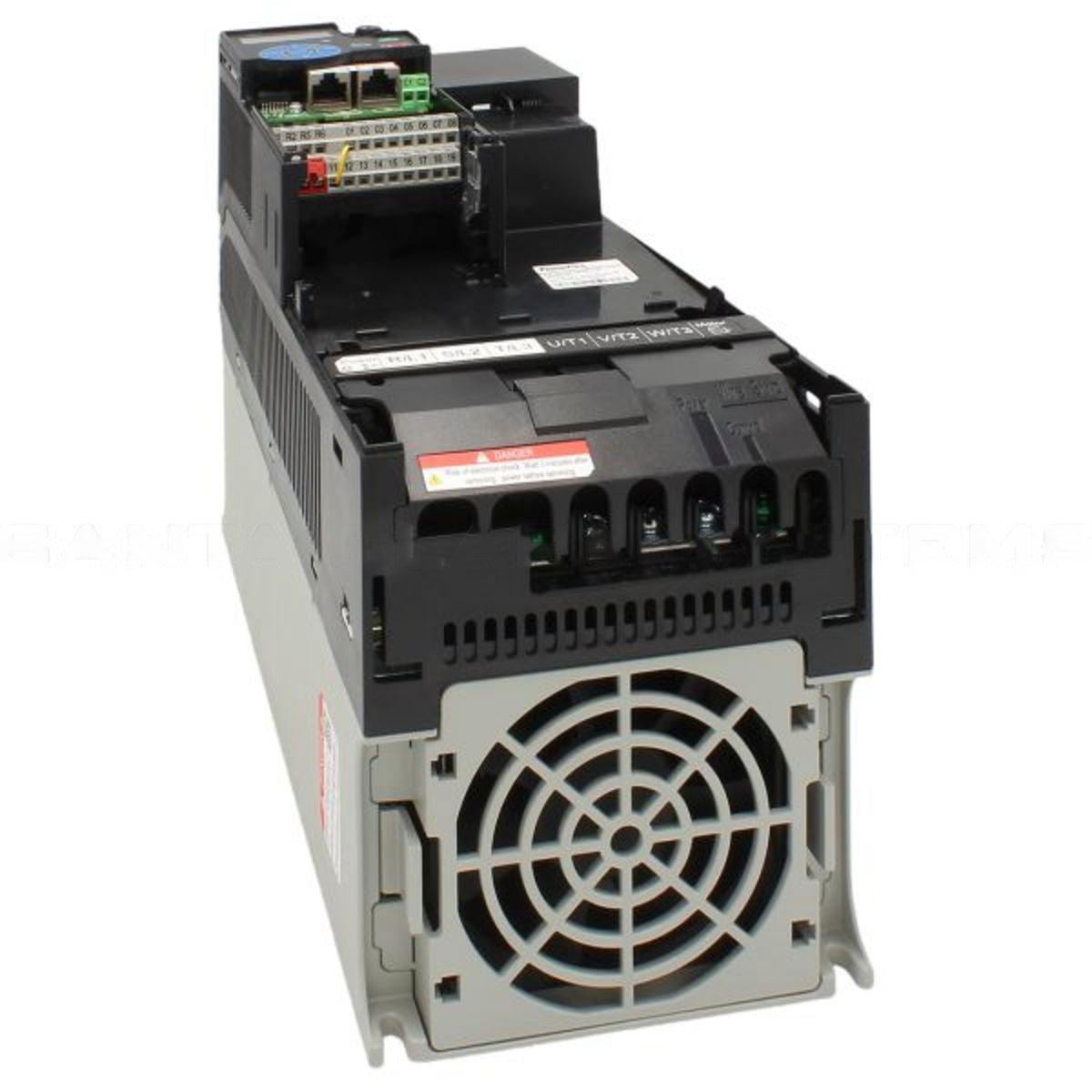

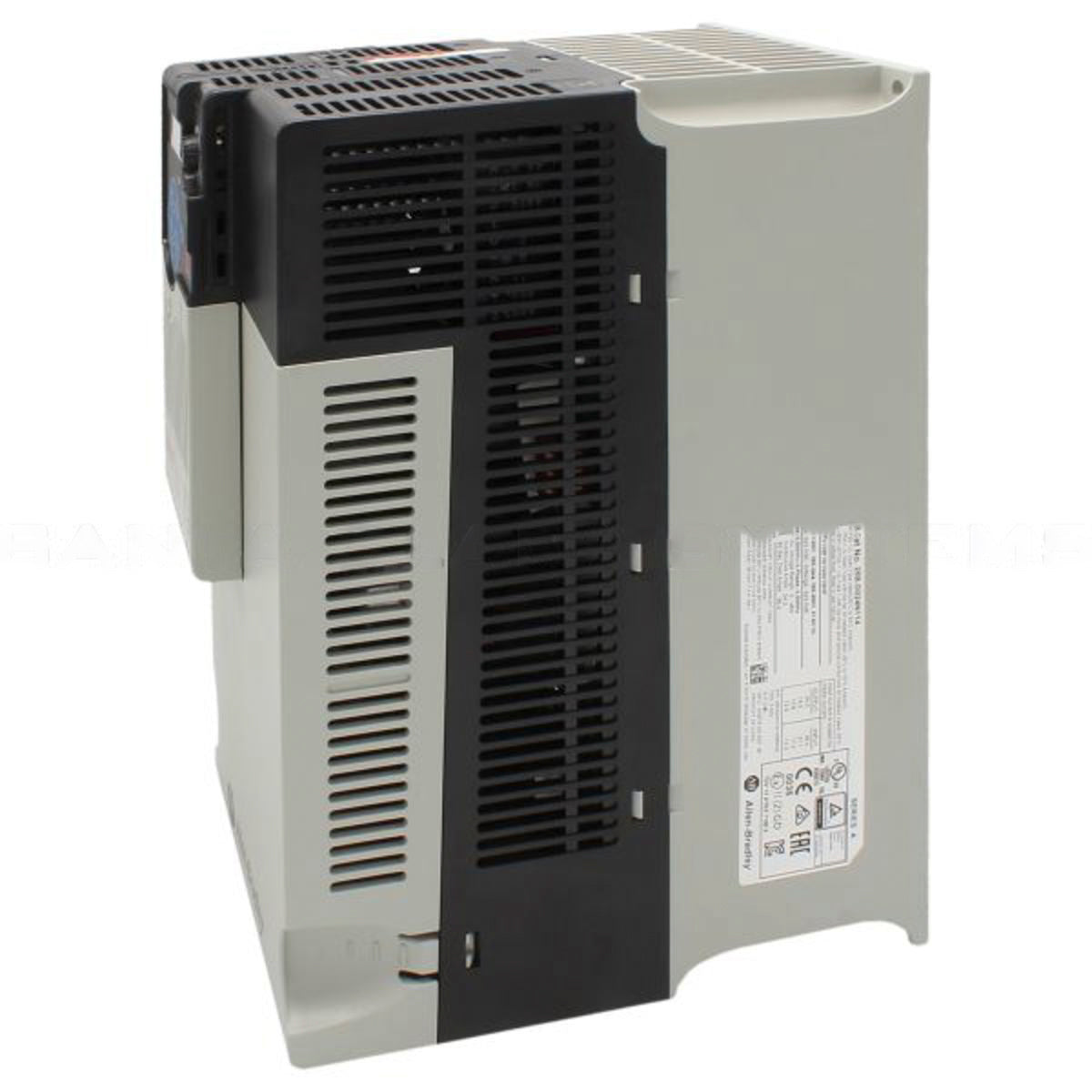

Part Number/Catalog No. |
25B-D024N114 |
Output Current |
24.0 Amperes |
Manufacturer |
Rockwell Automation / Allen-Bradley |
Product Family: |
PowerFlex 525 |
Input Voltage: |
323-528 VAC |
Input Phase: |
3-Phase |
Output Voltage: |
0-460 VAC |
Output Power: |
15.0 HP or 11.0 kW |
Embedded I/O: |
Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
Installation: |
Panel Mount |
Enclosure Rating: |
IP20 / NEMA UL Open Type |
Frame: |
D |
Control Method: |
Volts / Hertz, Sensorless Vector Control (SVC), Closed Loop Velocity Vector Control and Permanent Magnet Motor Control. |
Built-in communication port: |
Ethernet; RS485 |
Optional communication protocols: |
ProfiBus; Dual-Ethernet; DeviceNet; |
Integrated Safety: |
Safe-Torque Off (STO) functionality |
Human Interface Module (HIM): |
Yes; Standard HIM |
Compatible Controllers: |
CompactLogix; GuardLogix; ControlLogix |
Voltage |
Three Phase, 480 VAC |
Enclosure Type |
IP20 NEMA / Open Type |
Interface Module |
Standard |
Frame Size |
Frame D |
EMC Filtering Options |
Filter |
