Range | TeSys |
---|---|
Range of product | TeSys GV2 TeSys Deca |
Accessory / separate part category | Protection accessory |

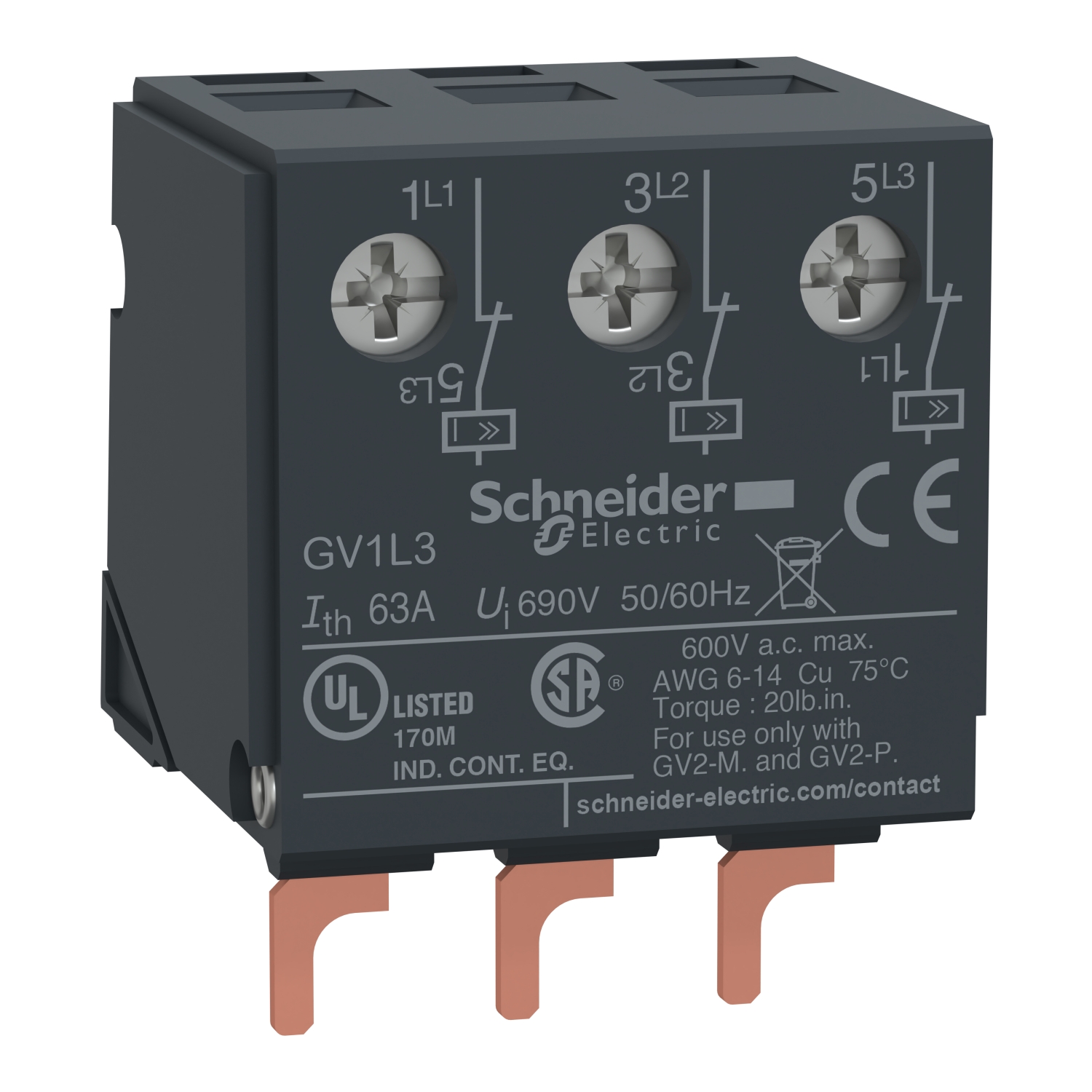

Product or component type | Current limiting module |
Range compatibility | TeSys (GV2) TeSys Deca |
Product compatibility | GV2RT GV2ME GV2P GV2L |
Function of module | Increasing the breaking capacity of a circuit breaker |
Mounting location | On top of the circuit breaker |
[Ie] rated operational current | 32 A |
[Ith] conventional free air thermal current | 63 A conforming to IEC 60947-1 |
Activation threshold | 1500 A |
Breaking capacity | <= 100 kA depending on protective device |
[Ue] rated operational voltage | 690 V AC 50/60 Hz |
[Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-1 |
